Bearing and race locations [SJ6A-El]

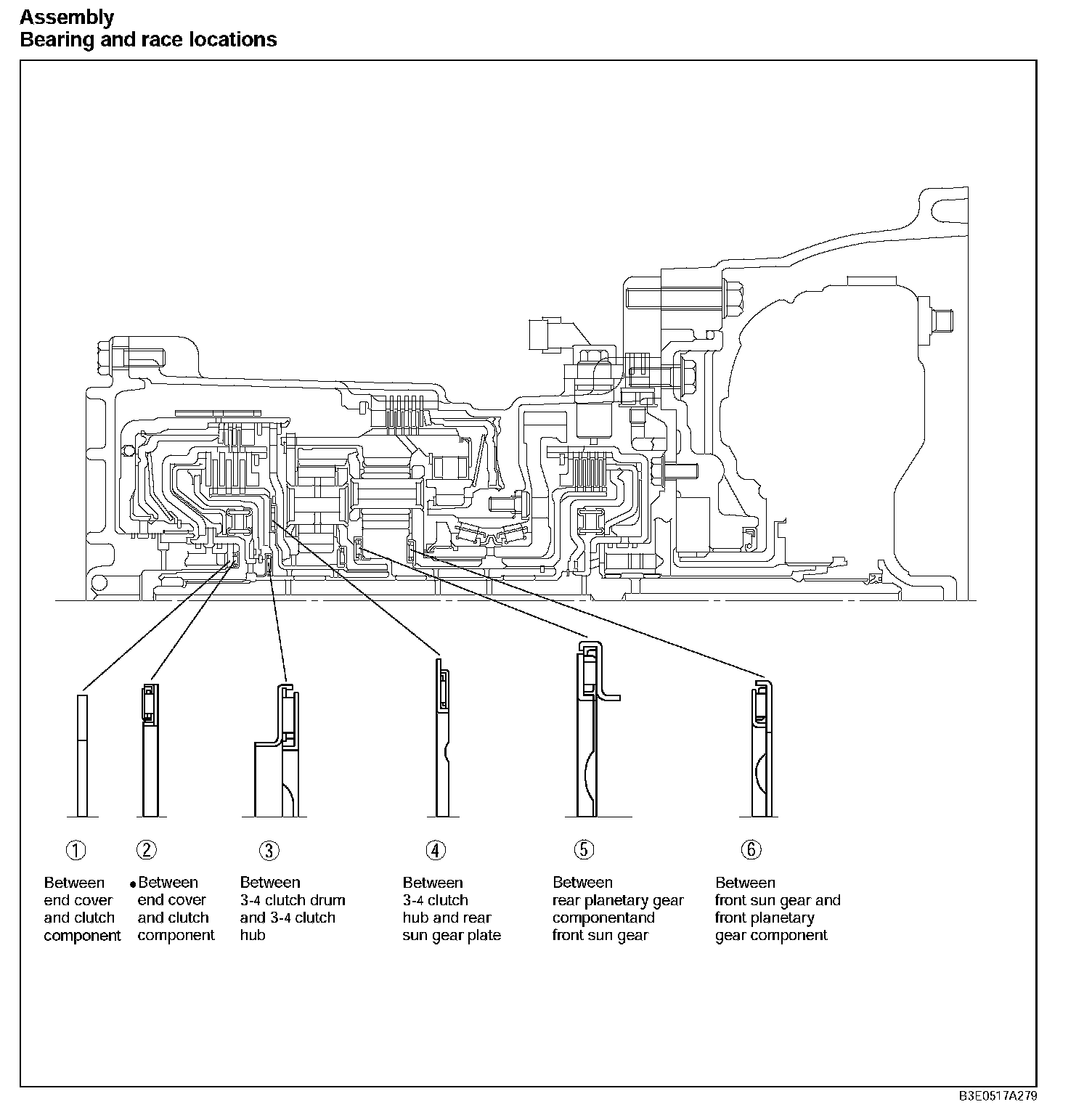

Assembly

Bearing and race locations

Assembly Bearing And Race Locations:





Note: The bearing and race at locations 2, 3, 4, 5 and 6 are one-piece units.

Outer diameter of bearing and race
