Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Connector Locations >> VIN JM1BJ22#2*#4000001 - 596252

VIN JM1BJ22#2*#4000001 - 596252

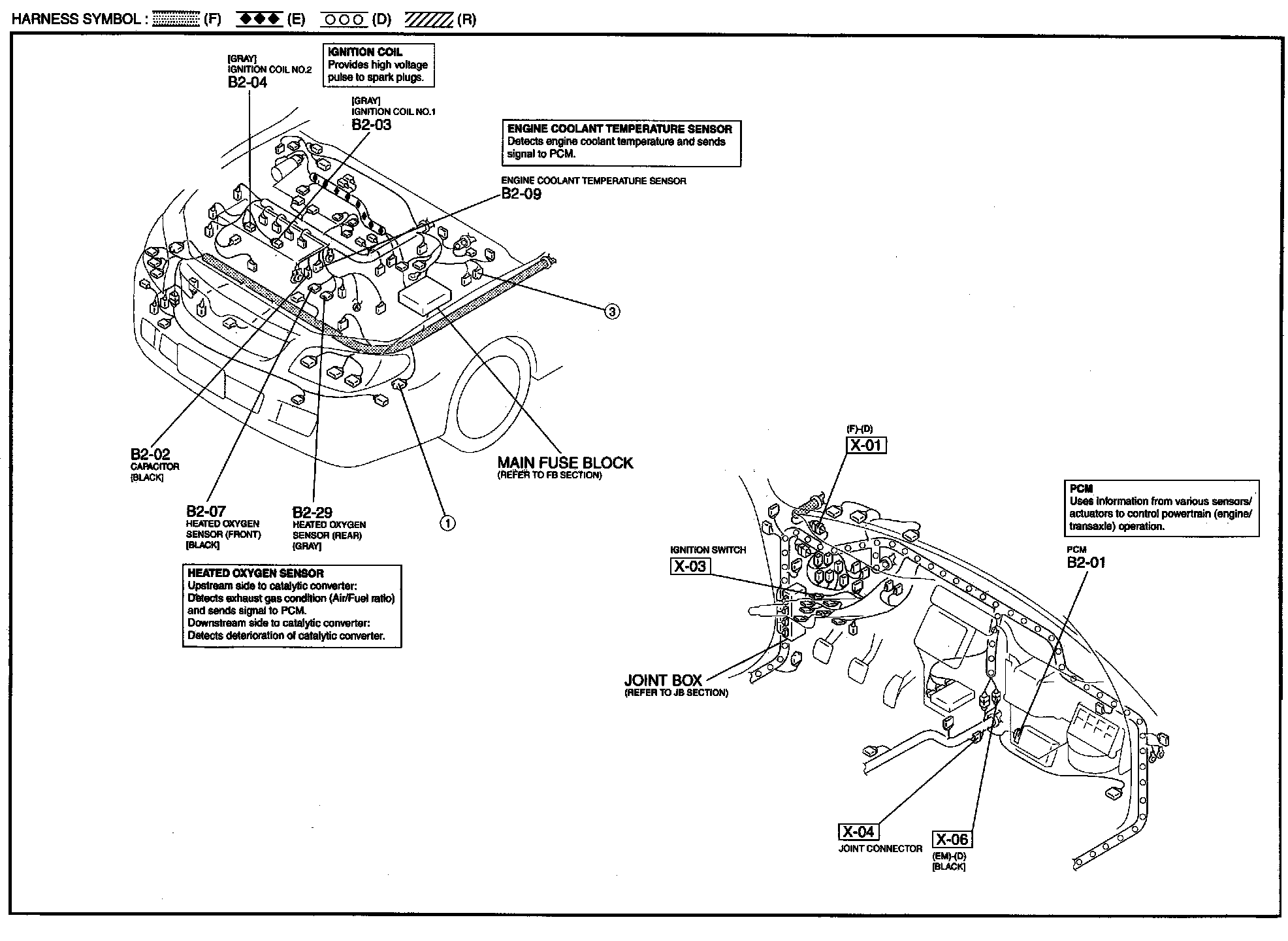

B-2a - EC-AT Control System/Engine Control System Harness/Connector Symbols:

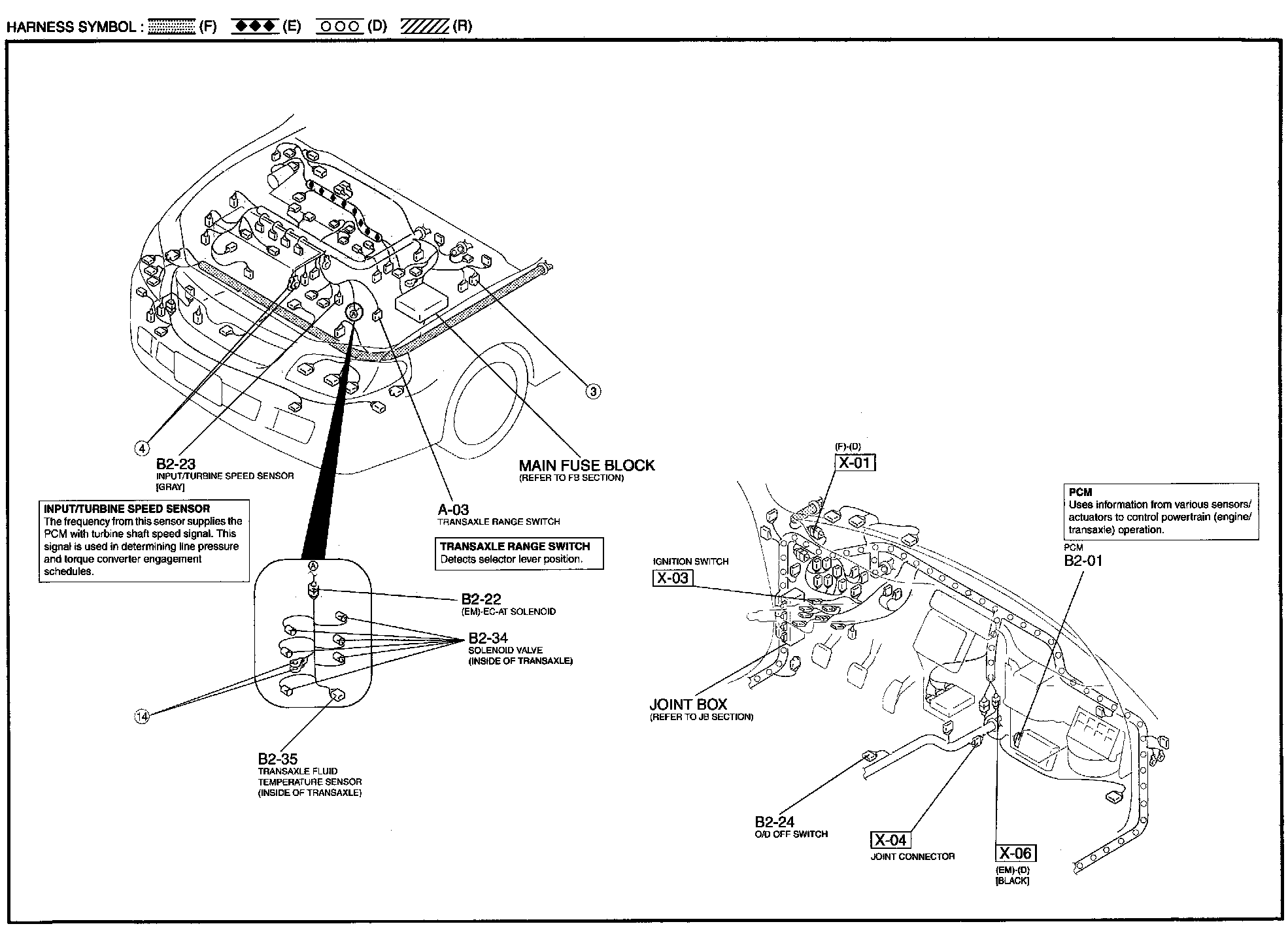

B-2b - EC-AT Control System/Engine Control System Harness/Connector Symbols:

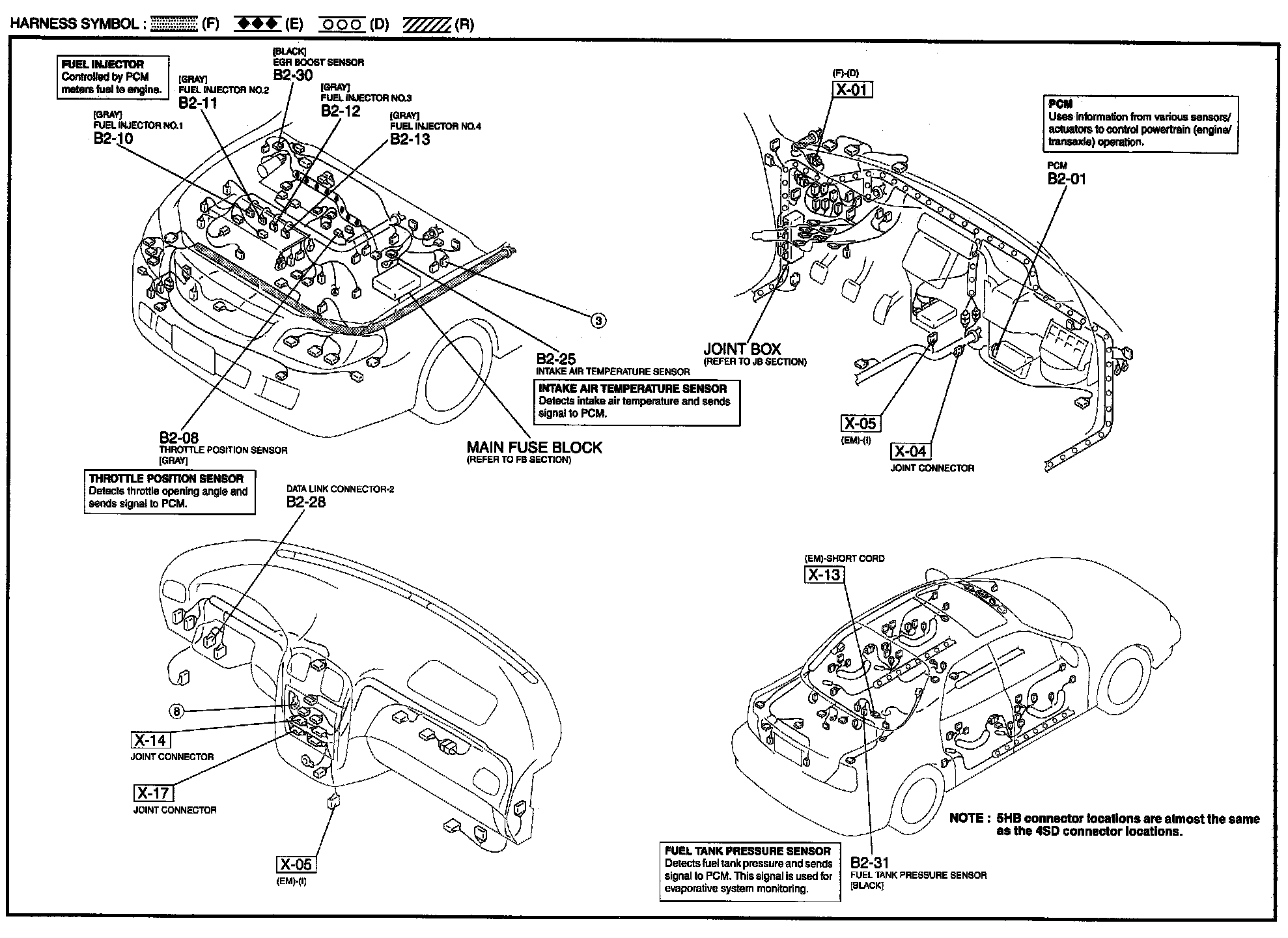

B-2c - EC-AT Control System/Engine Control System Harness/Connector Symbols:

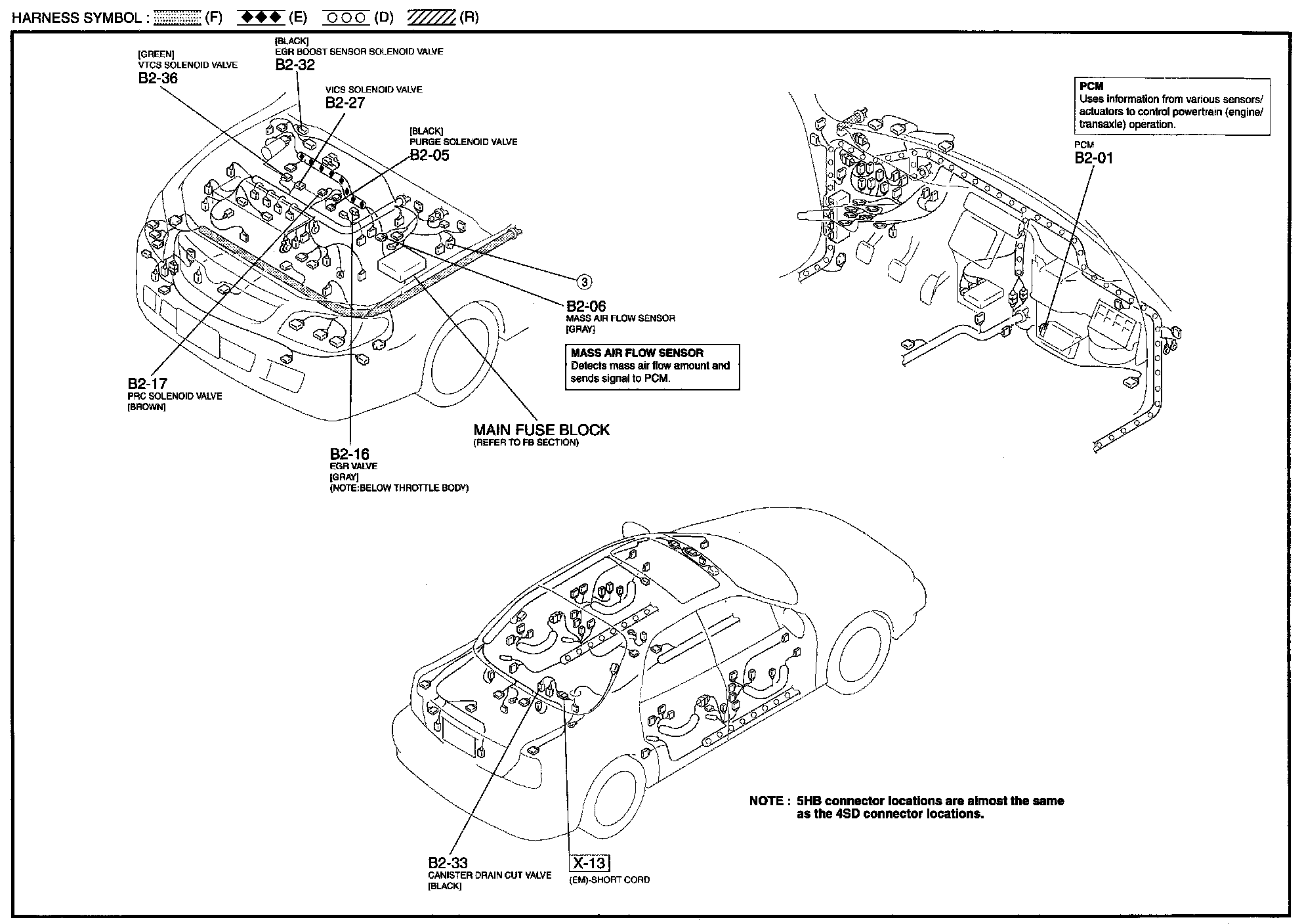

B-2d - EC-AT Control System/Engine Control System Harness/Connector Symbols:

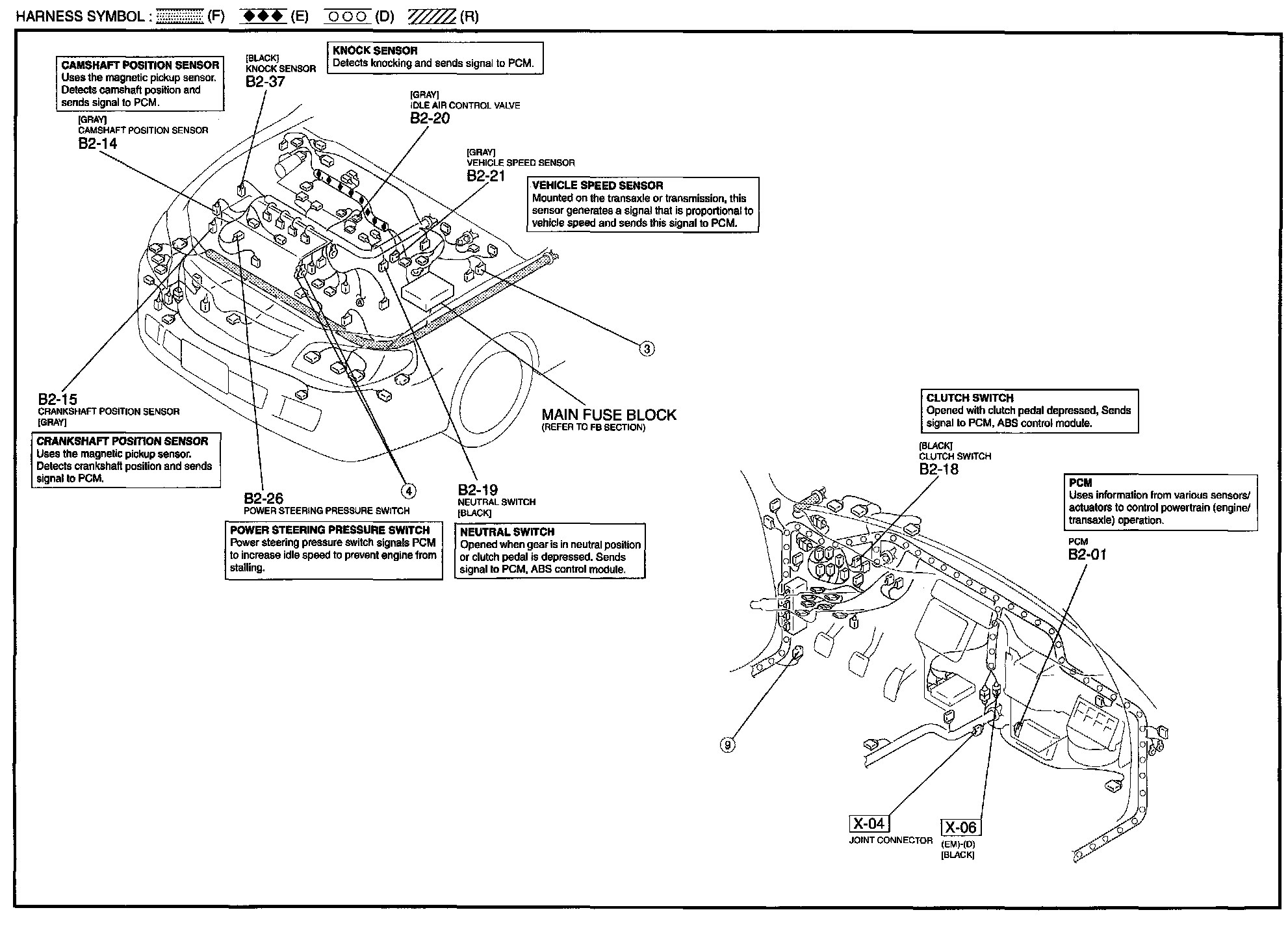

B-2e - EC-AT Control System (FS) / Engine Control System (FS) Harness/Connector Symbols:
