Rear

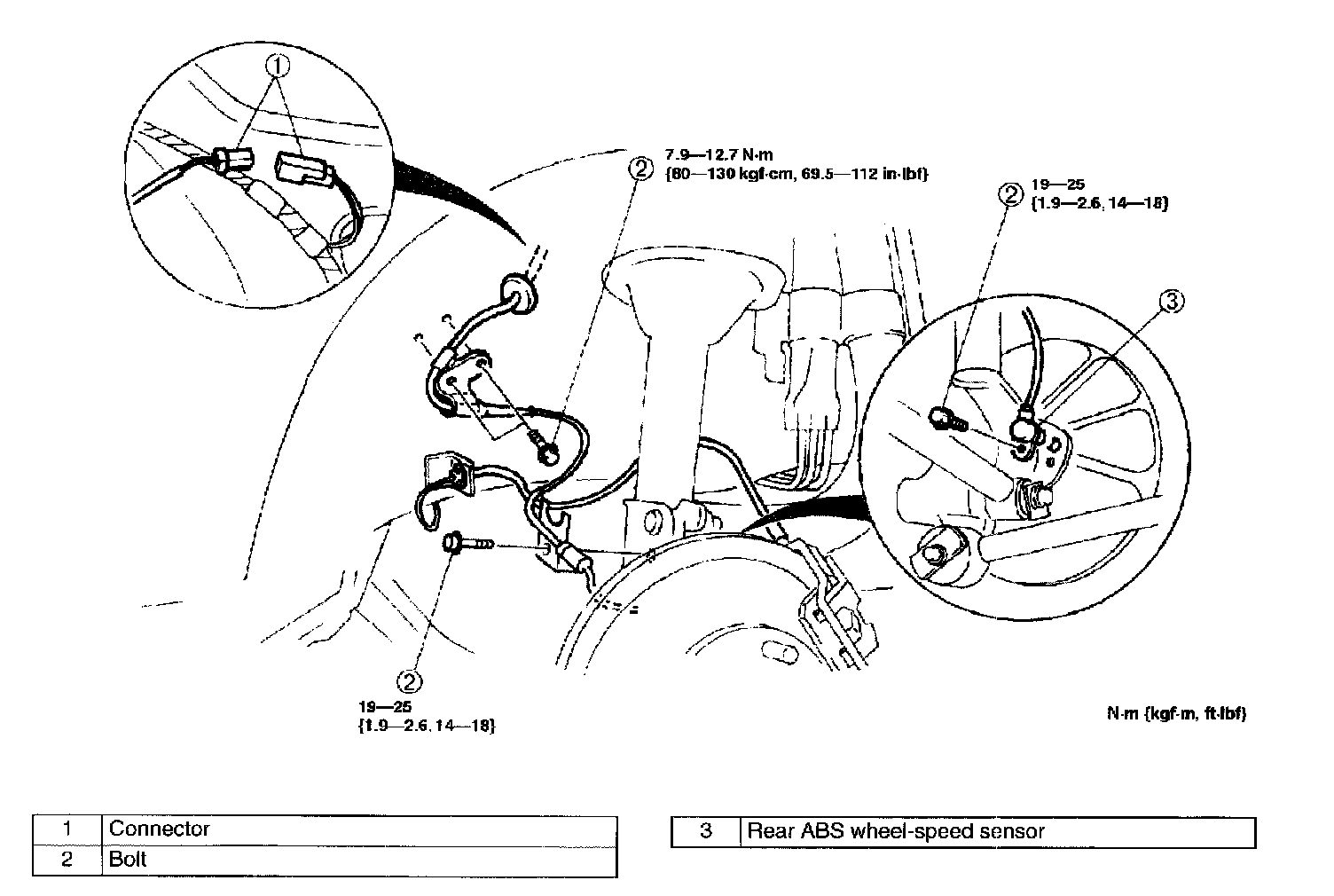

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. For 4SD, remove the rear seat back. For 5HB, remove the trunk side trim.





2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
