Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Locations >> Harness Locations >> VIN JM1BJ22#2*#4000001 - 596252 >> I-3 - Interior Light/MAP Light

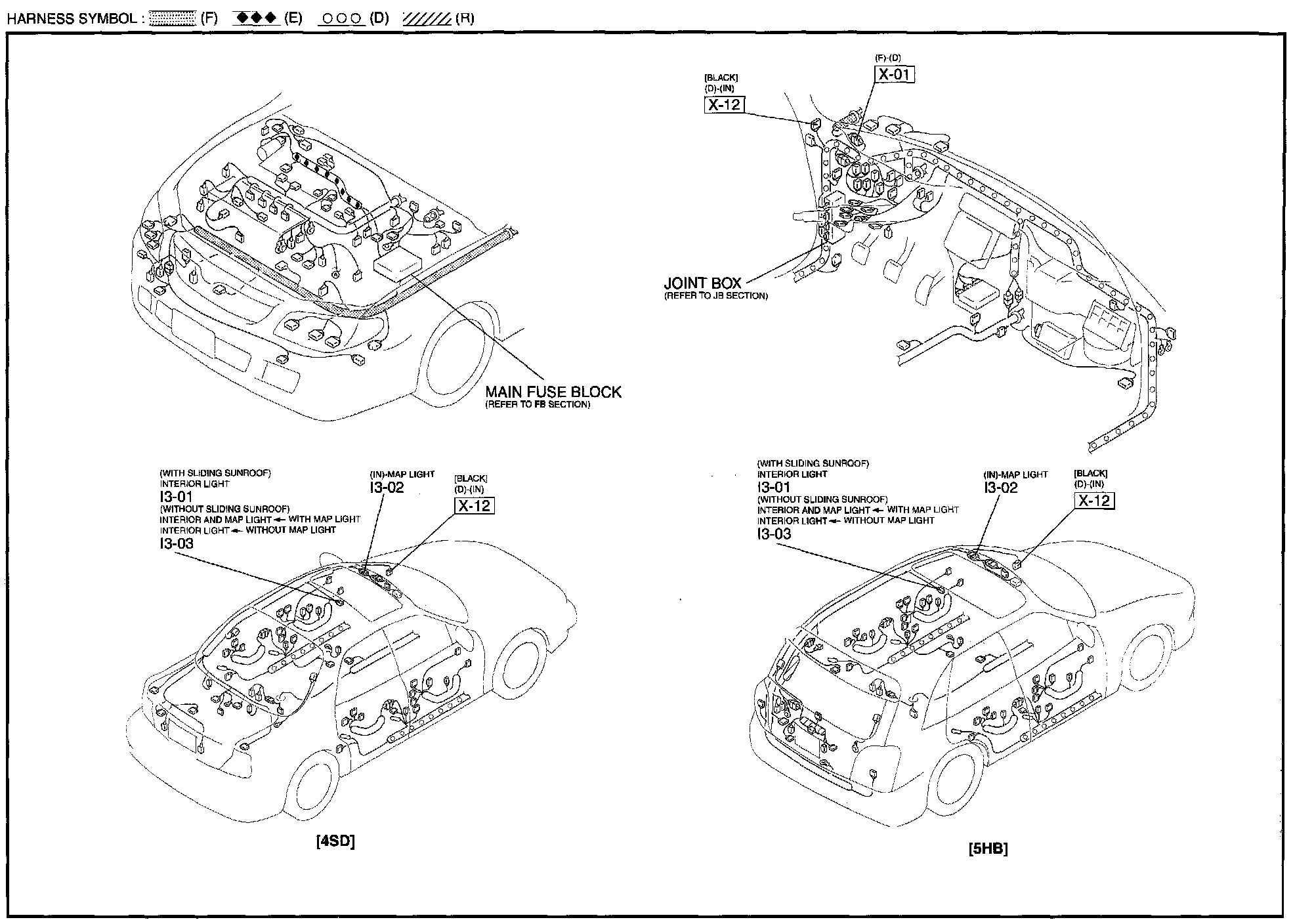

I-3 - Interior Light/MAP Light

I-3 - Interor Light/Map Light Harness/Connector Symbols:
