Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Locations >> Fuse and Fusible Link Locations >> VIN JM1BJ22#2*#596253 -

VIN JM1BJ22#2*#596253 -

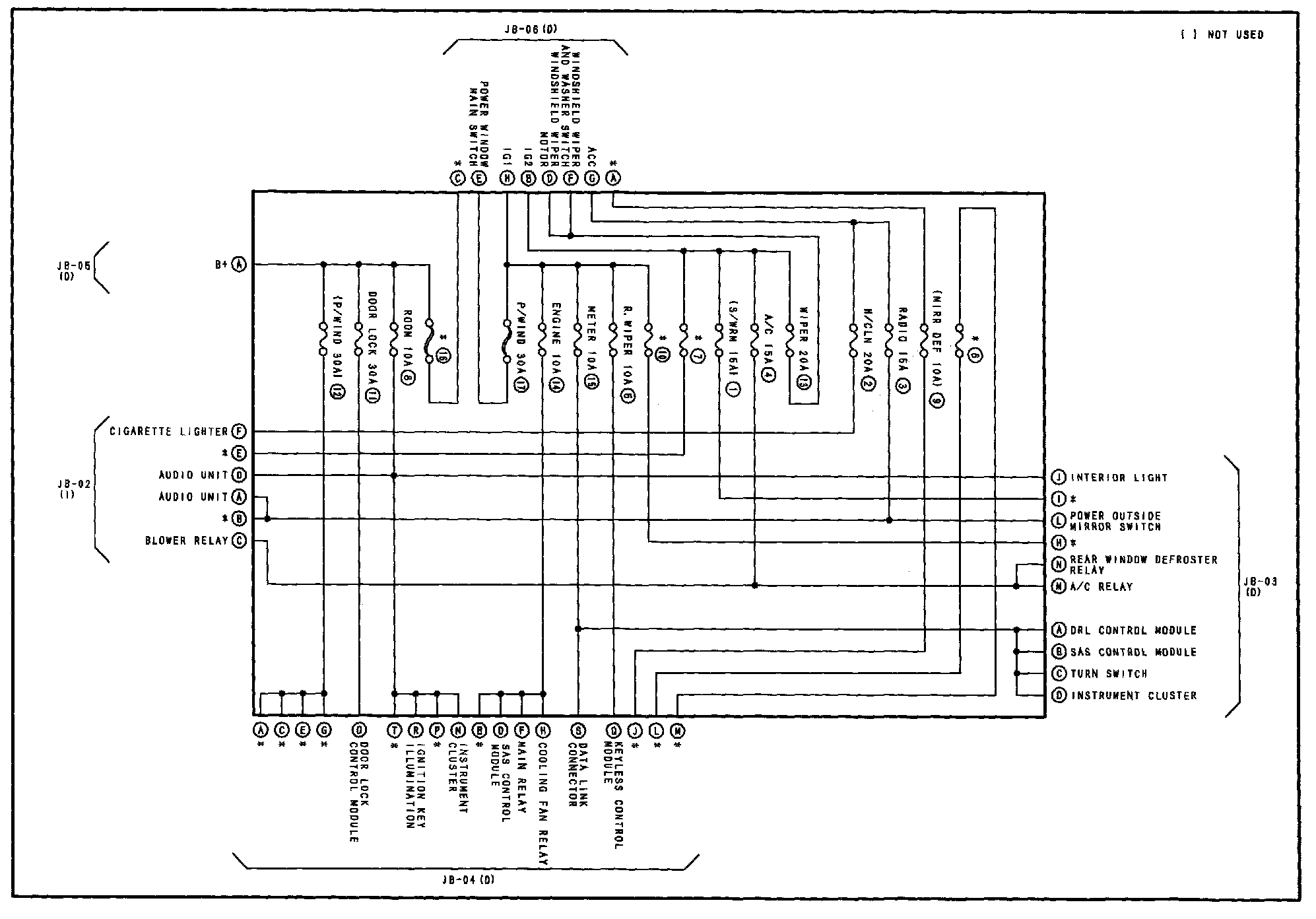

JB - Interconnecting Diagram Of Joint Box Circuit:

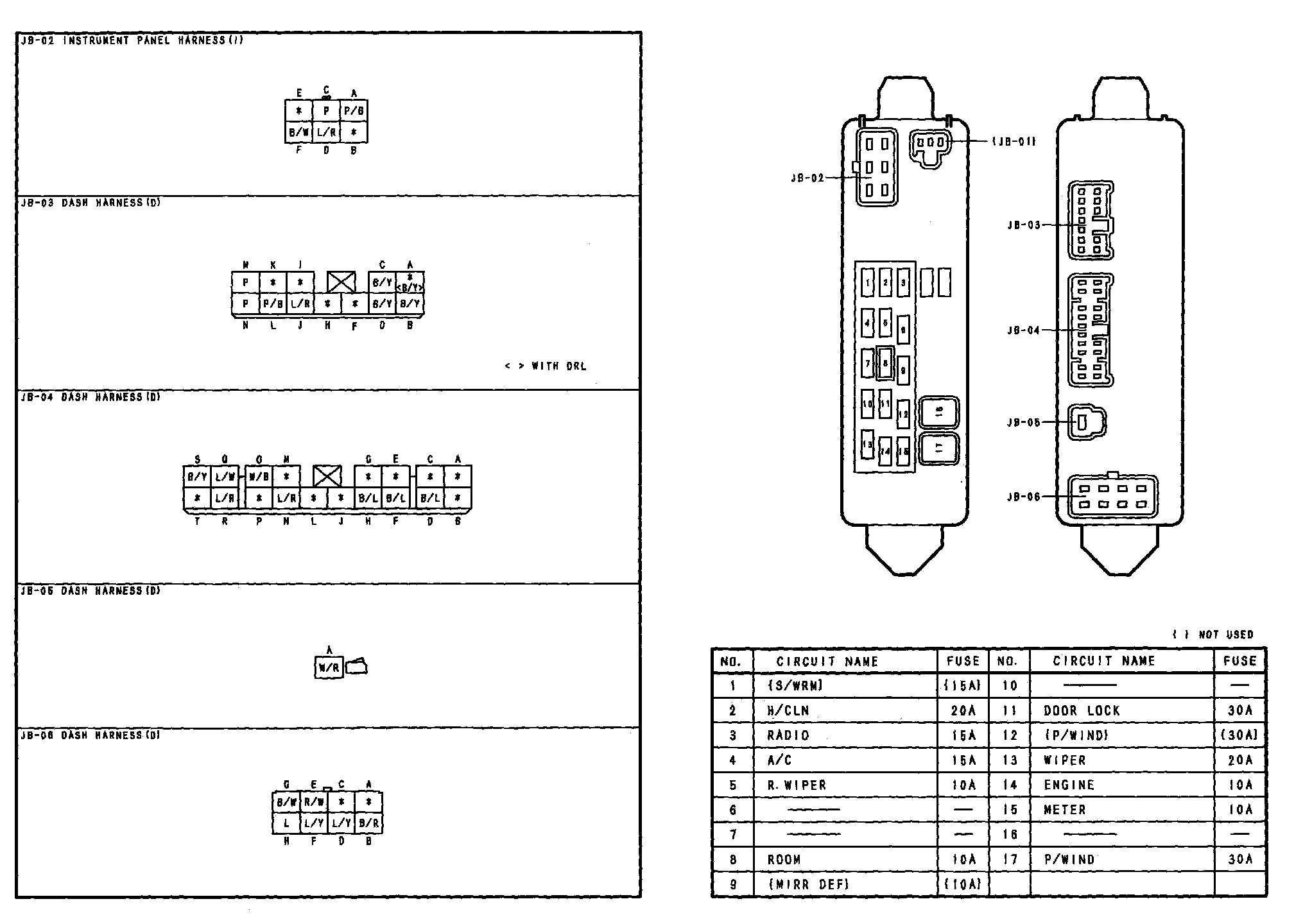

JB - Joint Box:

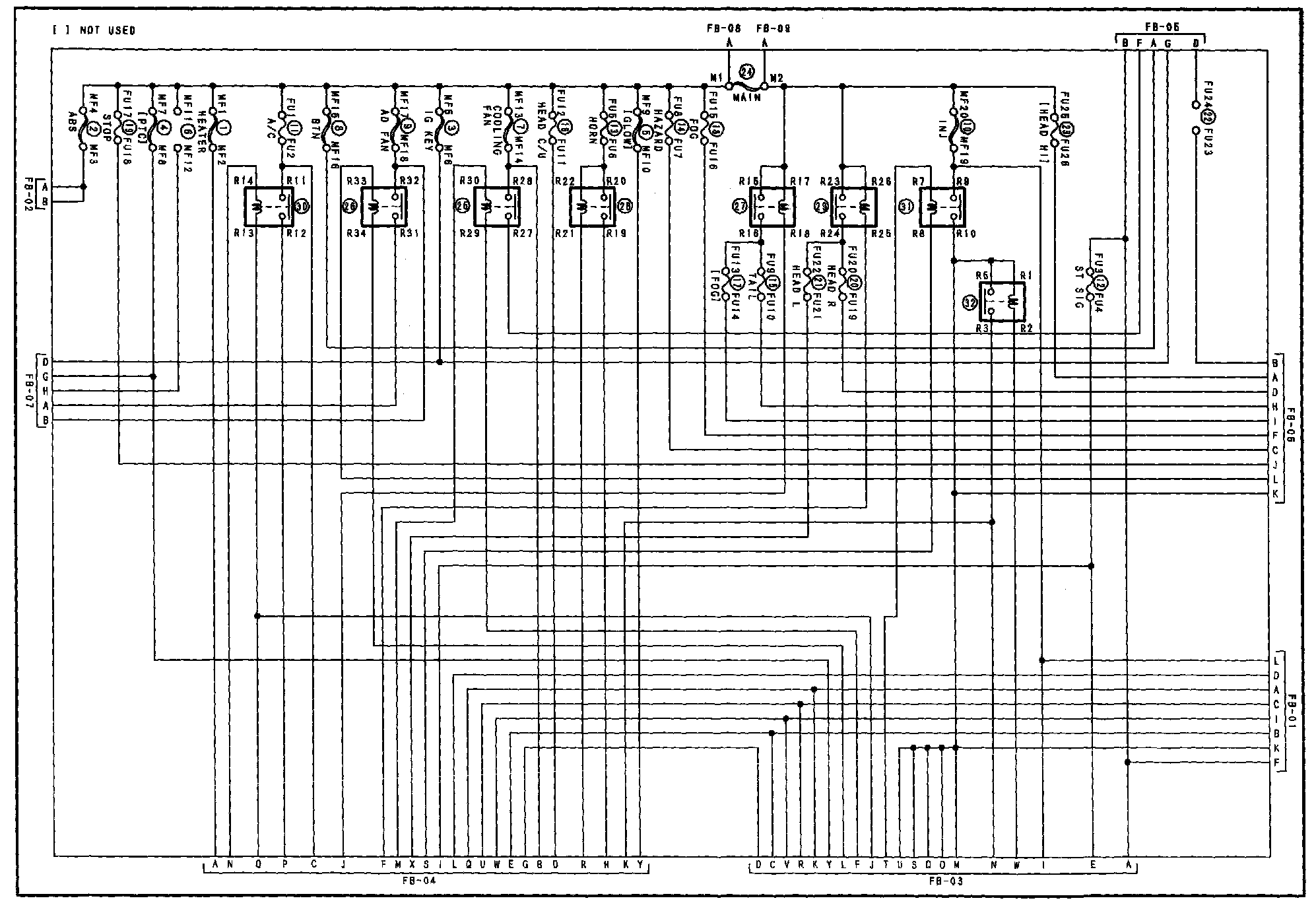

FB - Interconnecting Diagram Of Fuse Block Circuit:

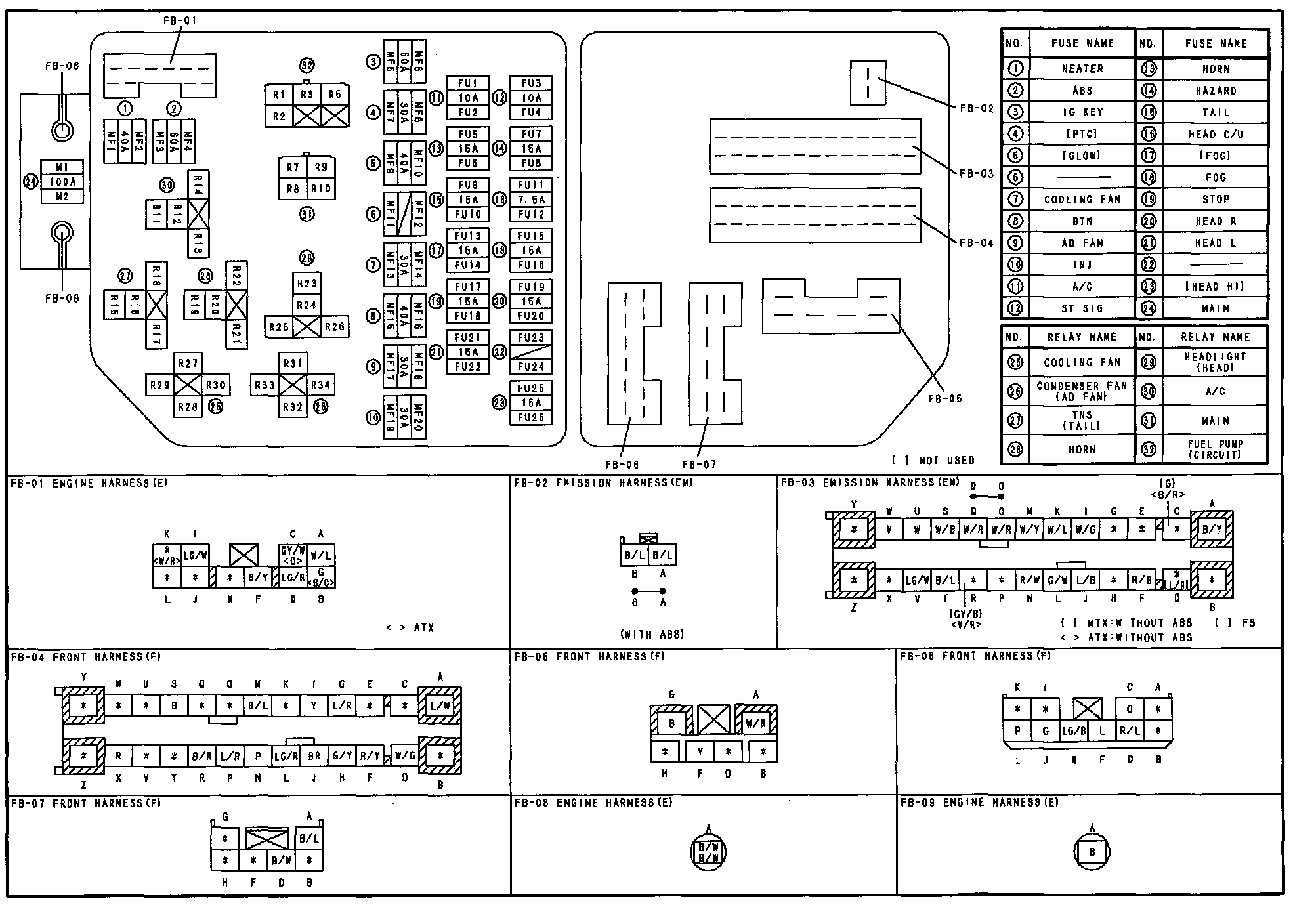

FB - Fuse Block Connectors:
