I-2a - Illumination Light

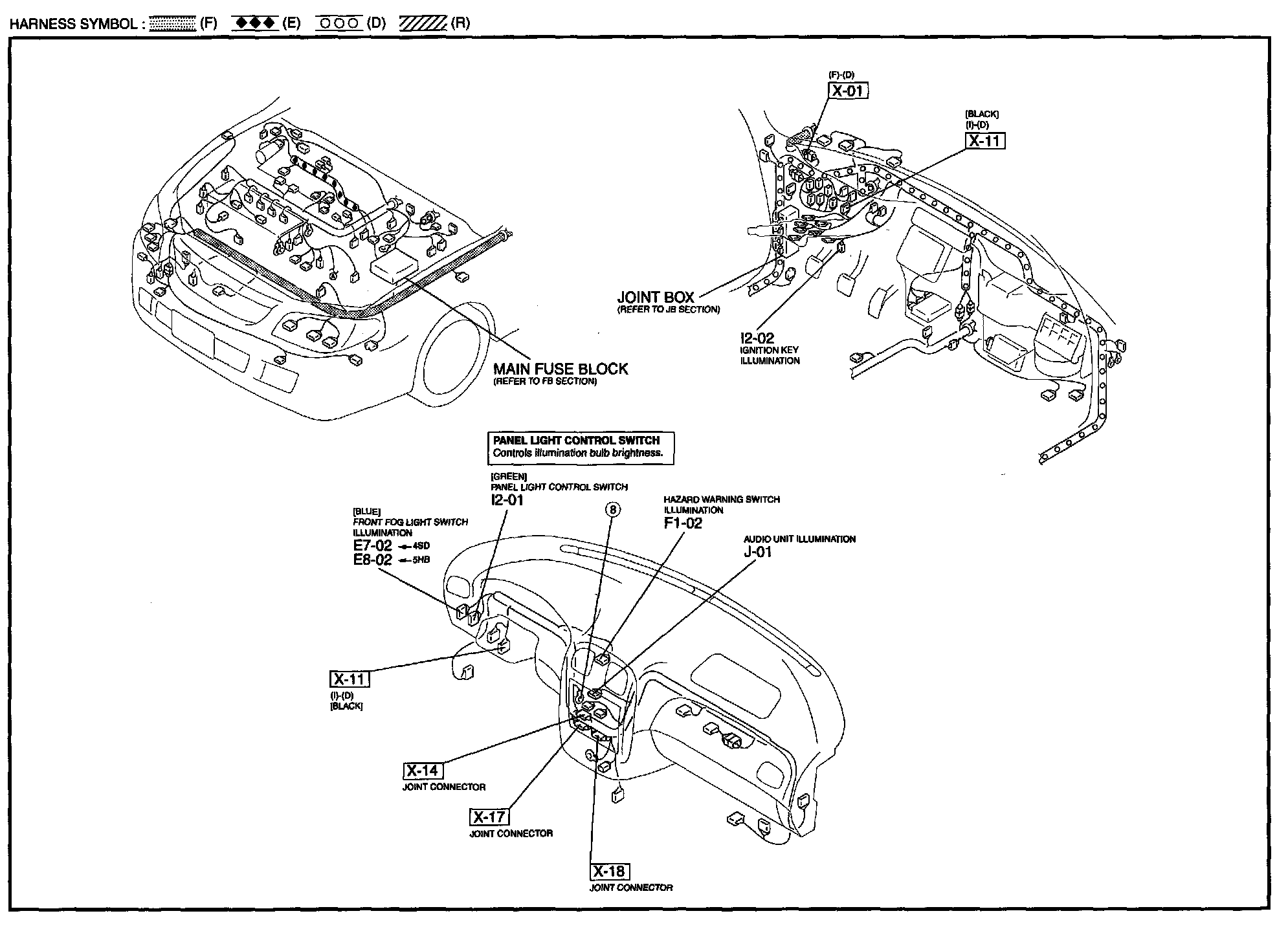

I-2a - Illumination Light Harness/Connectors Symbols:

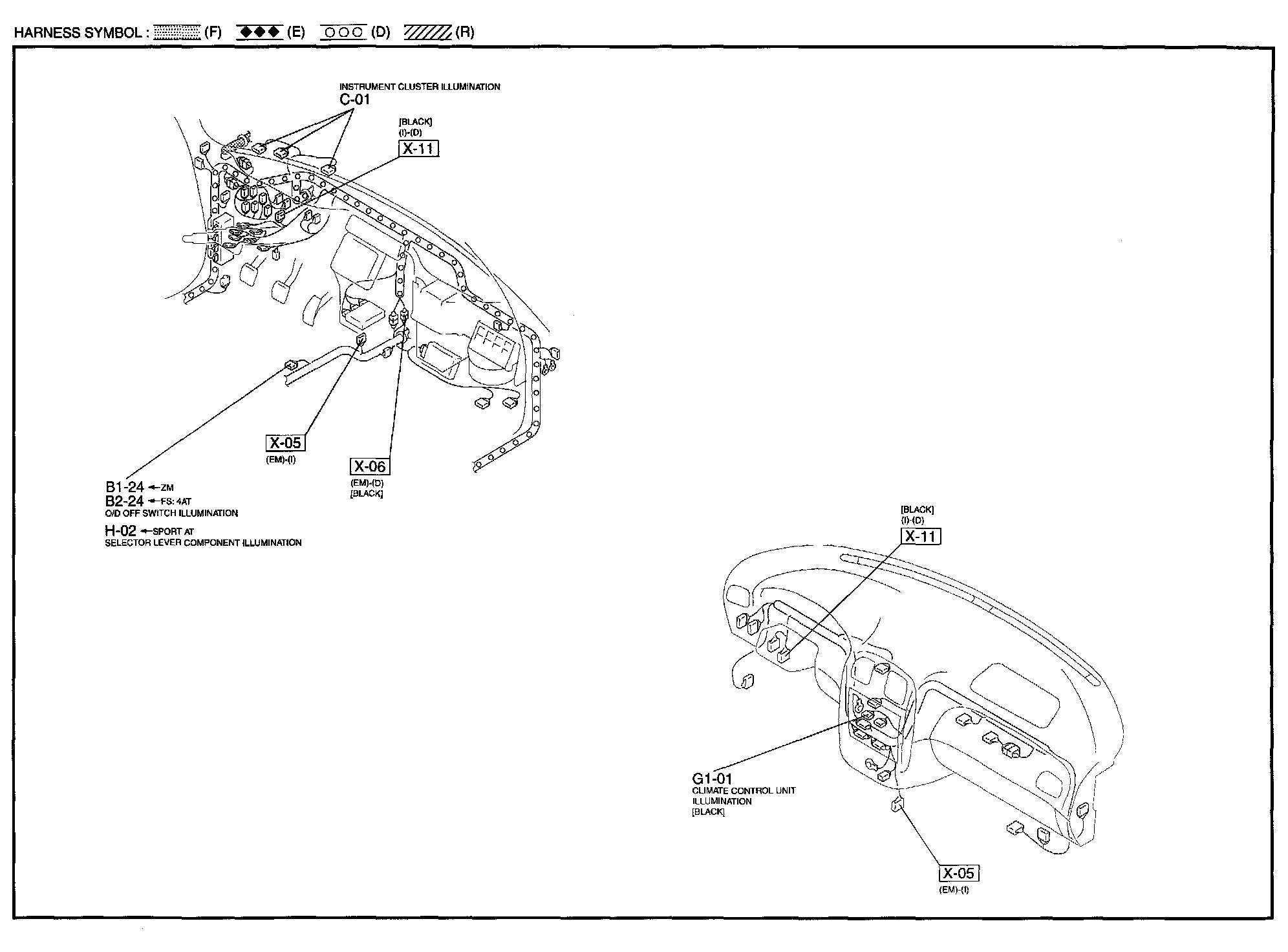

I-2b - Illumination Light Harness/Connector Symbols:
