Protege SE (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
VIN JM1BJ22#2*#596253 -
>>
I-1 - Cargo Light(5HB)/Lighter/Rear Def/Trunk Light(4SD)
I-1 - Cargo Light(5HB)/Lighter/Rear Def/Trunk Light(4SD)

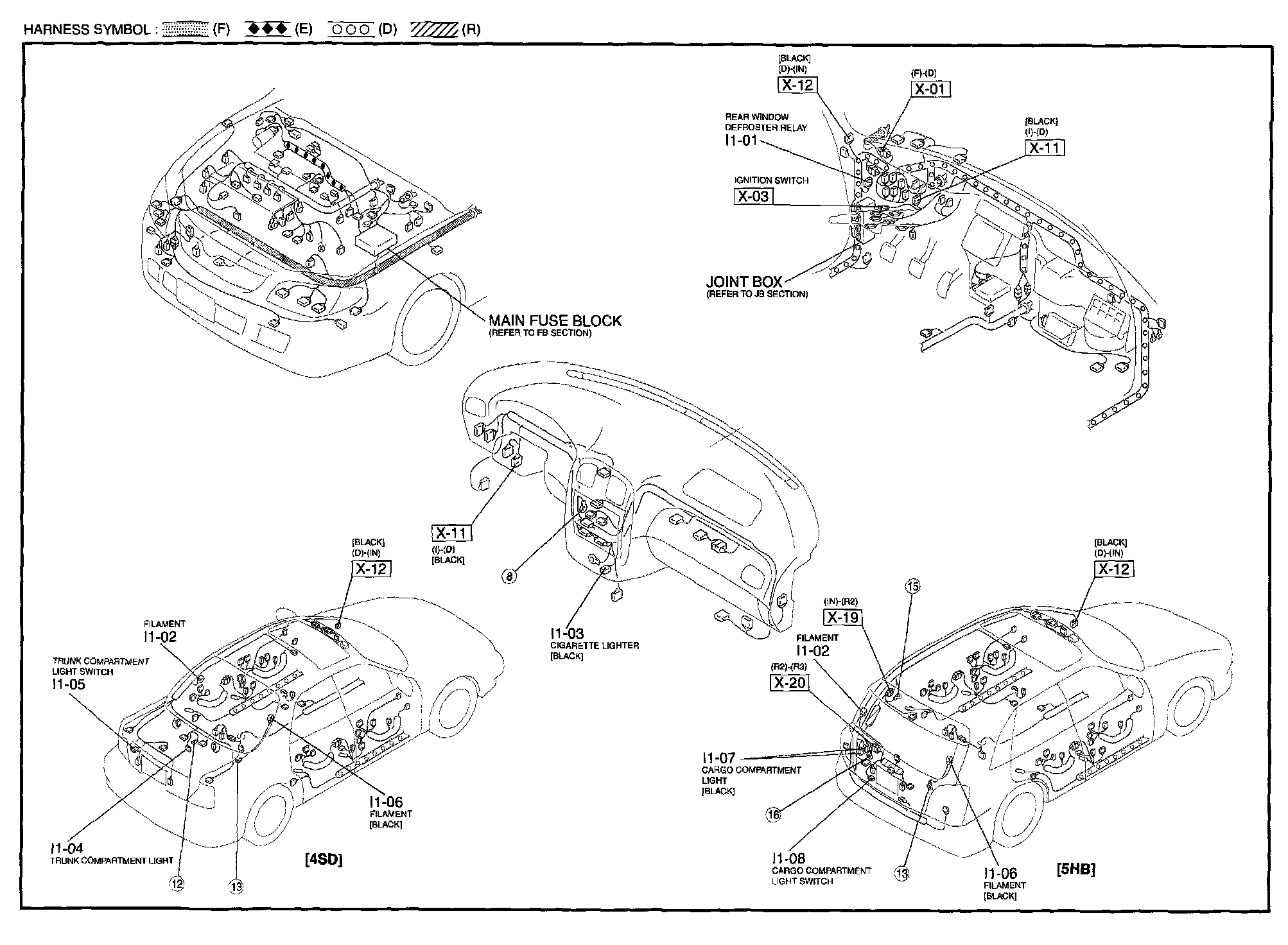

I-1 Cagro Component Light (5HB)/Cigarette Lighter/Rear Window Defroster/Trunk Compartment Light (4SD) Harness/Connector Symbols:
