Protege SE (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
VIN JM1BJ22#2*#596253 -
>>
D-1 - Windshield Wiper And Washer
D-1 - Windshield Wiper And Washer

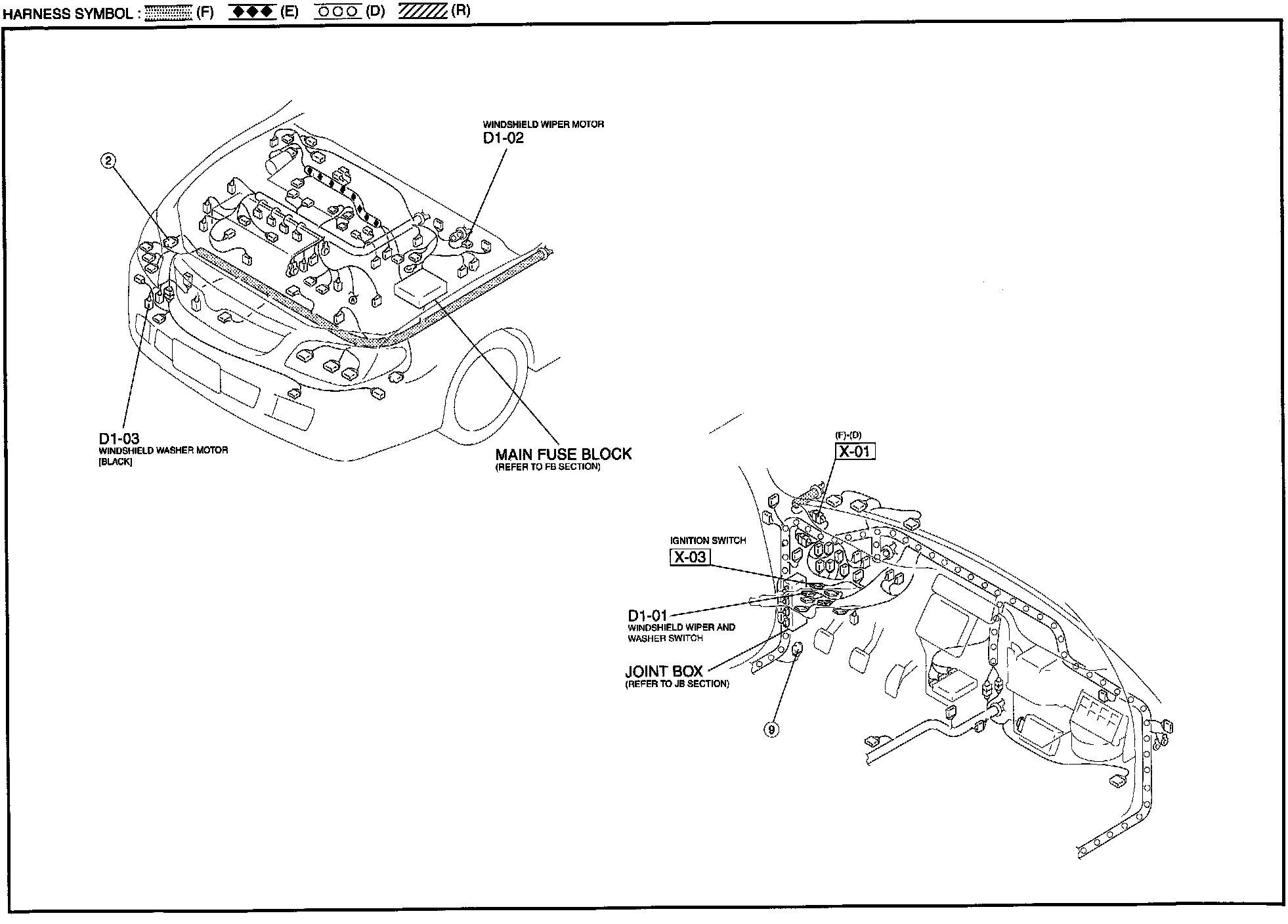

D-1 - Windshield Wiper And Washer Harness/Connector Symbols:

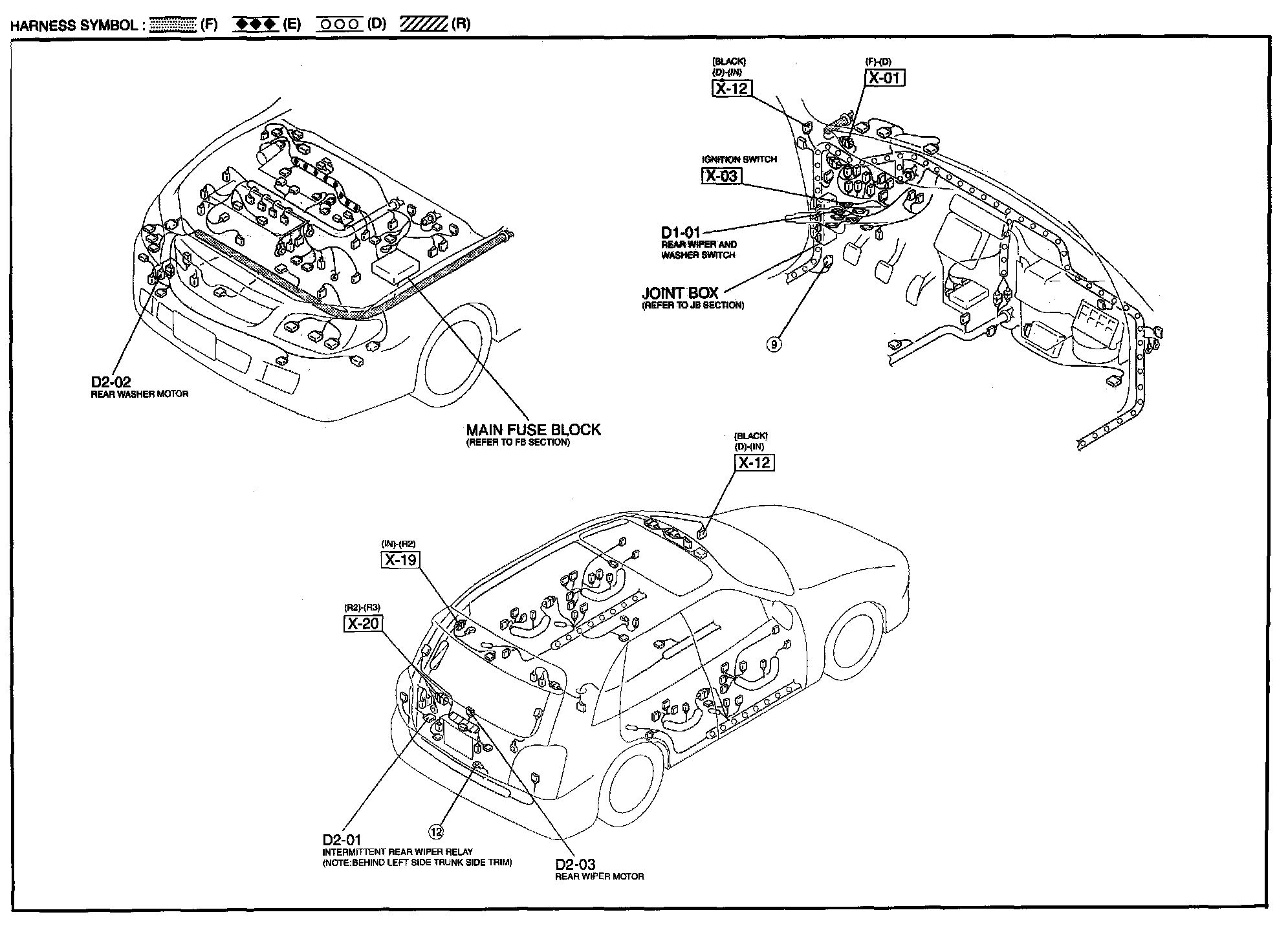

D-2 - Rear Wiper And Washer Harness/Connector Symbols:
