Mazda
>>
2002
>>
Protege SE (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
VIN JM1BJ22#2*#4000001 - 596252
>>

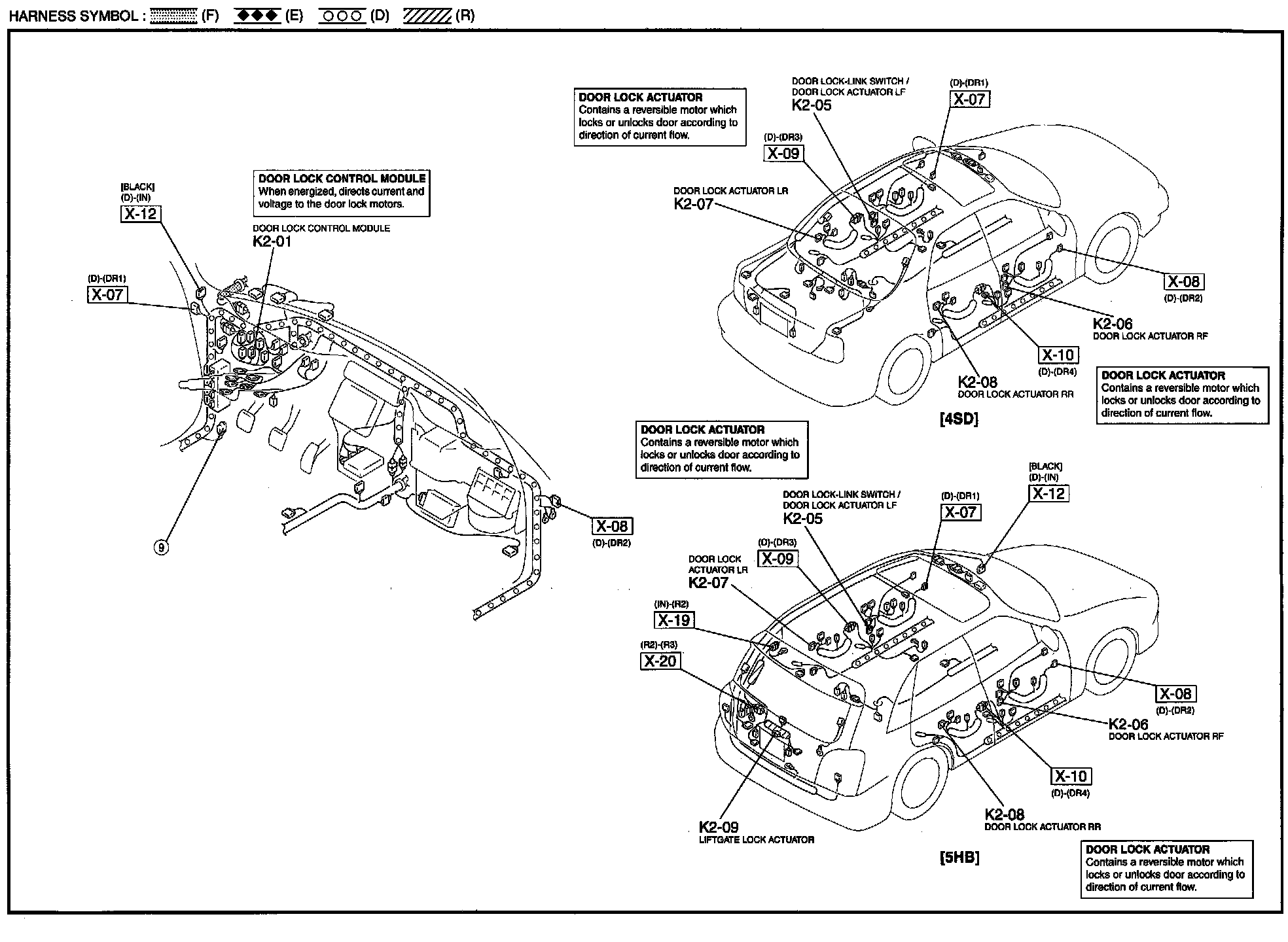

K-2b - Power Door Lock System
K-2b - Power Door Lock System
K-2b - Power Door Lock System Harness/Connector Symbols:
