Locations
>>
Connector Locations
>>
VIN JM1BJ22#2*#4000001 - 596252
>>

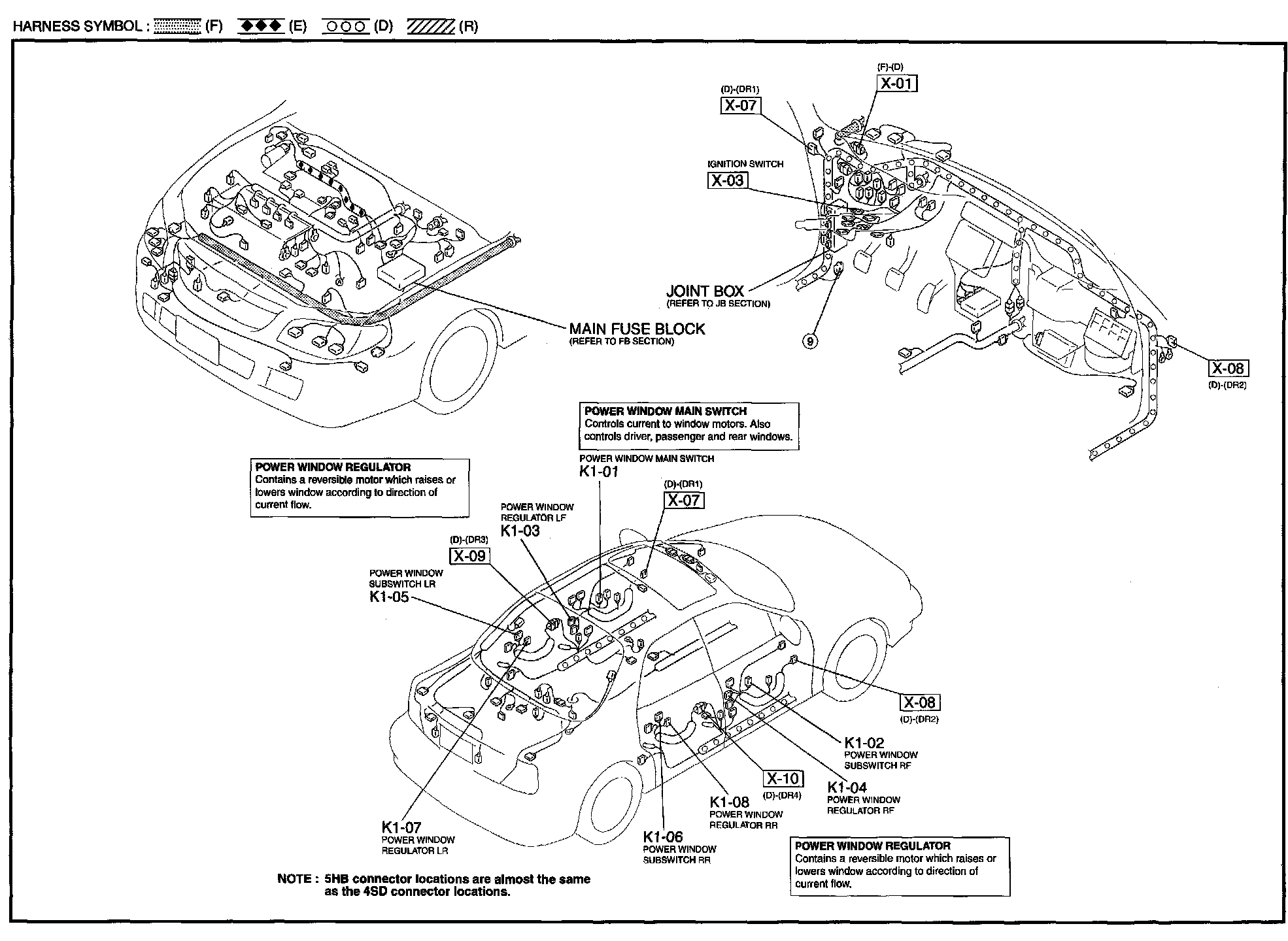

K-1 - Power Window System
K-1 - Power Window System
K-1 - Power Window System Harness/Connector Symbols:
