Protege SE (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
VIN JM1BJ22#2*#4000001 - 596252
>>

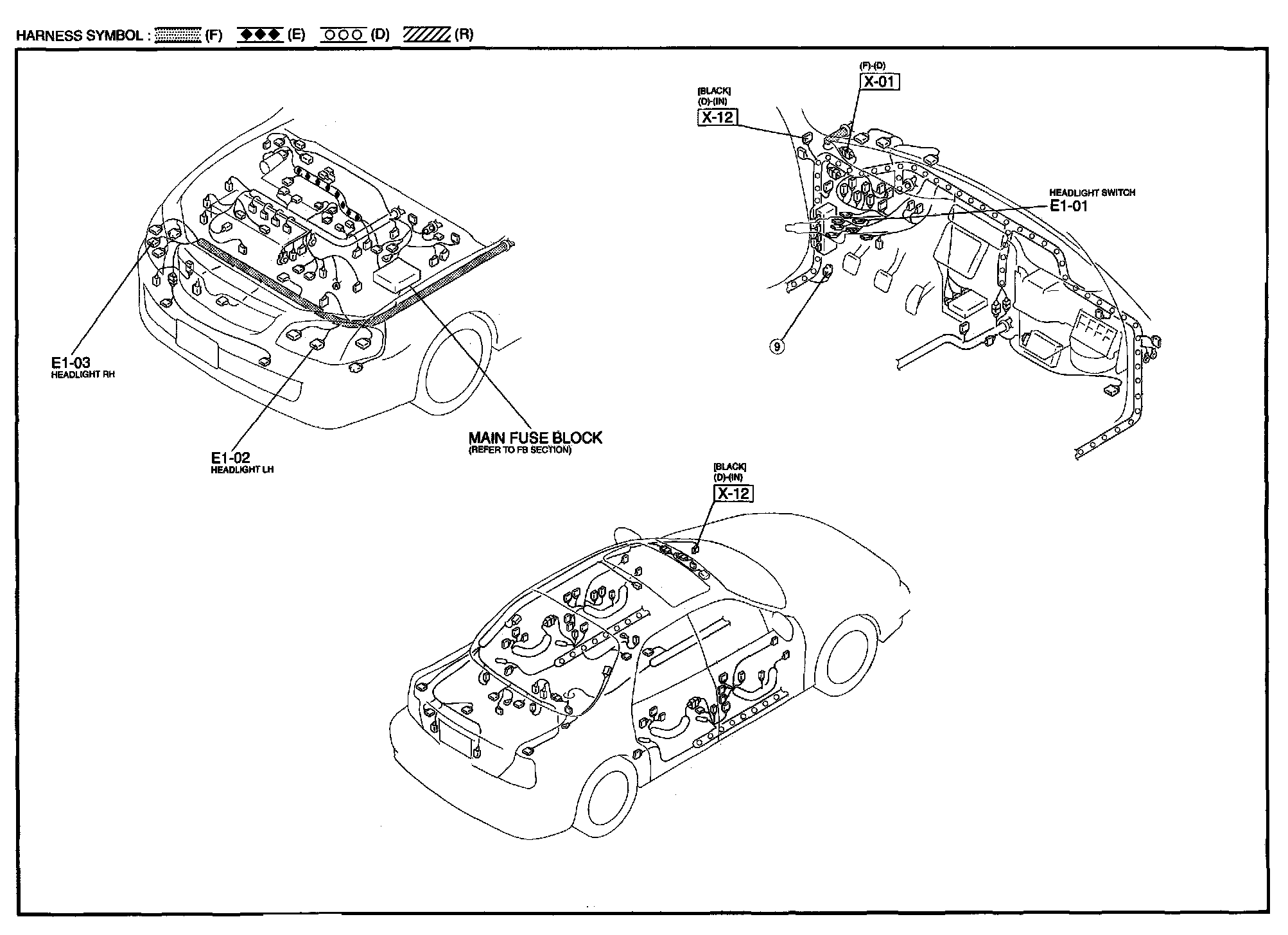

E-1 - Headlight (Without DRL)
E-1 - Headlight (Without DRL)
E-1 - Headlight(Without DRL) (4SD) Harness/Connector Symbols:
