Camshaft Bearing: Specifications

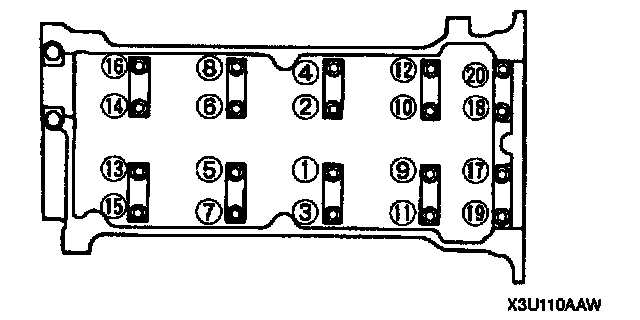

Camshaft Bearing Cap Tightening Sequence:






Camshaft Bearing Cap

Torque 11.3-14.2 Nm (100-125 in lbs)
