VIN JM1BJ22#2*#596253 -
>>

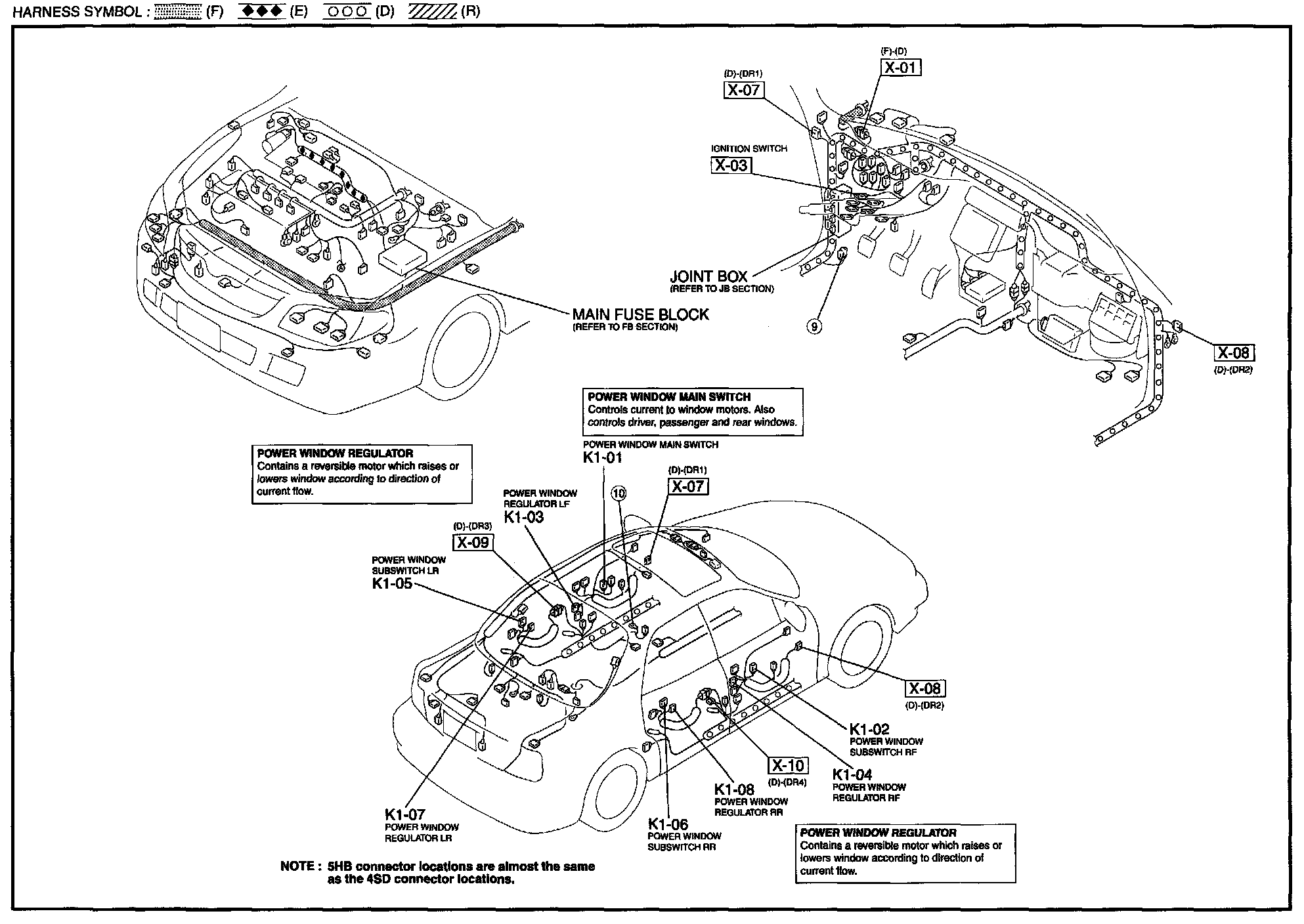

K-1 - Power Window System
K-1 - Power Window System
K-1 - Power Window System Harness/Connector Symbols:
