VIN JM1BJ22#2*#596253 -

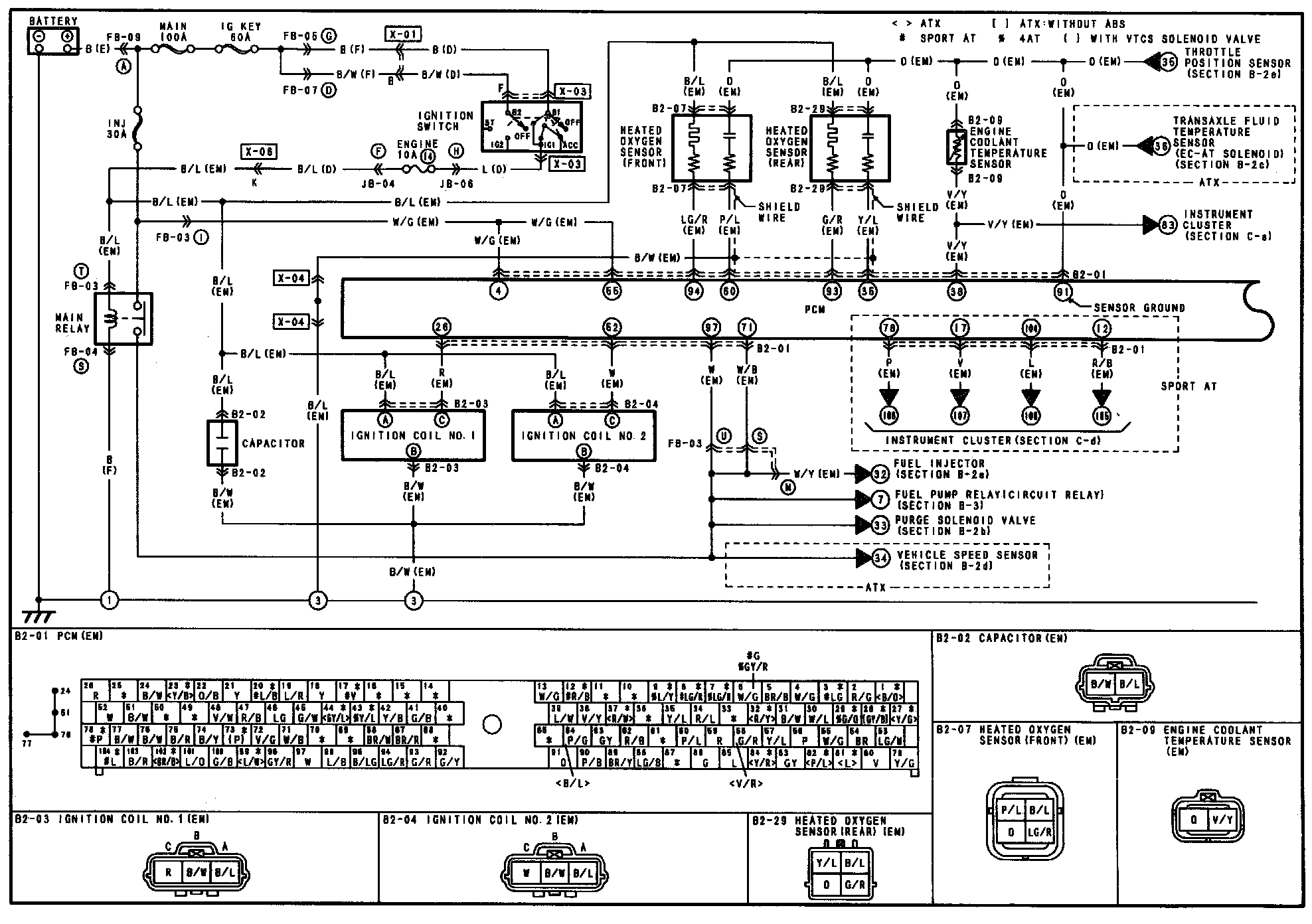

B-2a - EC-AT Control System (FS) / Engine Control System (FS) Circuit 2.0L:

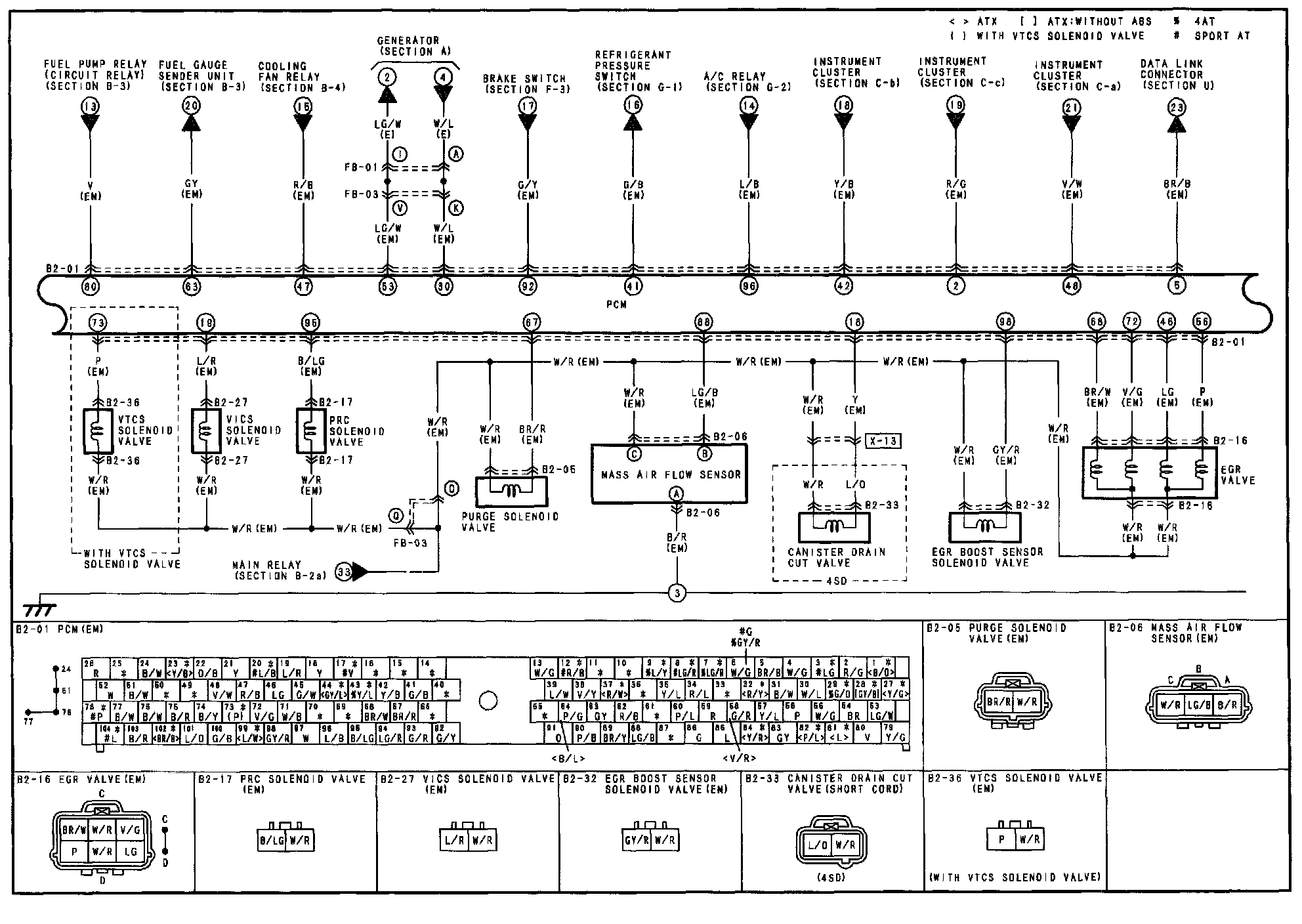

B-2b - EC-AT Control System (FS) / Engine Control System (FS) Circuit 2.0L:

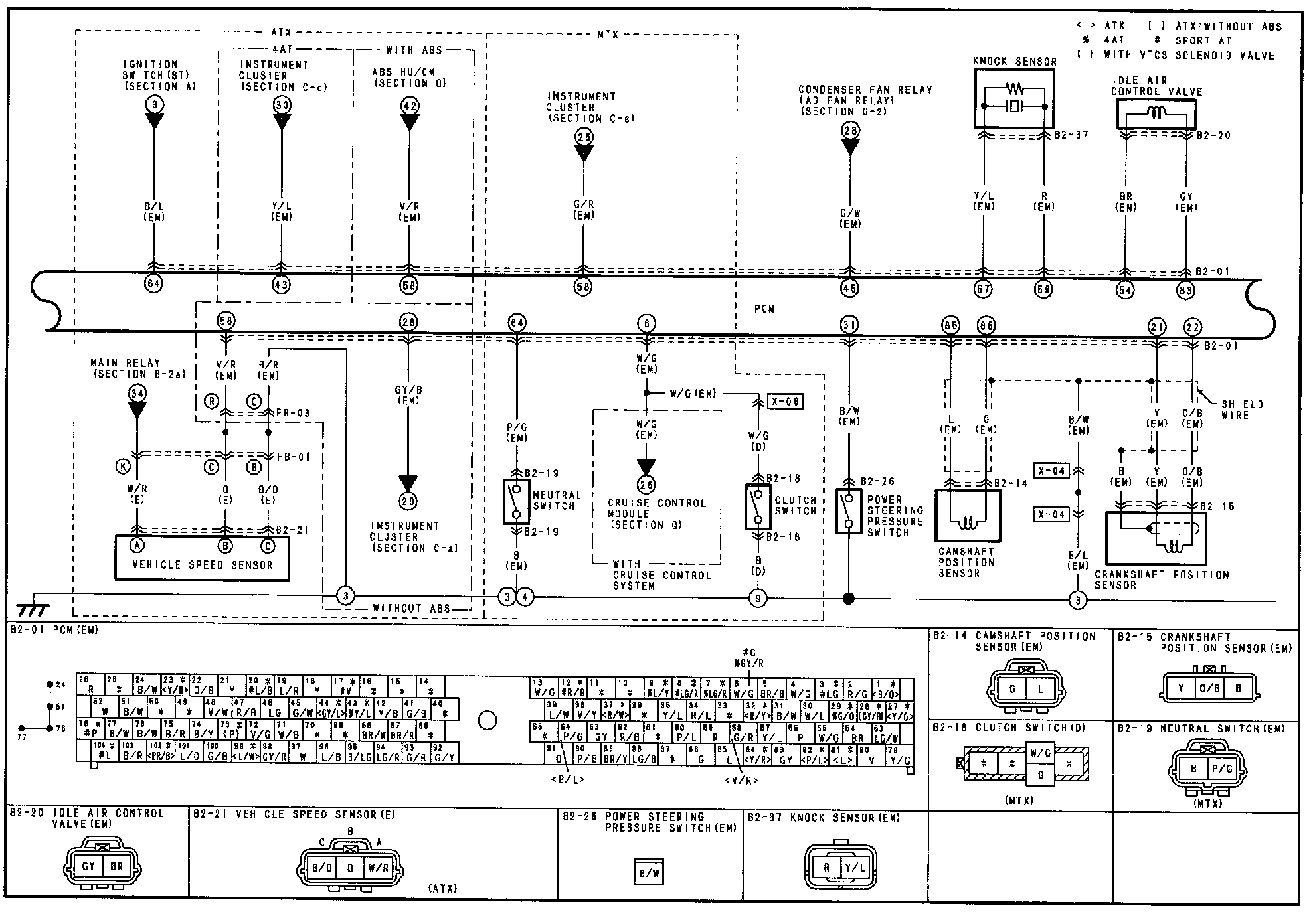

B-2c - EC-AT Control System (FS)/Engine Control System (FS) Circuit 2.0L:

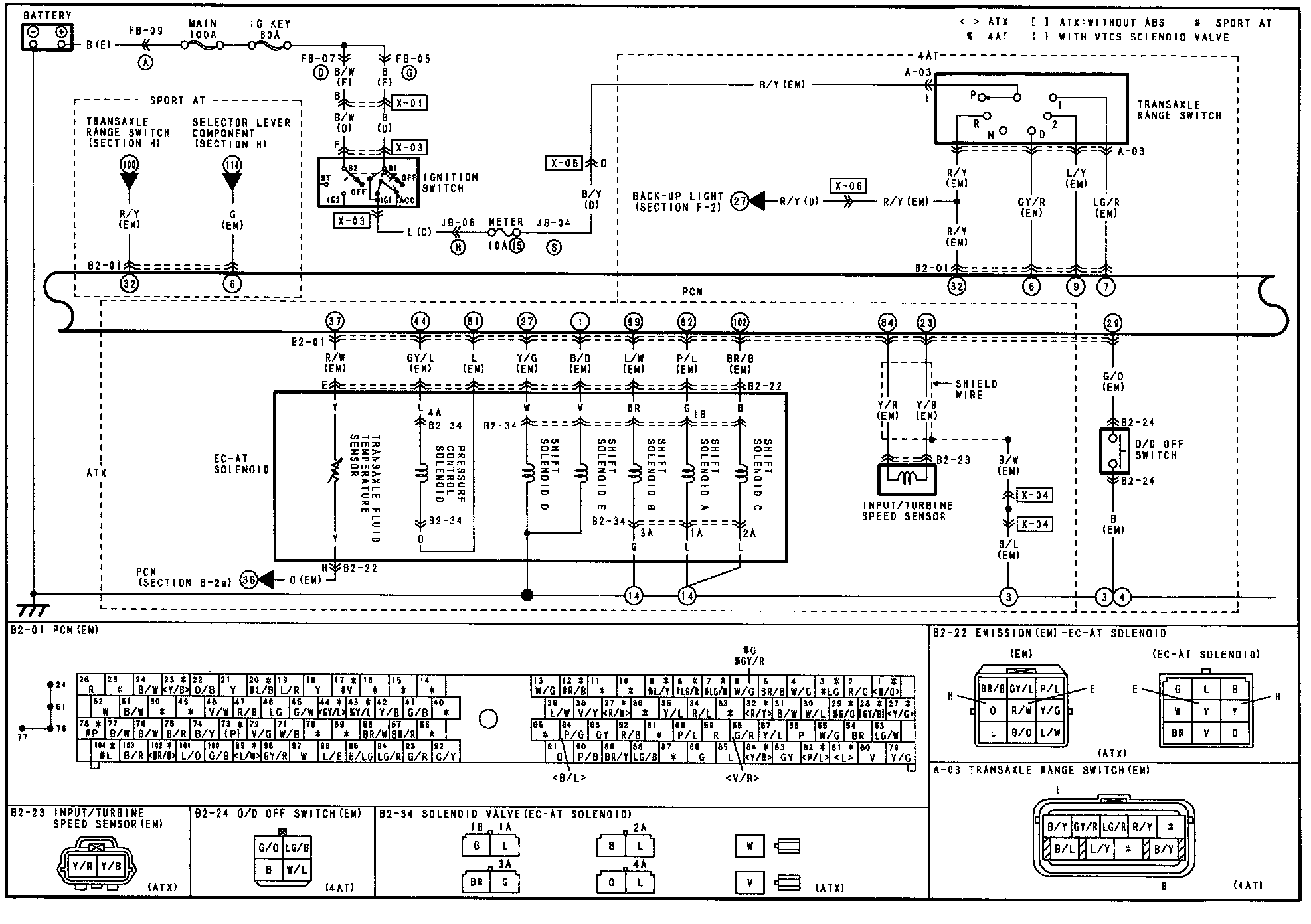

B-2d - EC-AT Control System (FS)/Engine Control System (FS) Circuit 2.0L:

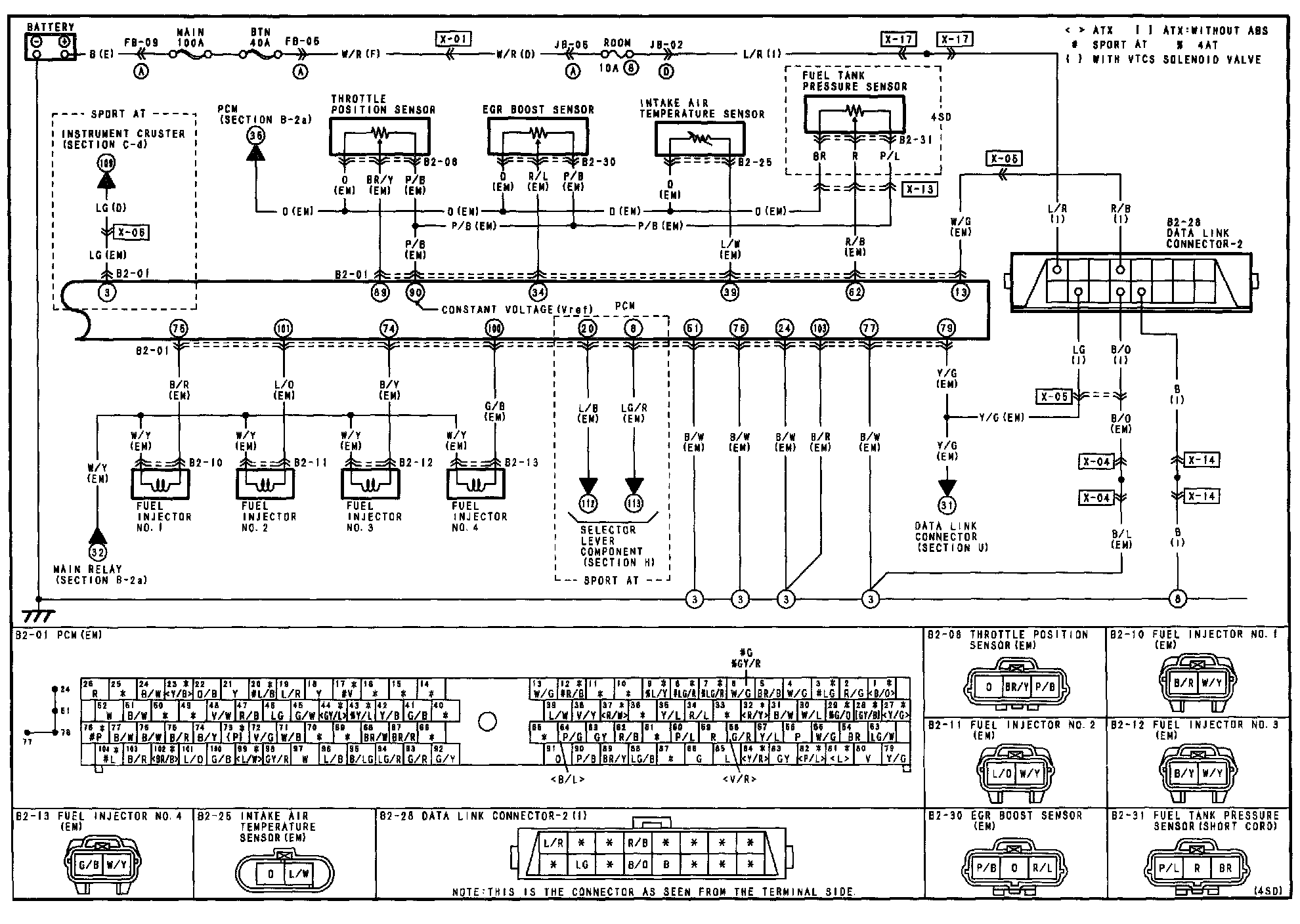

B-2e - EC-AT Control System (FS)/Engine Control System (FS) Circuit 2.0L:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
