VIN JM1BJ22#2*#596253 -

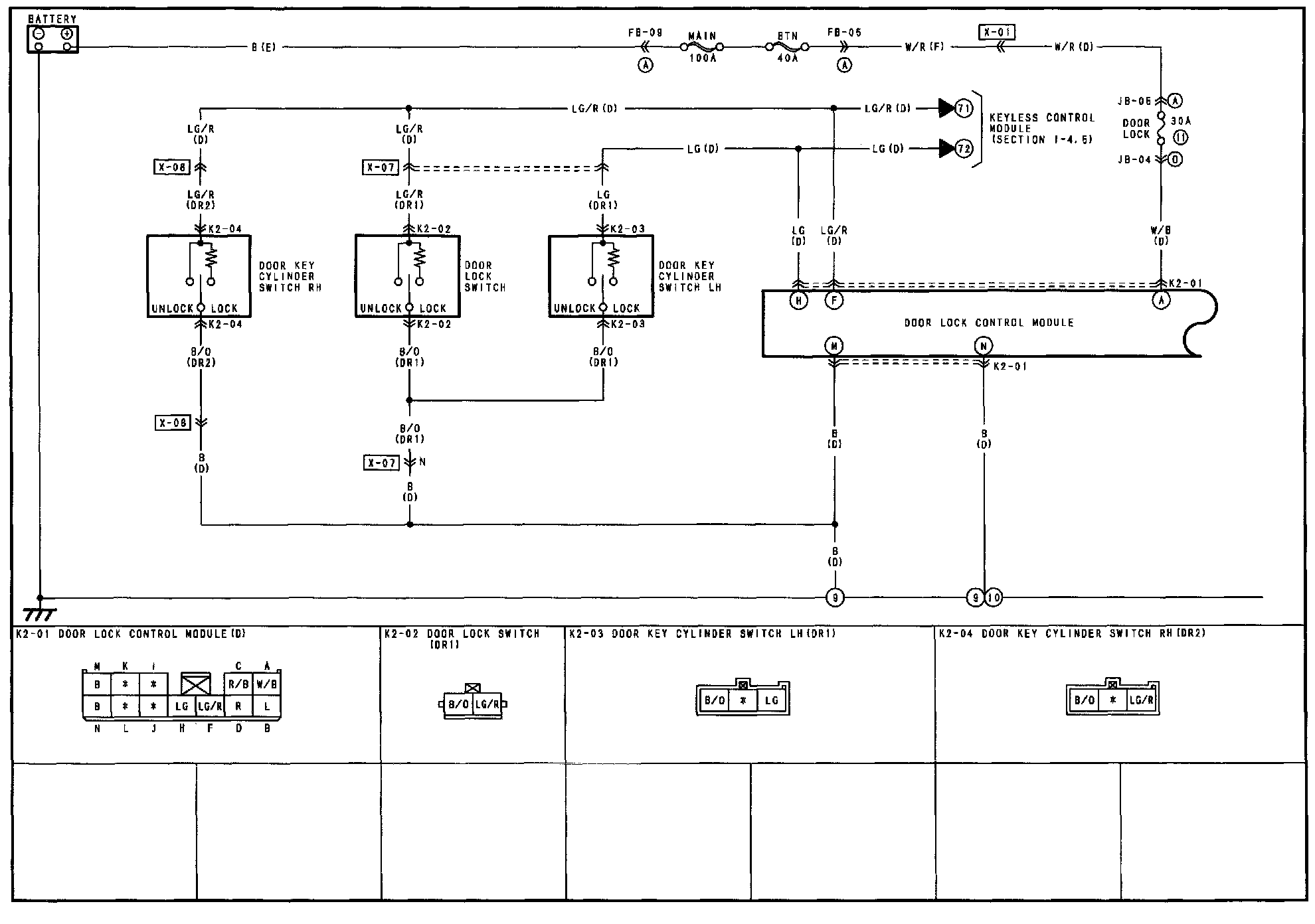

K-2a - Power Door Kock System Circuit:

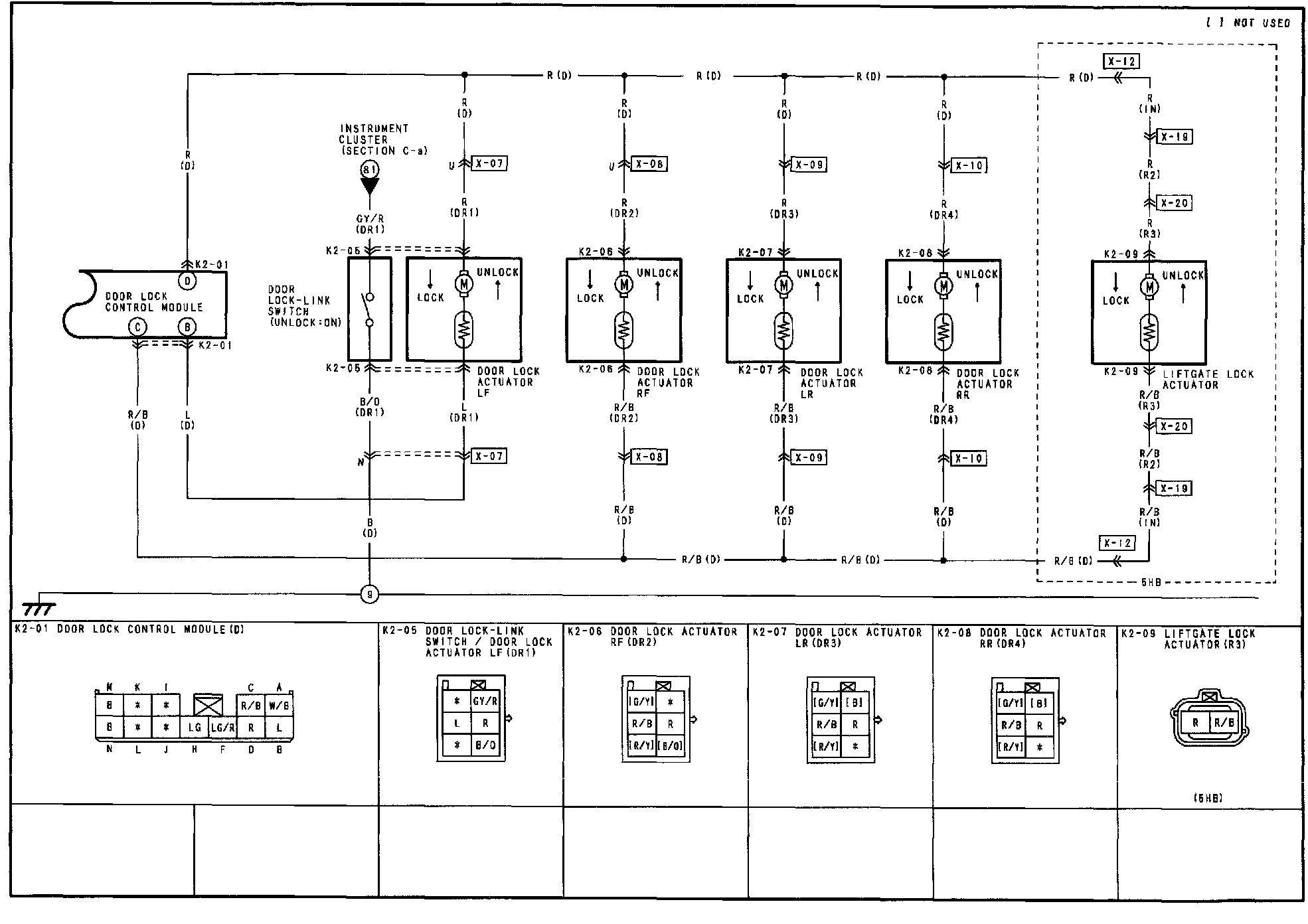

K-2b - Power Door Lock System Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
