VIN JM1BJ22#2*#4000001 - 596252

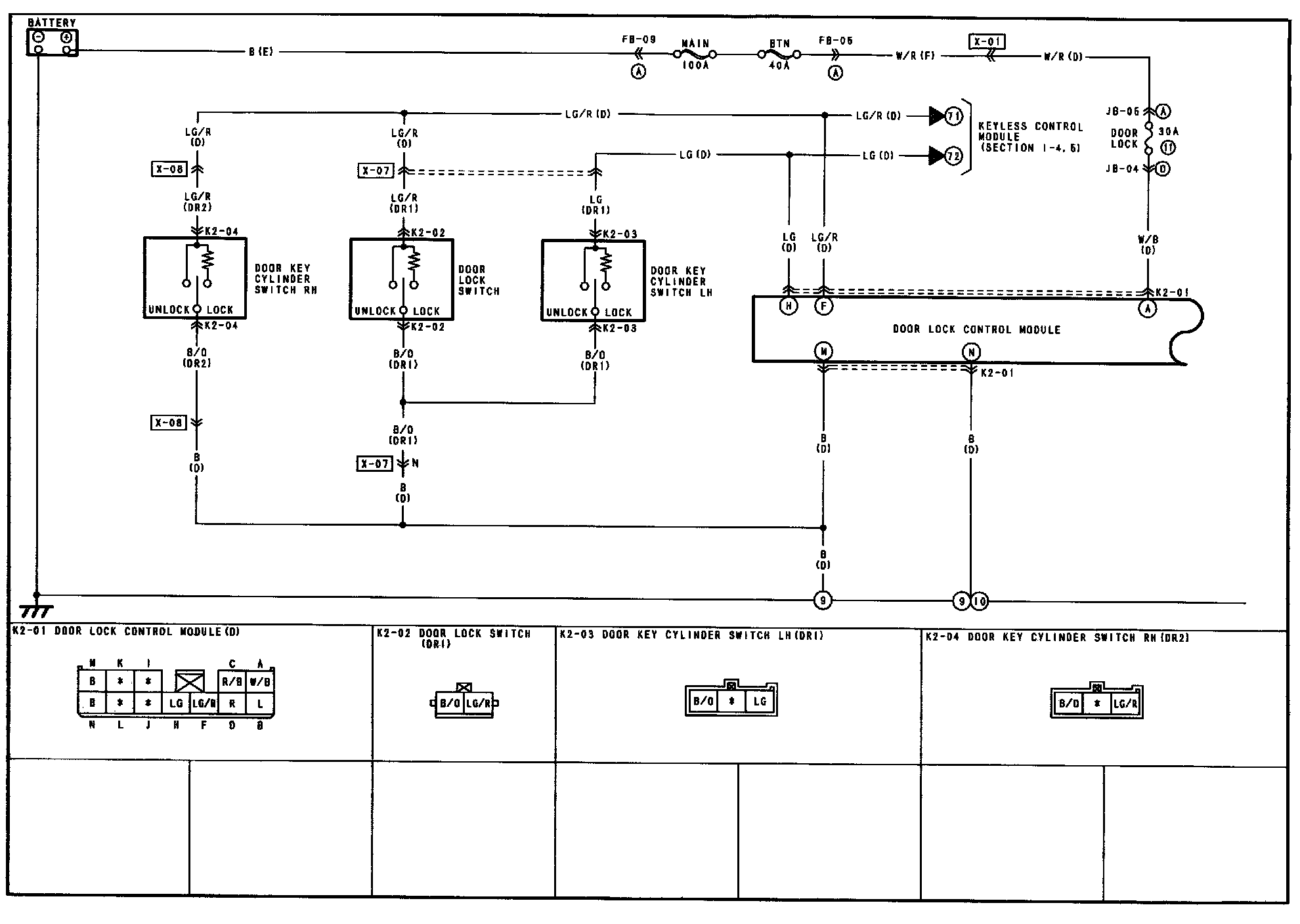

K-2a - Power Door Lock System Circuit:

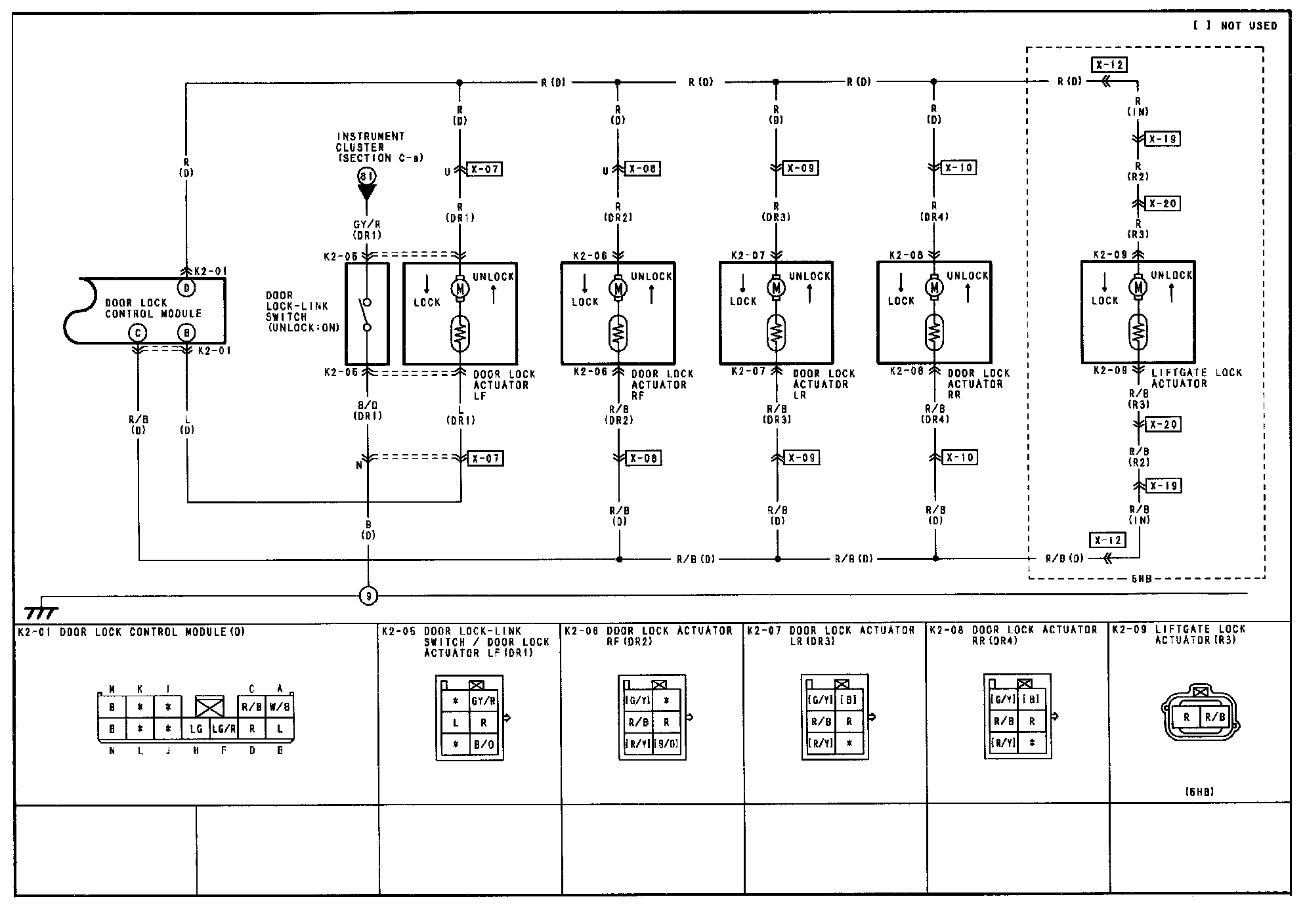

K-2b - Power Door Lock System Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
