Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light >> VIN JM1BJ22#2*#4000001 - 596252

VIN JM1BJ22#2*#4000001 - 596252

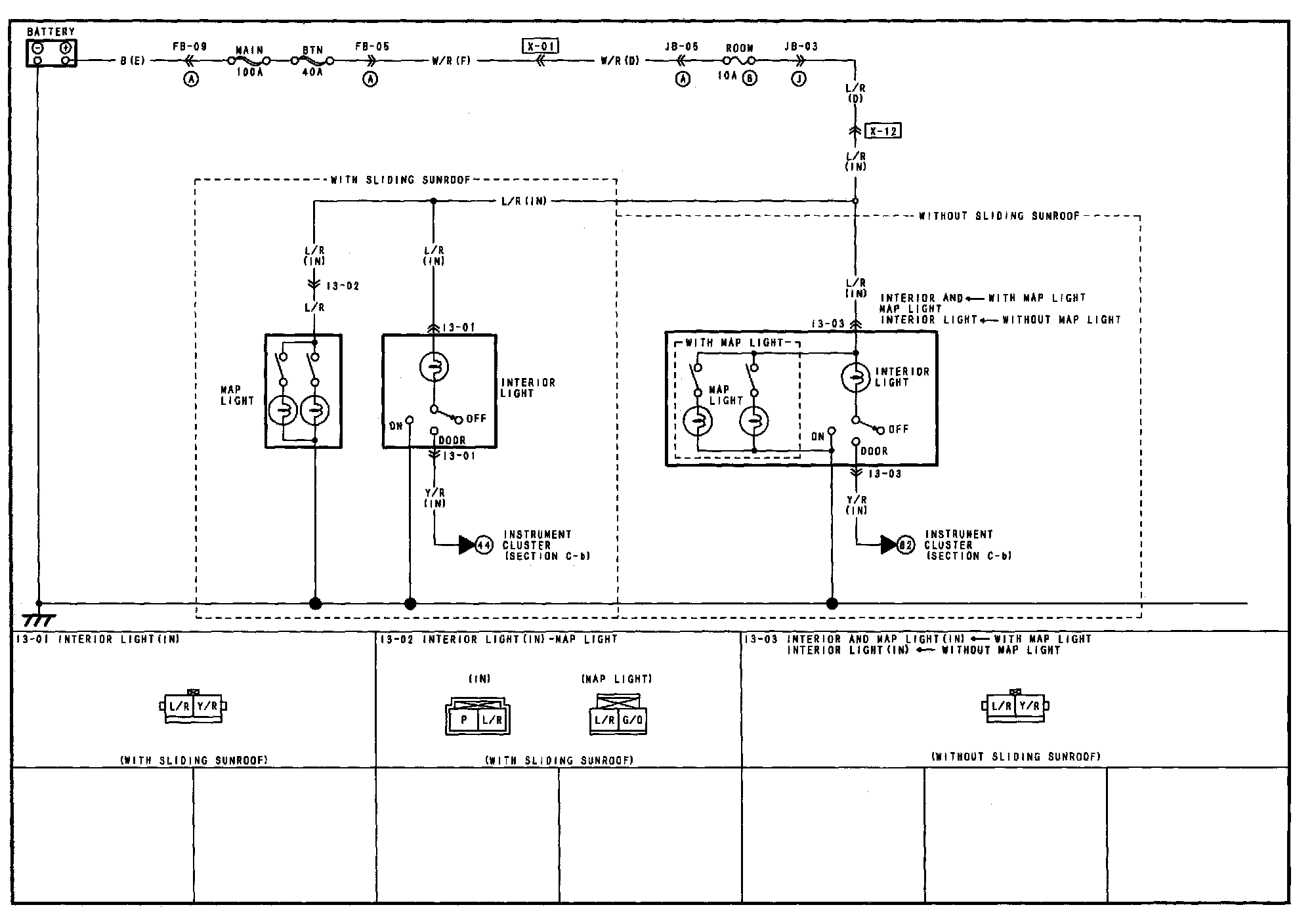

I-3 - Interior Light/Map Light Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
