VIN JM1BJ22#2*#596253 -

C-a - Instrument Cluster Circuit:

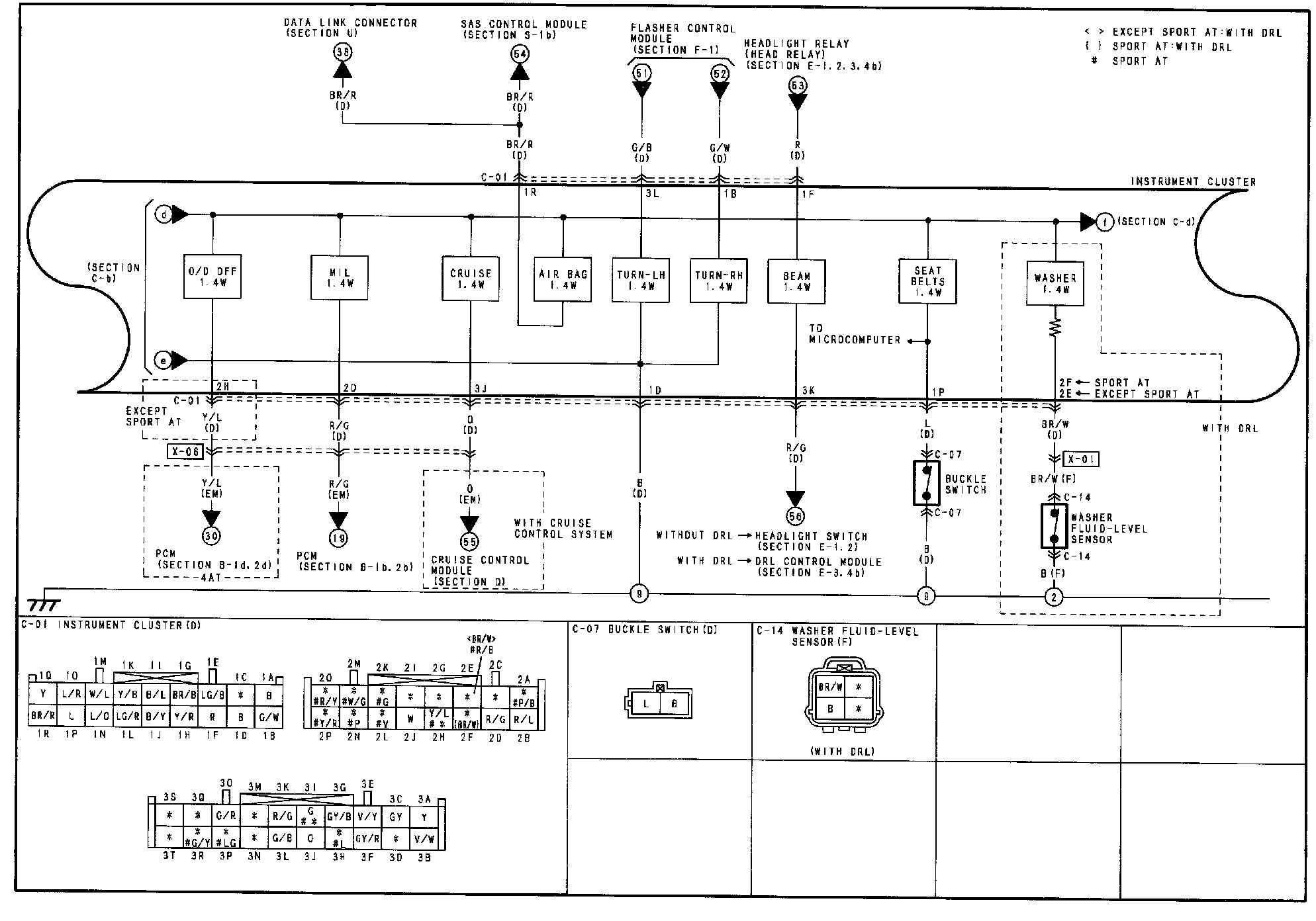

C-b - Instrument Cluster Circuit:

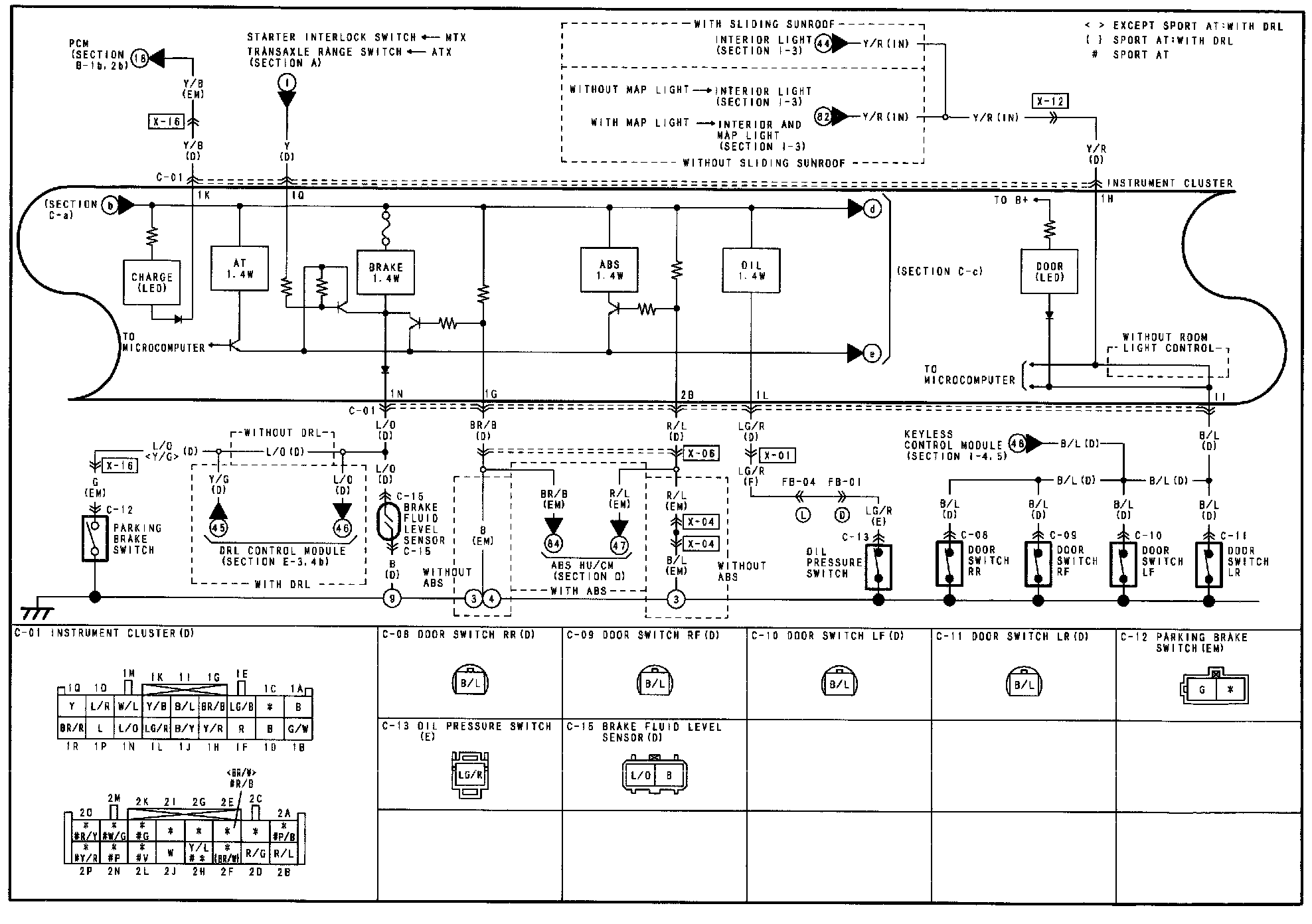

C-c - Instrument Cluster Circuit:

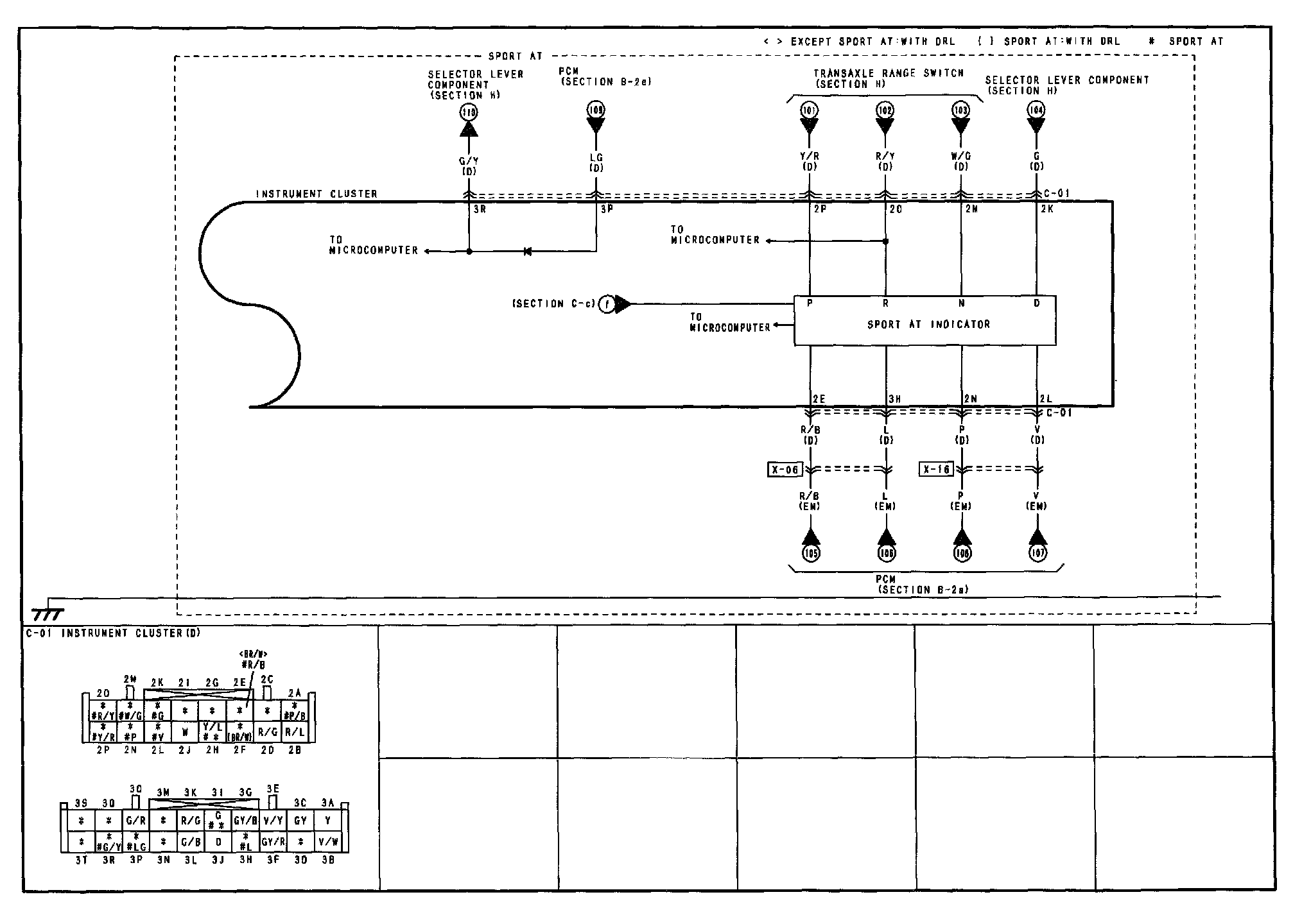

C-d - Instrument Cluster Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
