Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> VIN JM1BJ22#2*#596253 -

VIN JM1BJ22#2*#596253 -

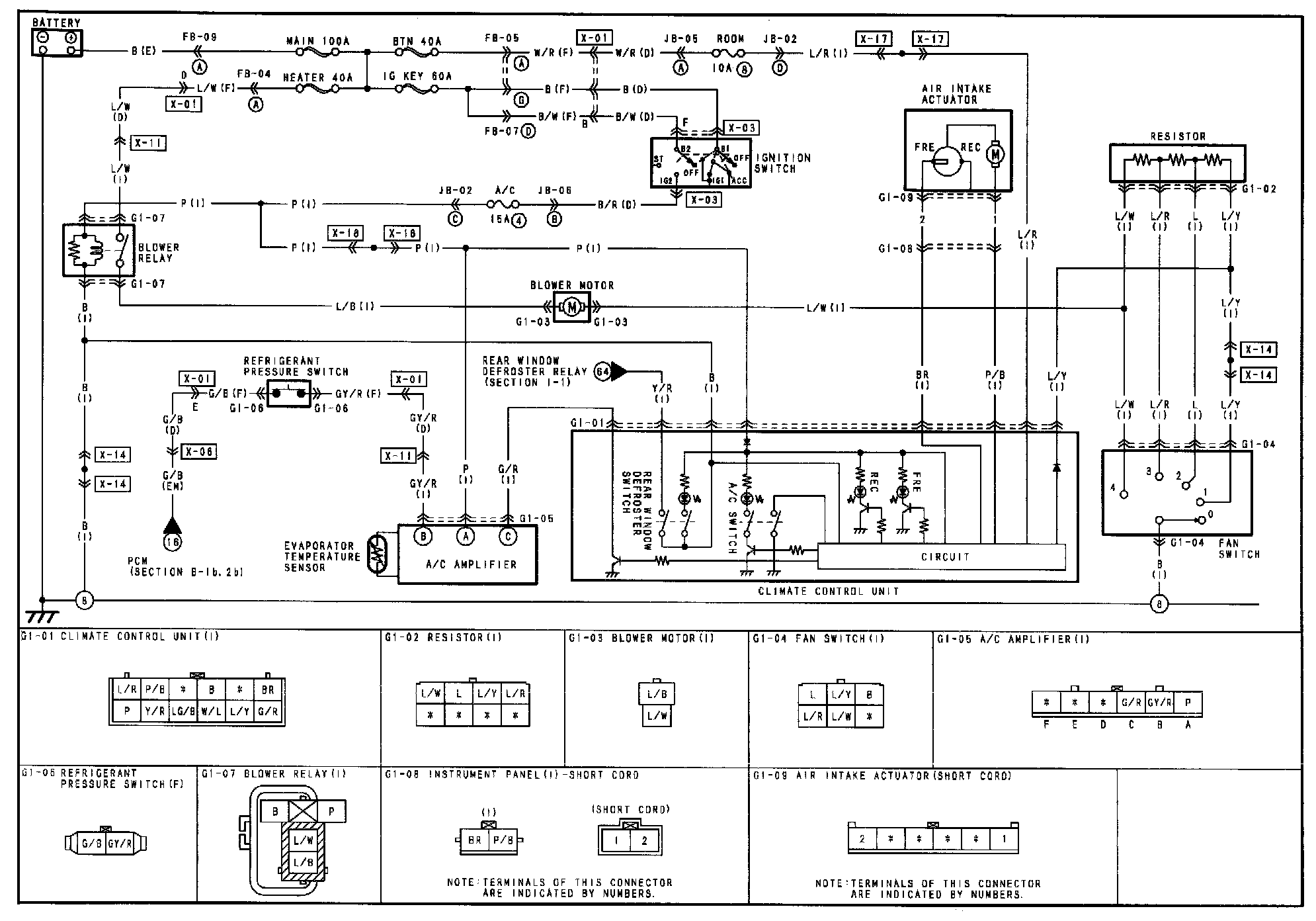

G-1 - Heater And Air Conditioner Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
