VIN JM1BJ22#2*#596253 -

E-1 - Headlight (Without DRL) (4SD) Circuit:

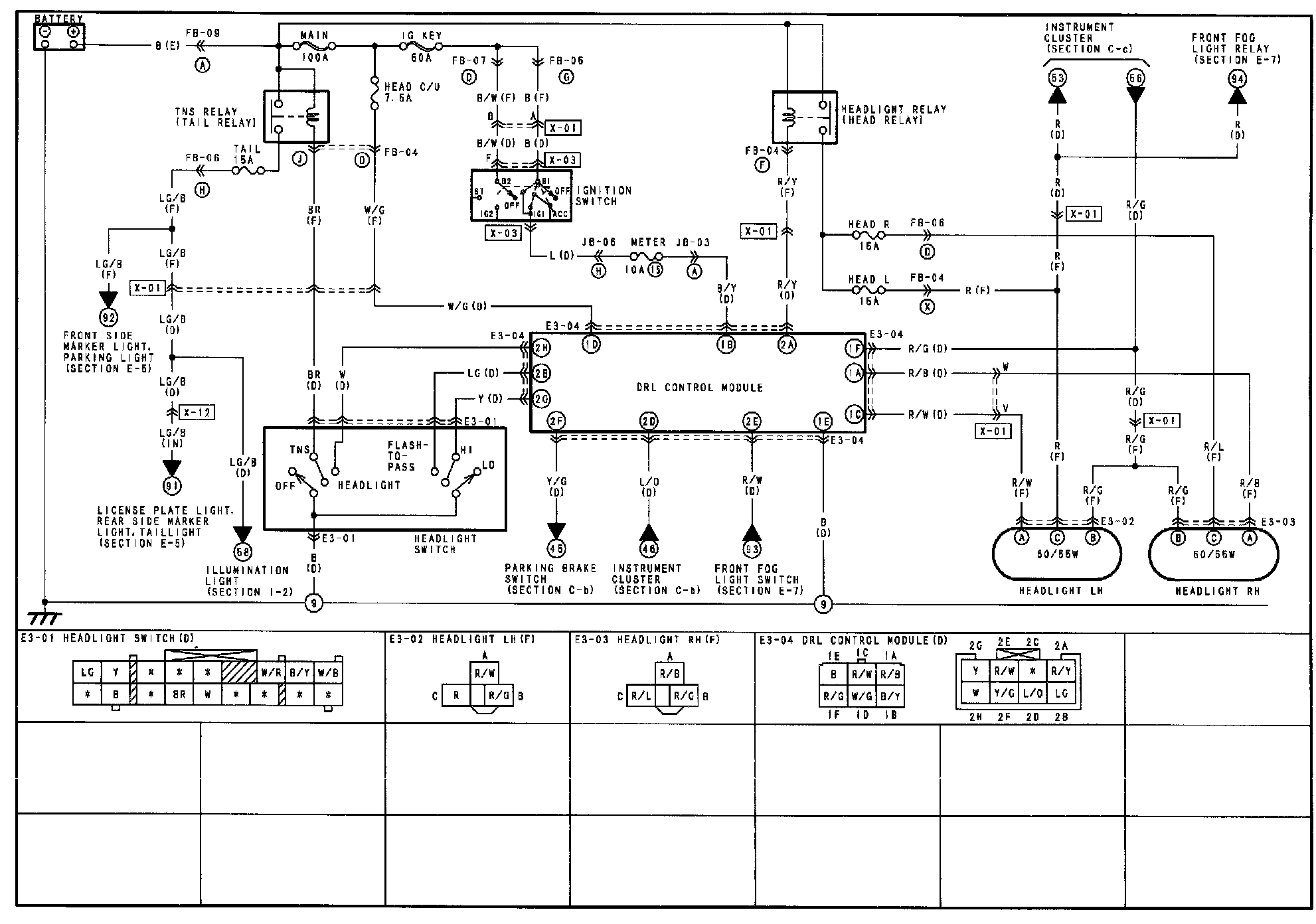

E-3 - Headlight (With DRL) (4SD) Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
