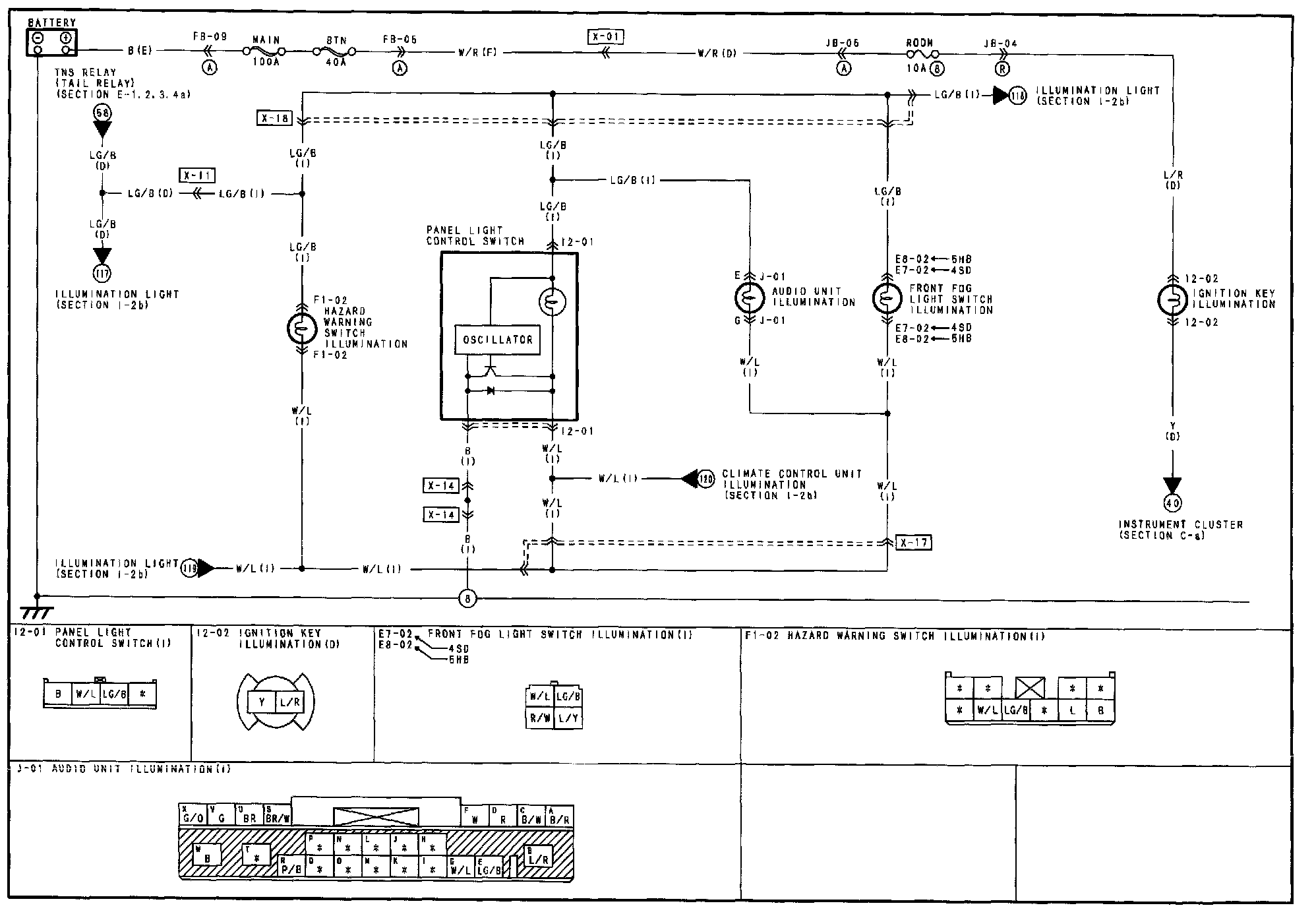

I-2a - Illumination Light Circuit:

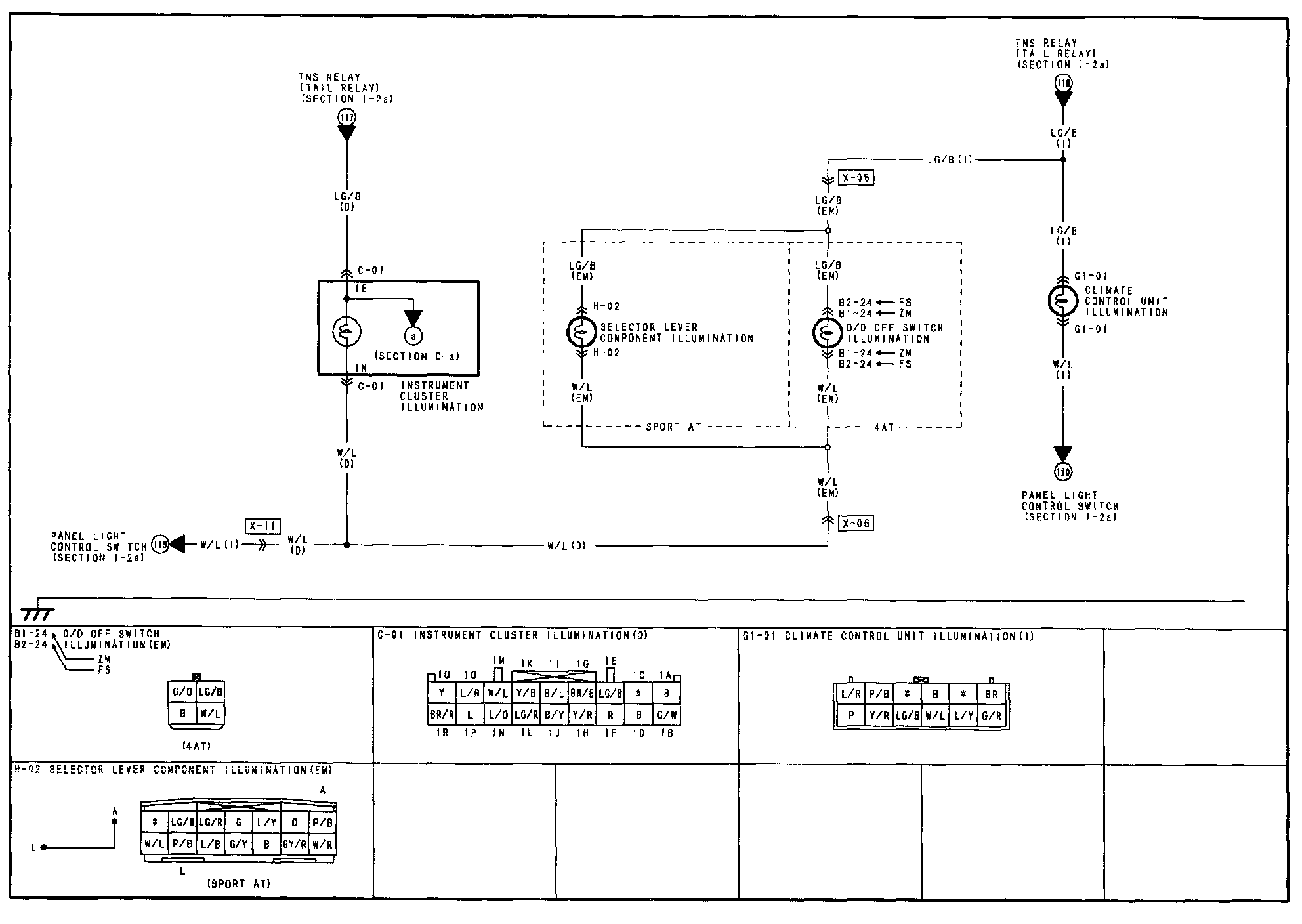

I-2b - Illumination Light Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
