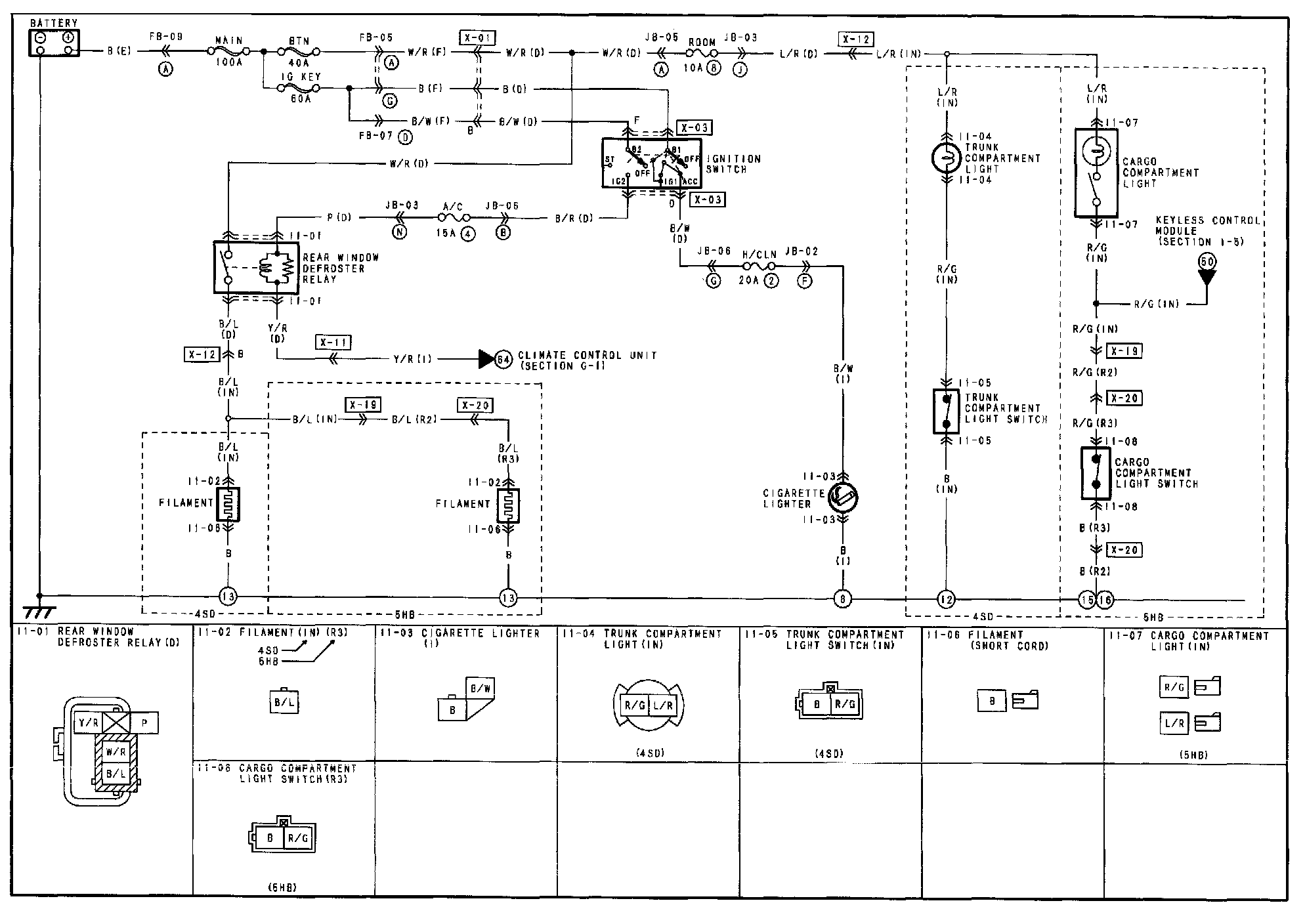

I-1 - Cargo Compartment Light (5HB)/Cigarette Lighter/Rear Window Defroster/Trunk Compartment Light (4SD) Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
