Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> System Diagram >> VIN JM1BJ22#2*#596253 -

VIN JM1BJ22#2*#596253 -

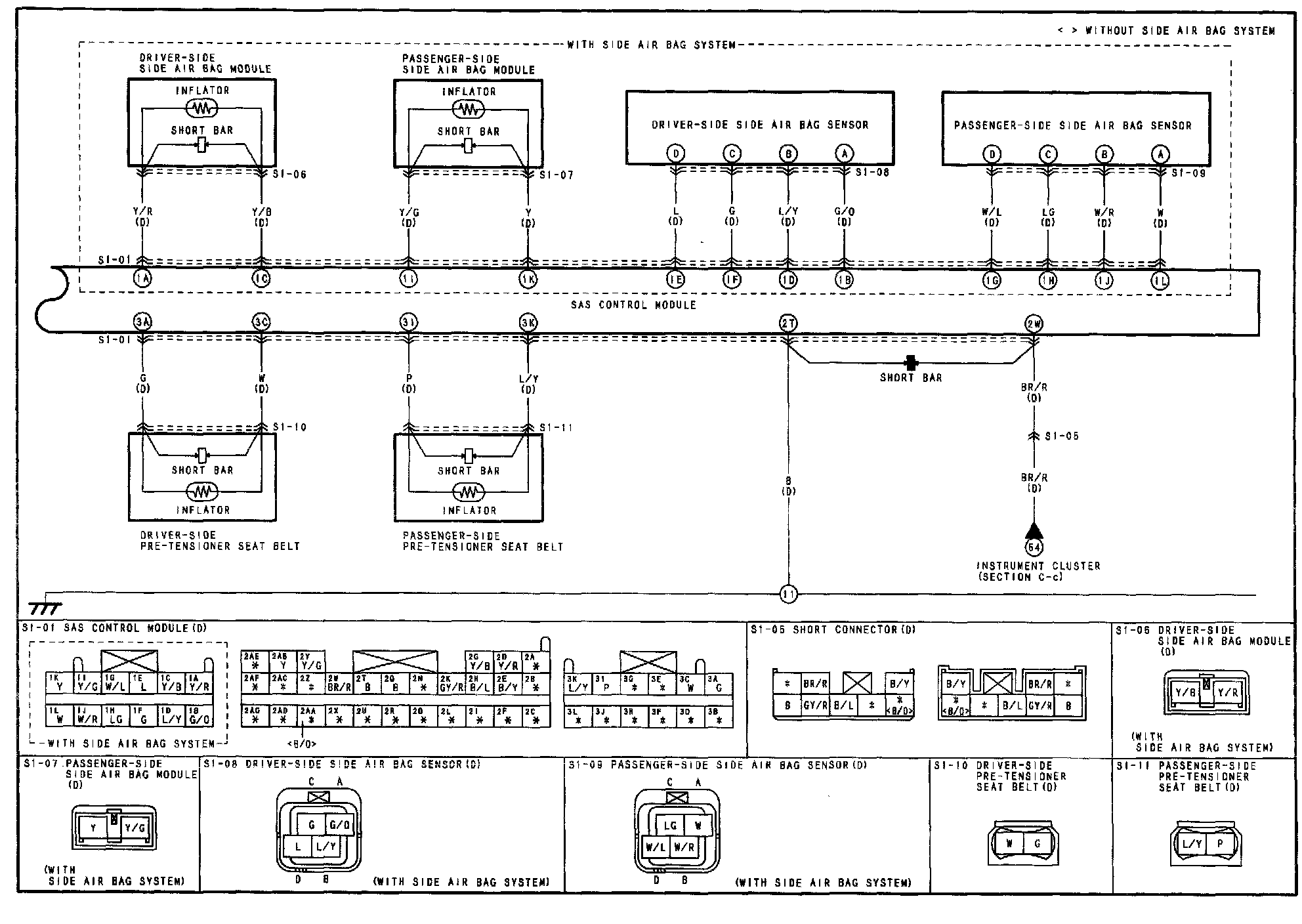

S-1a - Air Bag System/Side Bag System Circuit:

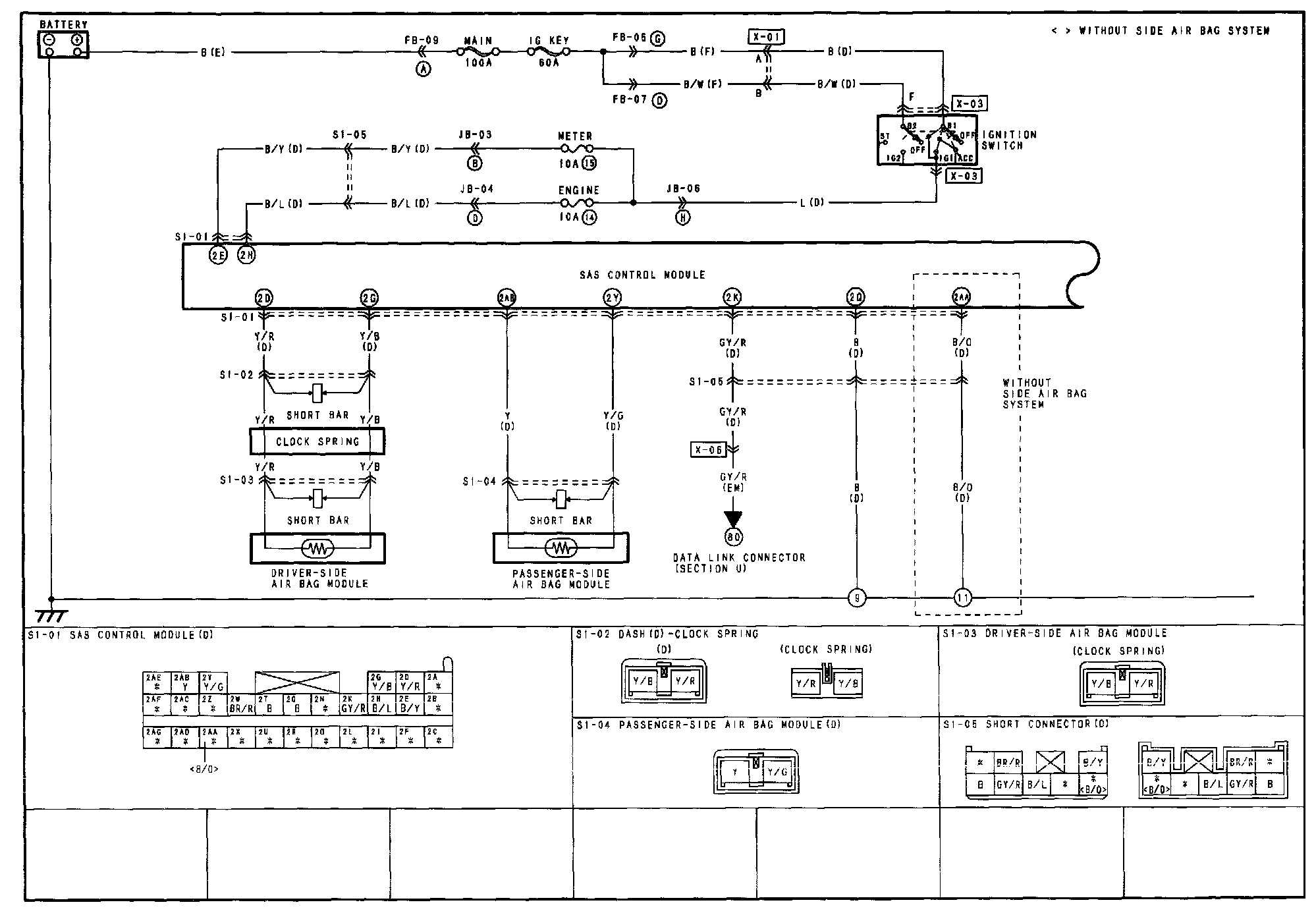

S-1b - Air Bag System/Side Air Bag System Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
