VIN JM1BJ22#2*#596253 -

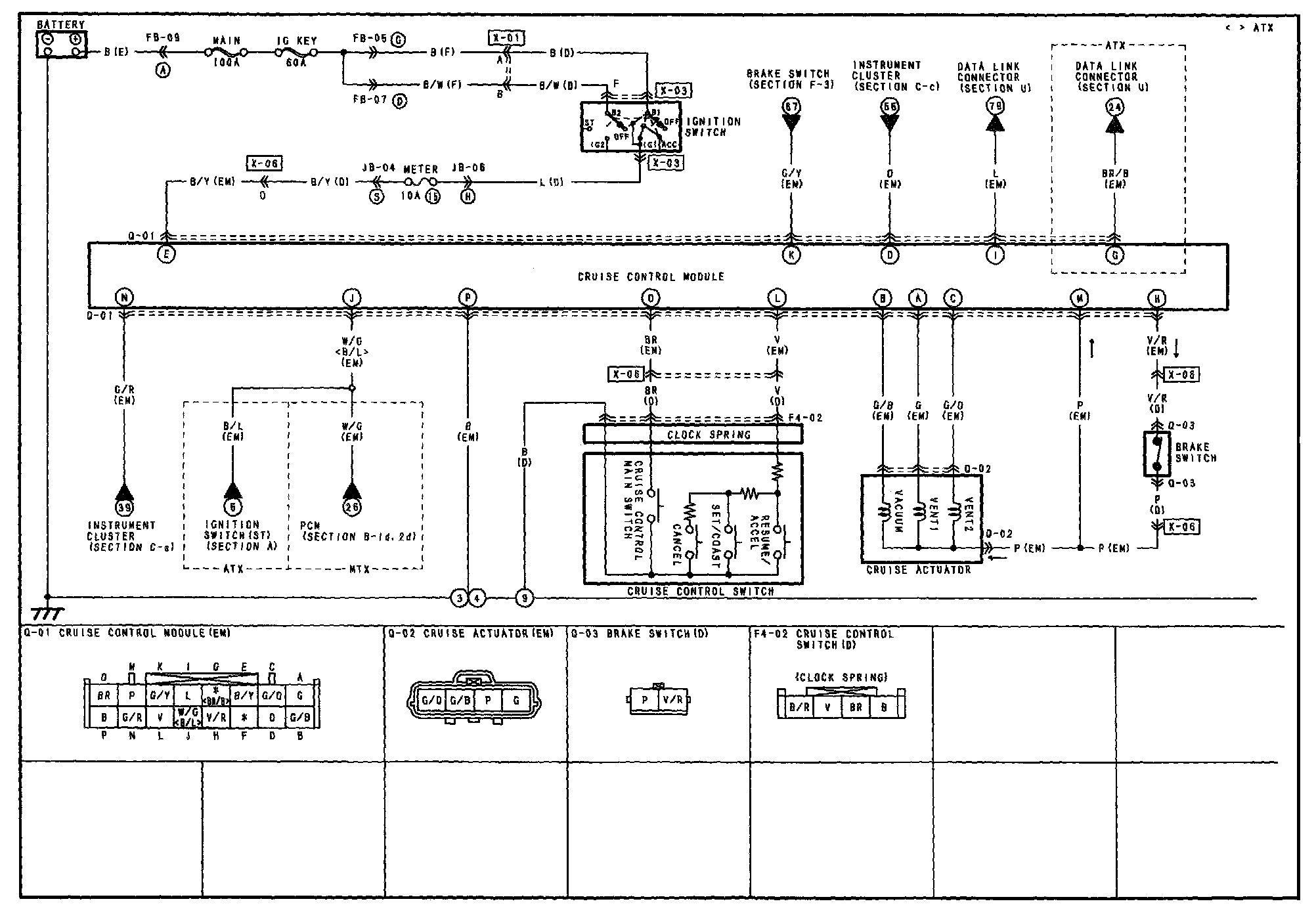

Q - Cruise Control System Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
