Home >> Mazda >> 2002 >> Protege SE (CANADA) L4-1.6L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> VIN JM1BJ22#2*#596253 -

VIN JM1BJ22#2*#596253 -

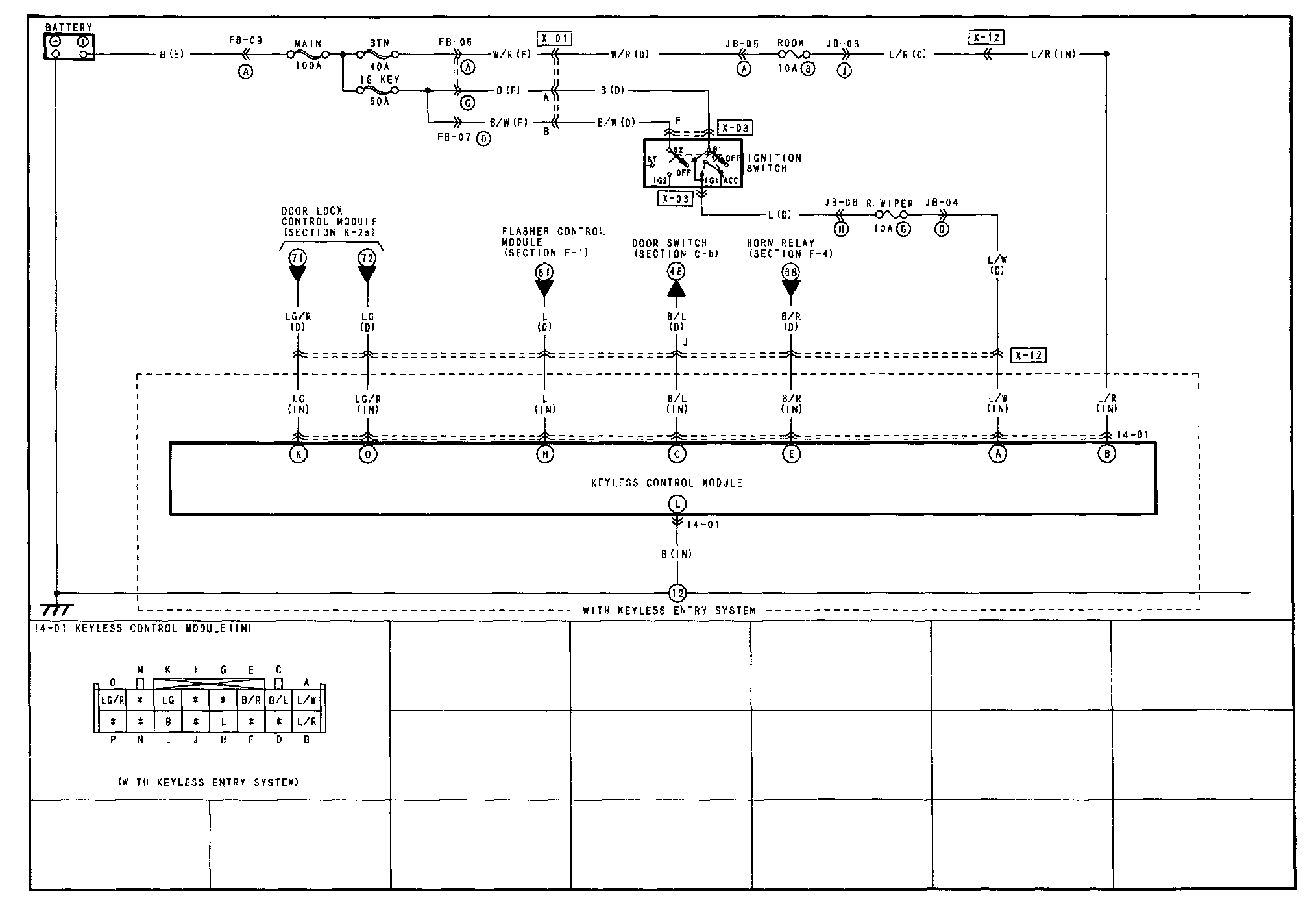

I-4 - Keyless Entry System (4SD) Circuit:




Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z)
