Rear Antenna Feeder

REAR ANTENNA FEEDER INSPECTION

1. Remove the rear antenna feeder.

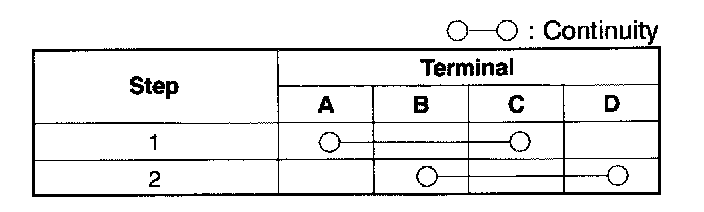

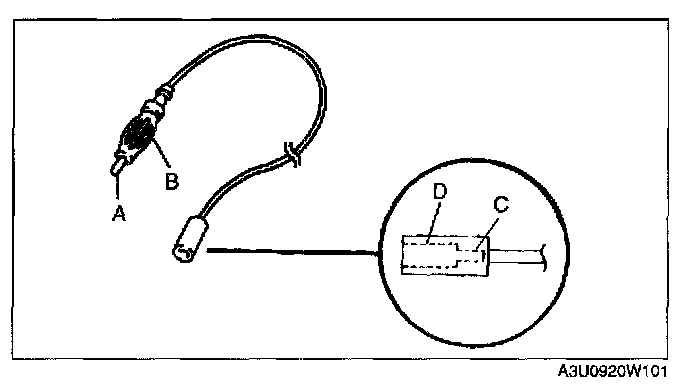

2. Verify that there is no continuity between rear antenna feeder terminals A and B using an ohmmeter.
3. Inspect for continuity between the rear antenna feeder terminals using an ohmmeter.
- If not as specified, replace the rear antenna feeder.
