Instrument Cluster Input/Output Check Mode
>>
Inspection Of DTCS
>>
DTC 31: TNS Relay On/Off Signal
DTC 31: TNS Relay On/Off Signal

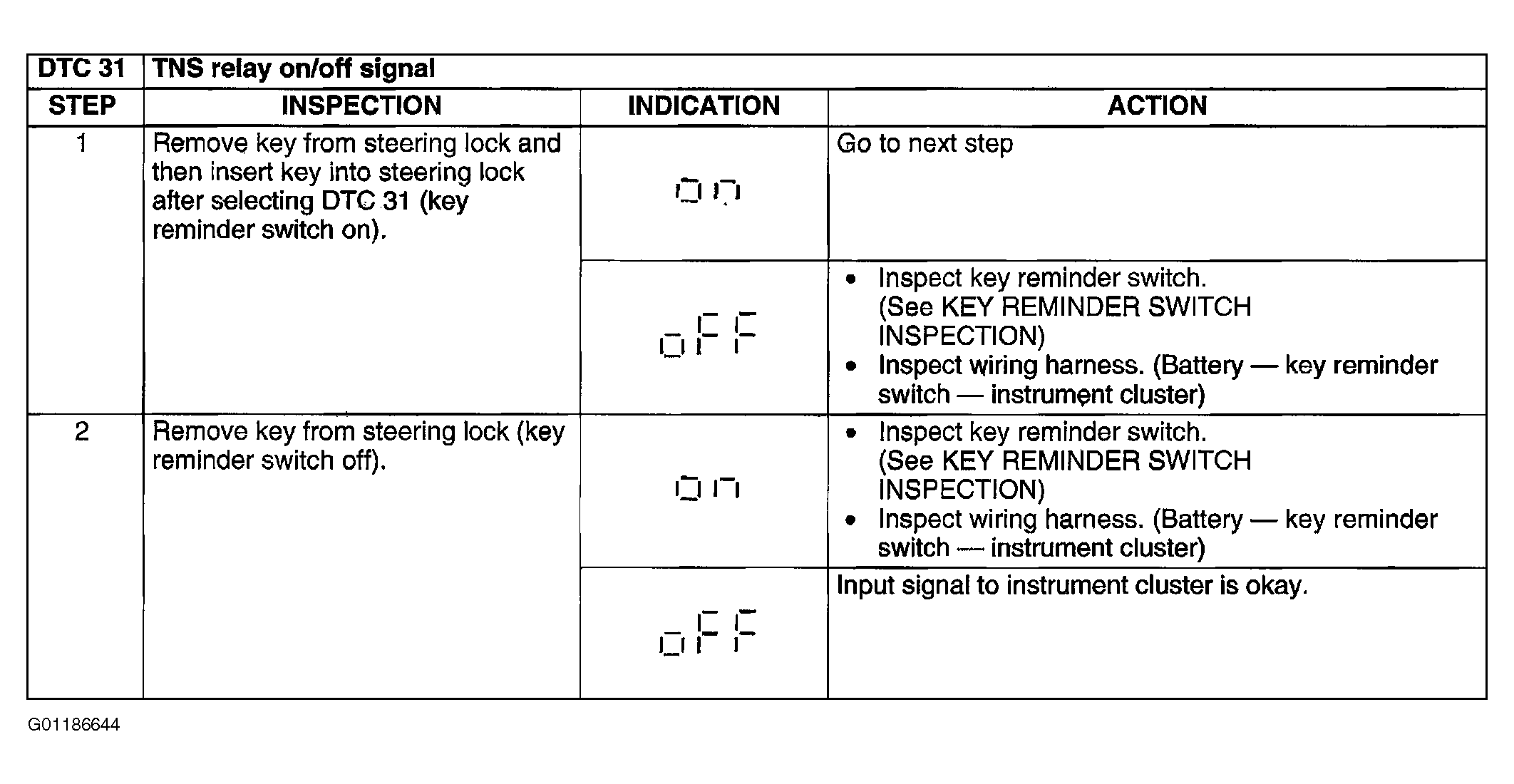

Fig 1: DTC 31: TNS Relay On/Off Signal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
