DTC 13: Operation Signal To Tachometer

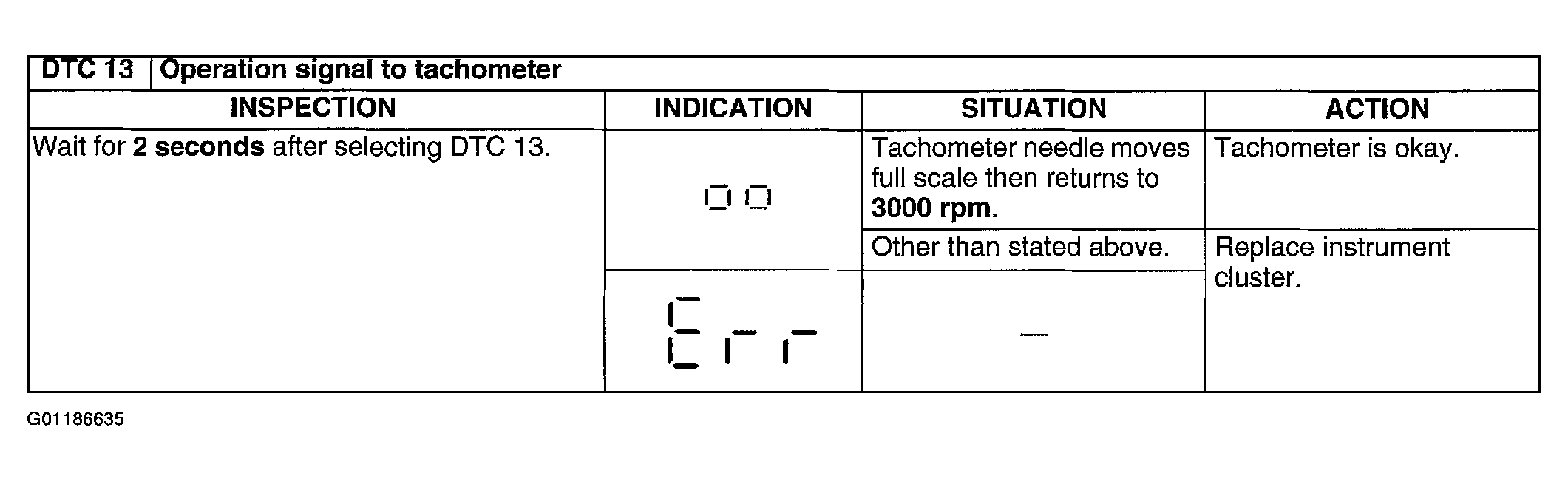

Fig 1: DTC 13: Operation Signal To Tachometer

G01186635

Courtesy of MAZDA MOTORS CORP.
