DTC 12: Operation Signal To Speedometer

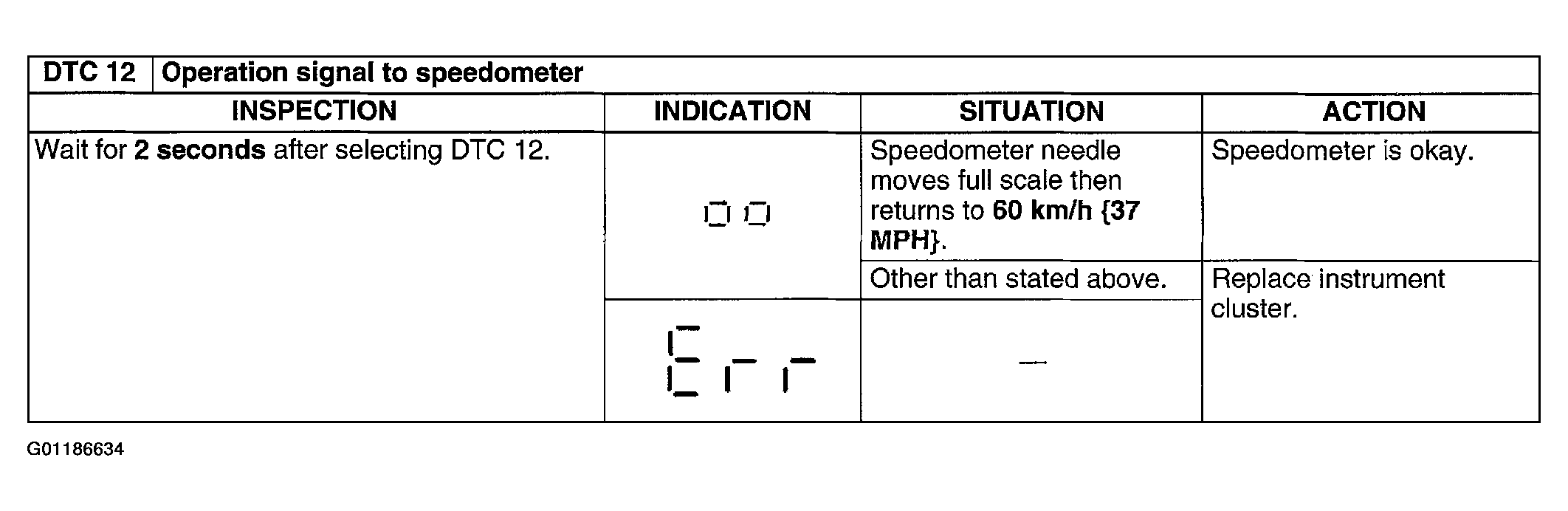

Fig 1: DTC 12: Operation Signal To Speedometer

G01186634

Courtesy of MAZDA MOTORS CORP.
