DTC 10: Vehicle Speed Input Signal

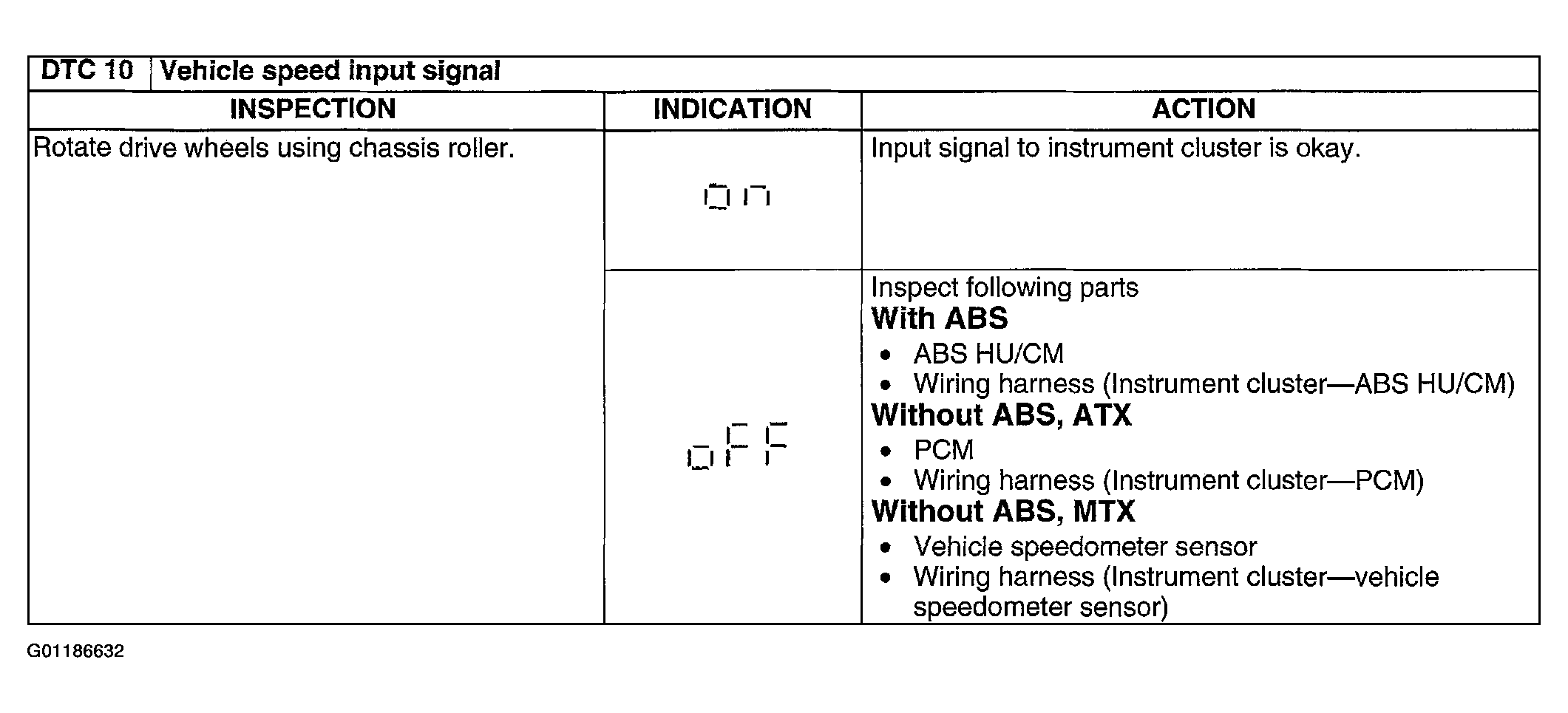

Fig 1: DTC 10: Vehicle Speed Input Signal
G01186632Courtesy of MAZDA MOTORS CORP.
