DTC 05: Door Lock-Link Switch On/Off Signal

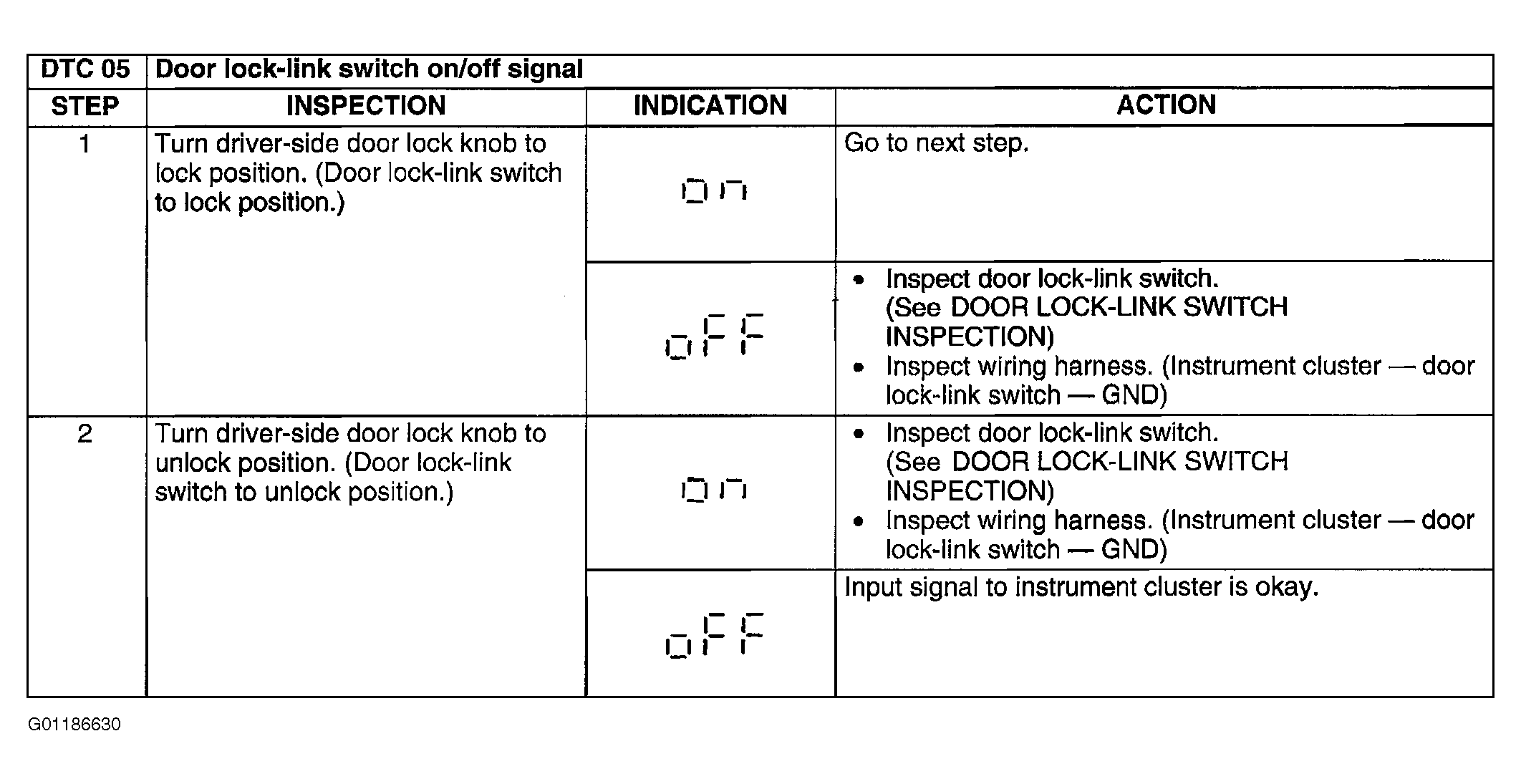

Fig 1: DTC 05: Door Lock-Link Switch On/Off Signal

G01186630

Courtesy of MAZDA MOTORS CORP.
