LEMON Manuals: Even more car manuals for everyone
Home >> Mazda >> 2002 >> Millenia S >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Removal & Installation >> Hazard Switch >> Removal & Installation

Removal & Installation

Disconnect negative battery cable. Tilt steering wheel down. Remove panel light control cap and switch. Remove meter hood installation screws and then remove meter hood. Remove screws and then remove hazard switch. To install, reverse removal procedure.

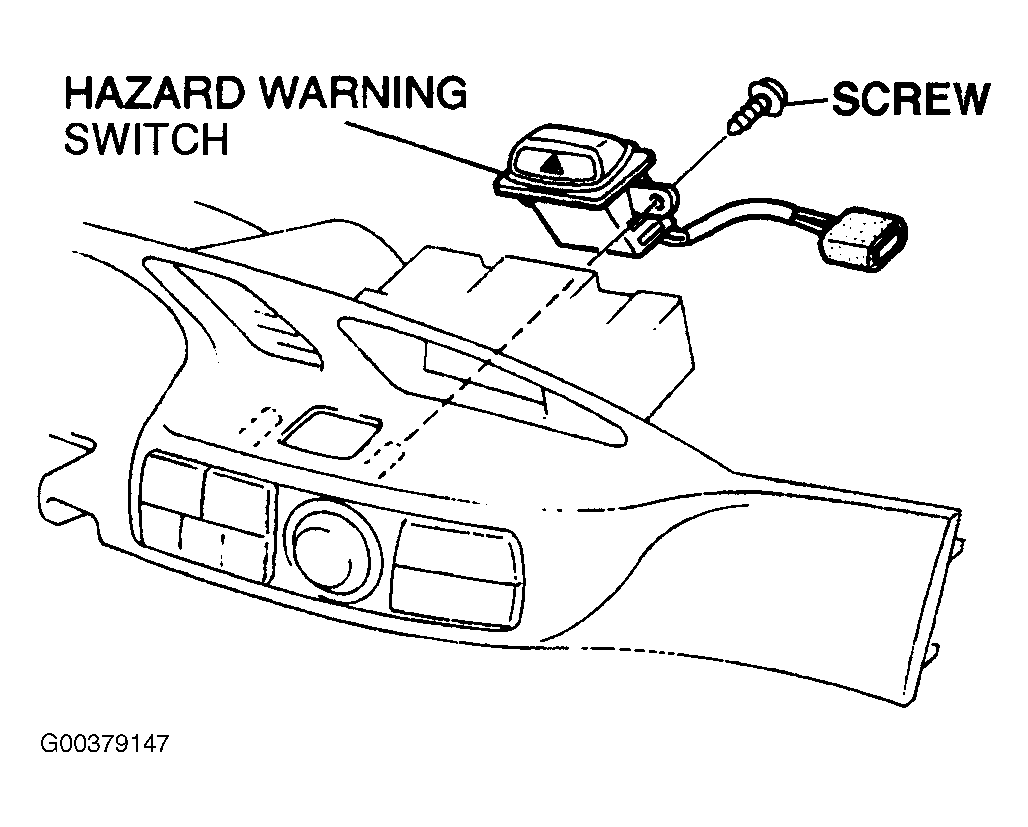

Fig 1: Removing Hazard Switch
G00379147Courtesy of MAZDA MOTORS CORP.
