Instrument Cluster Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood.
  3. Remove in the order indicated in the table.
    Fig 1: Instrument Cluster Removal Sequence Table
    G01174061Courtesy of MAZDA MOTORS CORP.

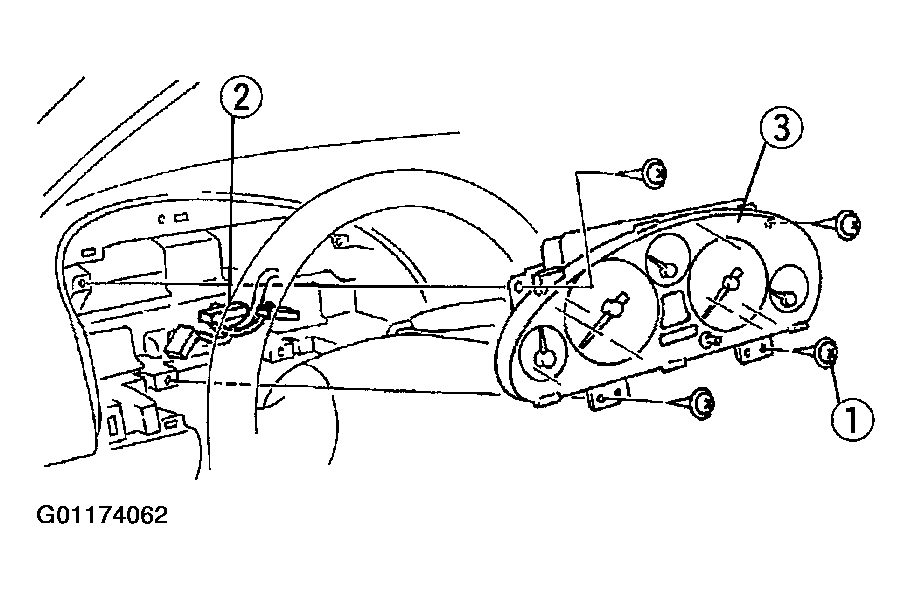

    Fig 2: Removing & Installing Instrument Cluster
    G01174062Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
