Gauges & Instrument Panels
>>
Instrument Cluster Inspection
>>
Fuel Gauge
Fuel Gauge
Remove the fuel gauge. See
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
.
Measure the resistance between the fuel gauge terminals using an ohmmeter.
If not as specified, replace the fuel gauge. See
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
.

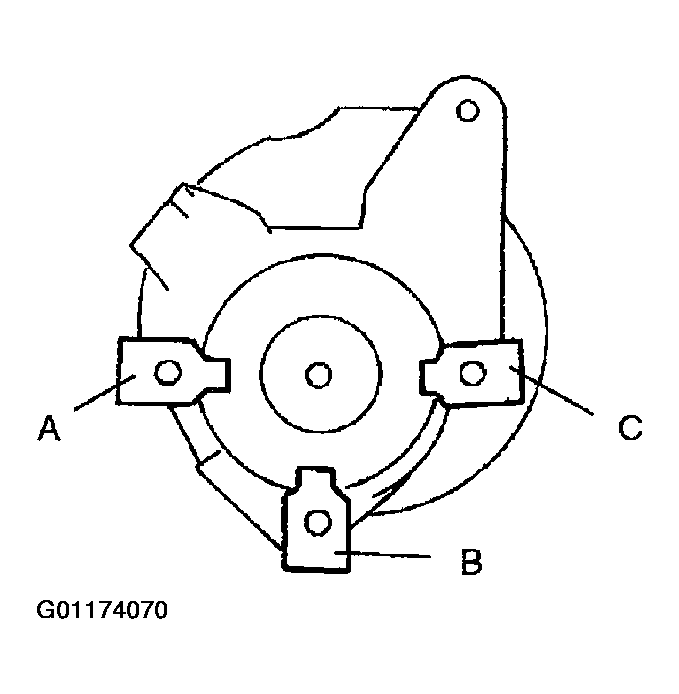

Fig 1: Testing Fuel Gauge (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

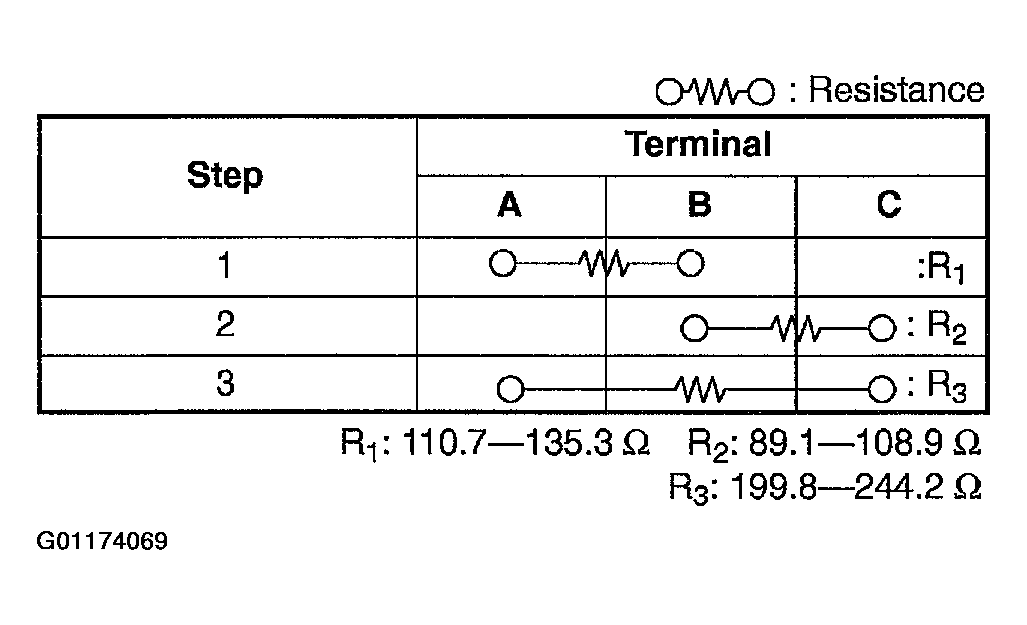

Fig 2: Testing Fuel Gauge (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
