DTC 31: Key Reminder Switch On/Off Signal

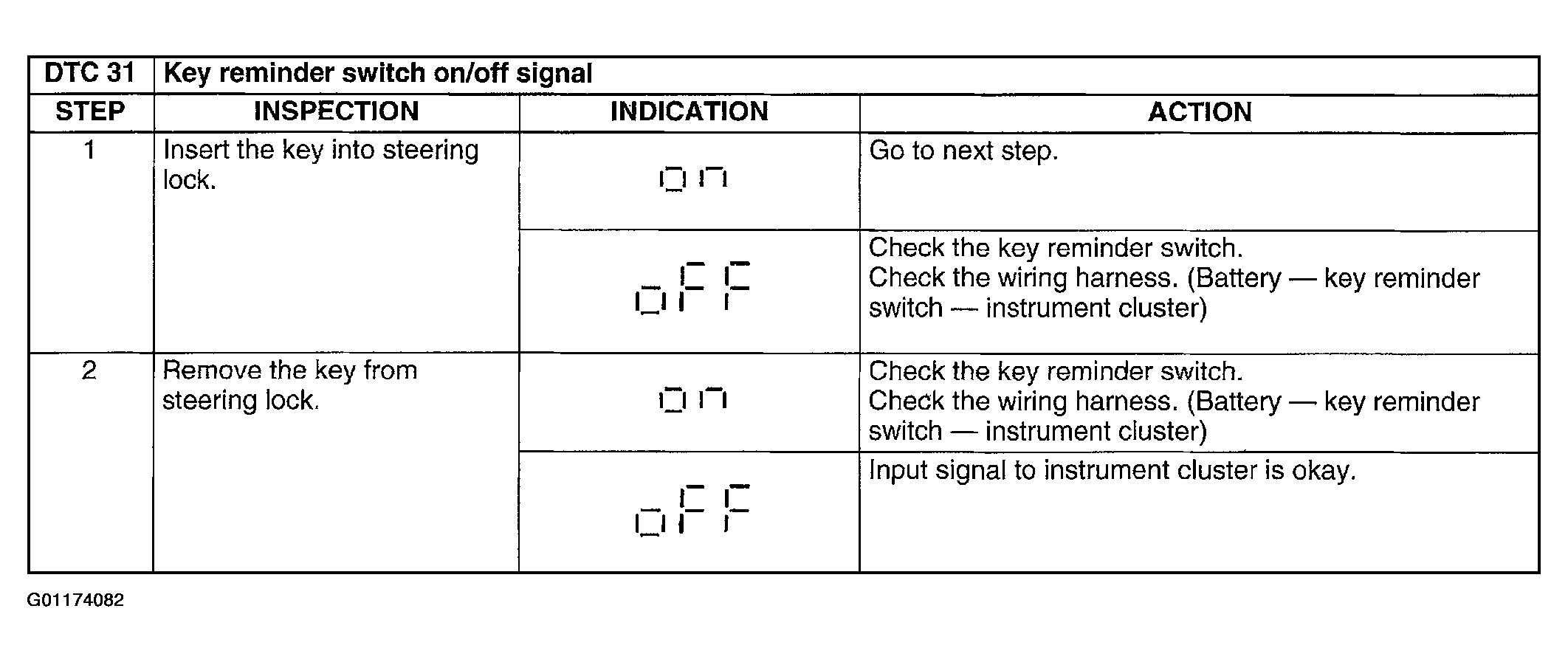

Fig 1: DTC 31: Key Reminder Switch On/Off Signal

G01174082

Courtesy of MAZDA MOTORS CORP.
