DTC 04: Door Switch On/Off Signal
DTC 04: Door Switch On/Off Signal

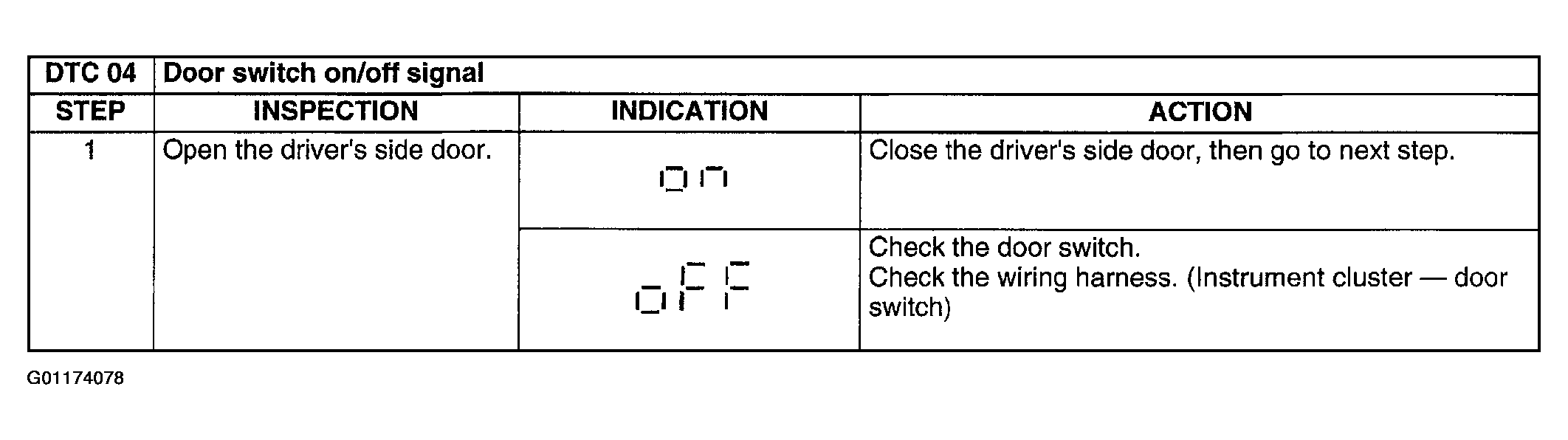

Fig 1: DTC 04: Door Switch On/Off Signal (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

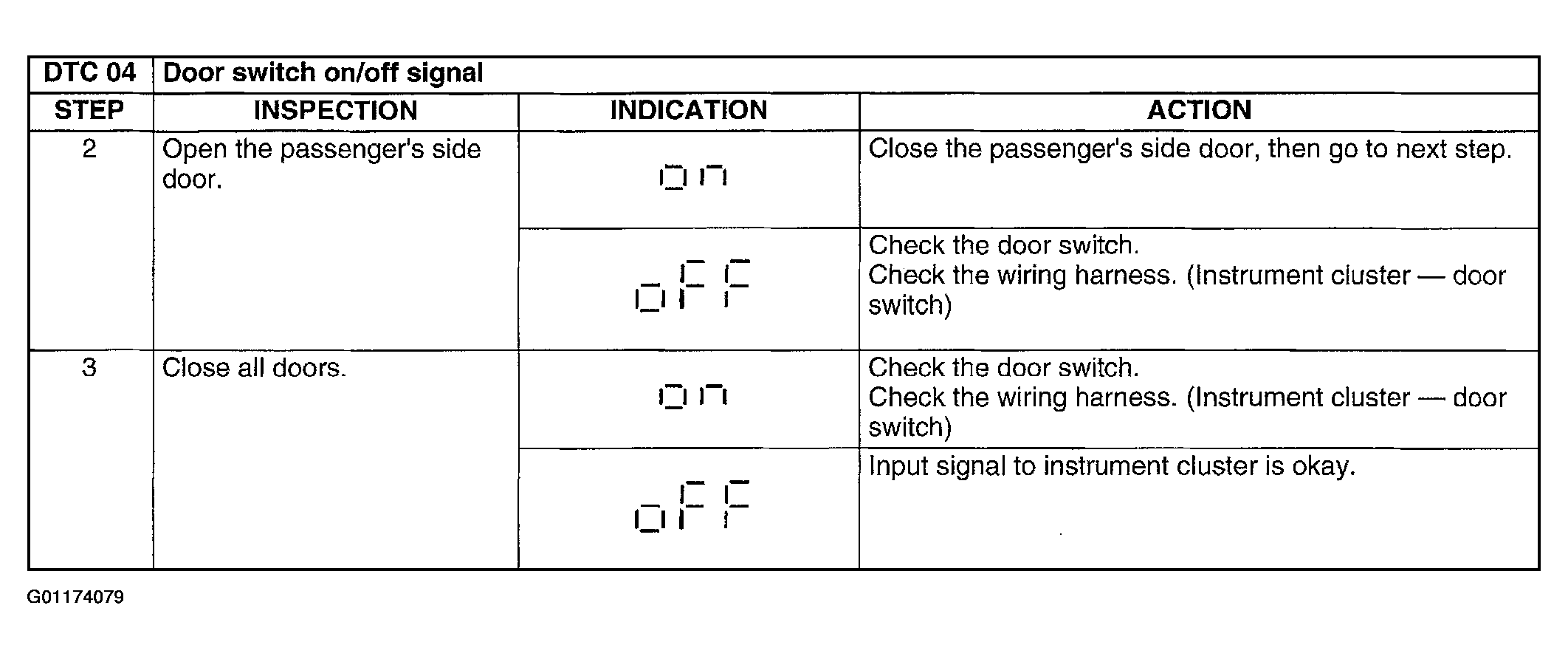

Fig 2: DTC 04: Door Switch On/Off Signal (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
