DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48): Abs Wheel Speed Sensor/Sensor Rotor: Notes

CAUTION:
  • When attaching the tester lead to the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) or the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) harness connector, the SST (49 G066 001) must be used. See ABS HU/CM INSPECTION  .

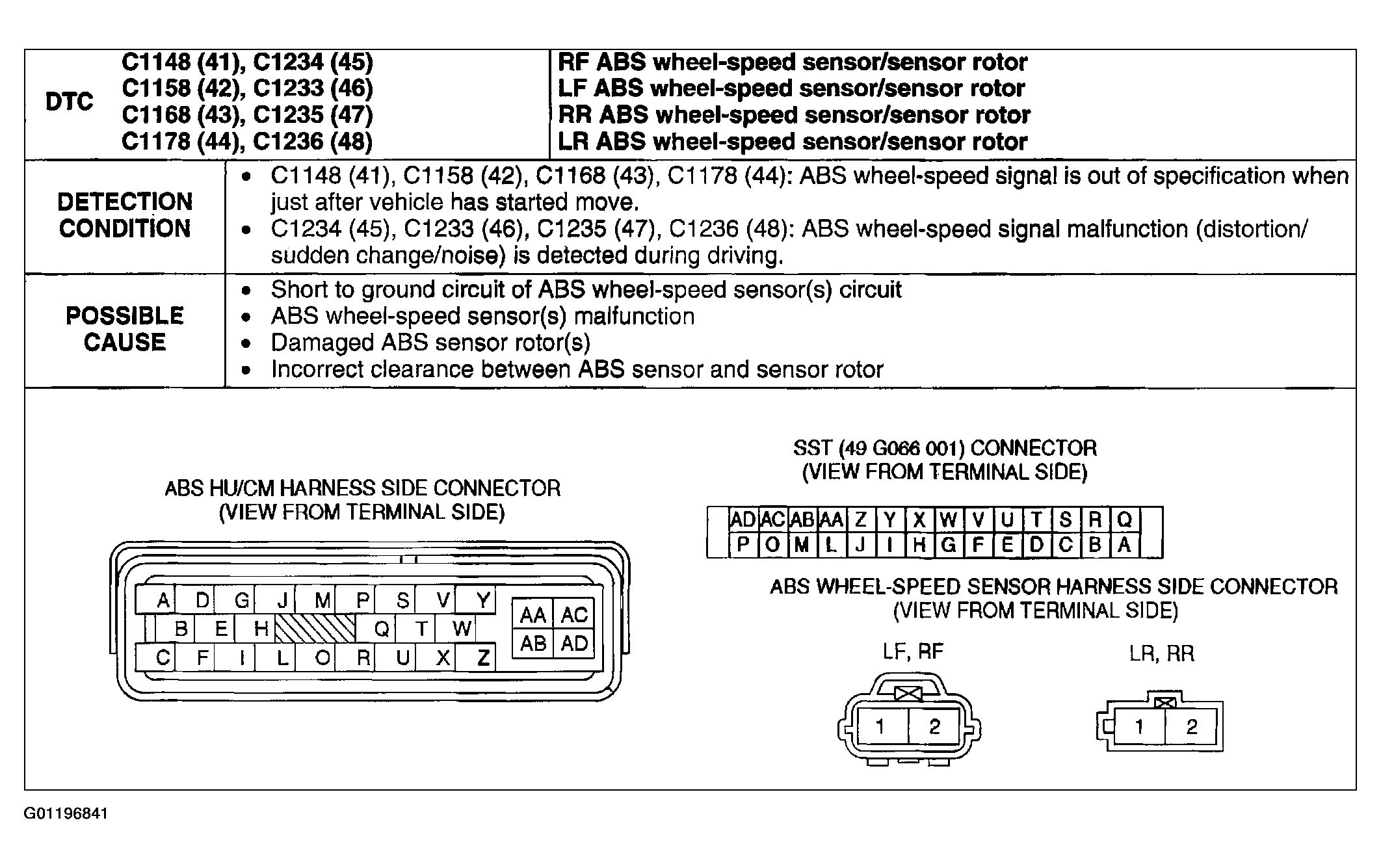

Fig 1: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Detection Condition & Possible Cause
G01196841Courtesy of MAZDA MOTORS CORP.
