Diagnostic Procedure

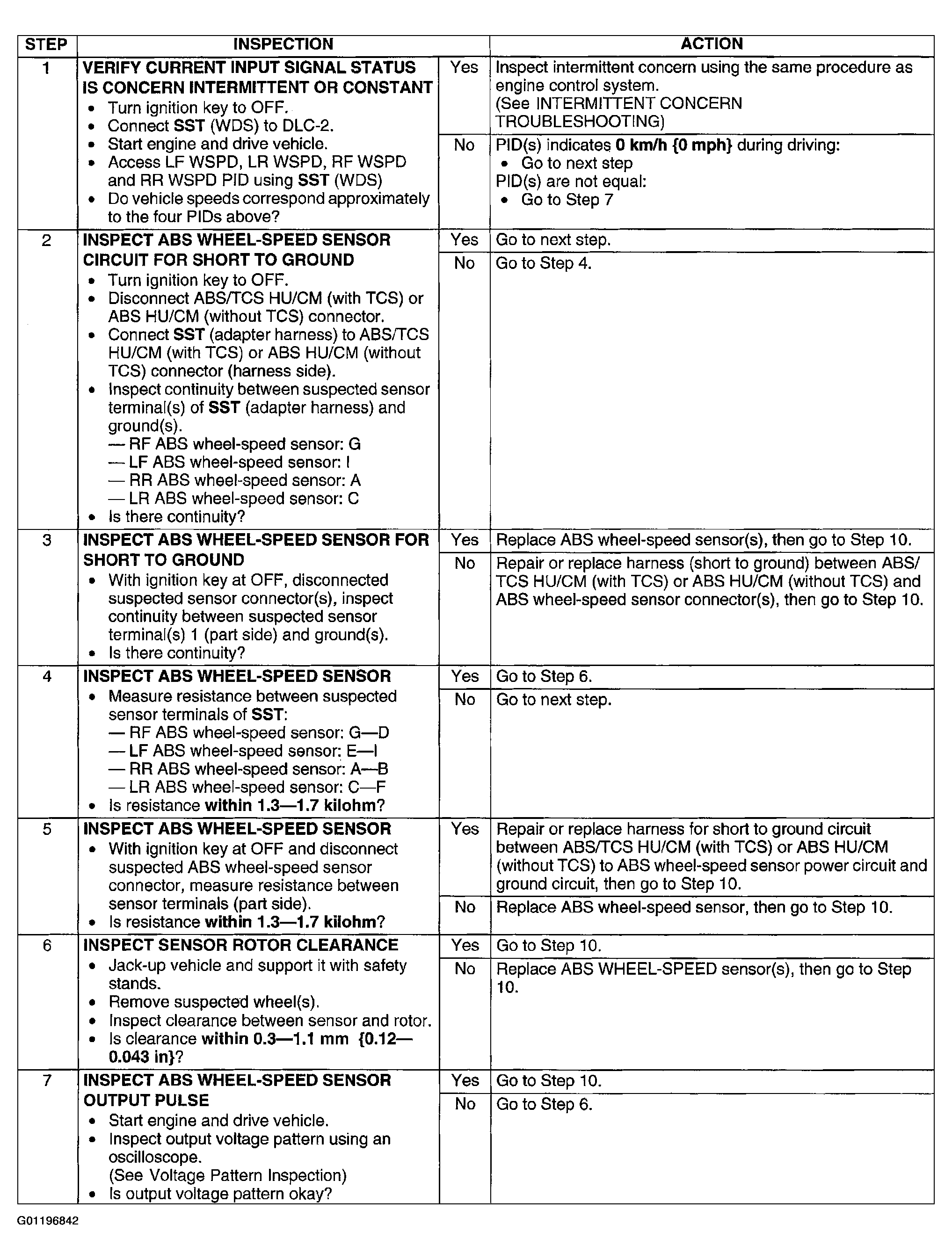

Fig 1: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Diagnostic Procedure (1 Of 2)
G01196842Courtesy of MAZDA MOTORS CORP.

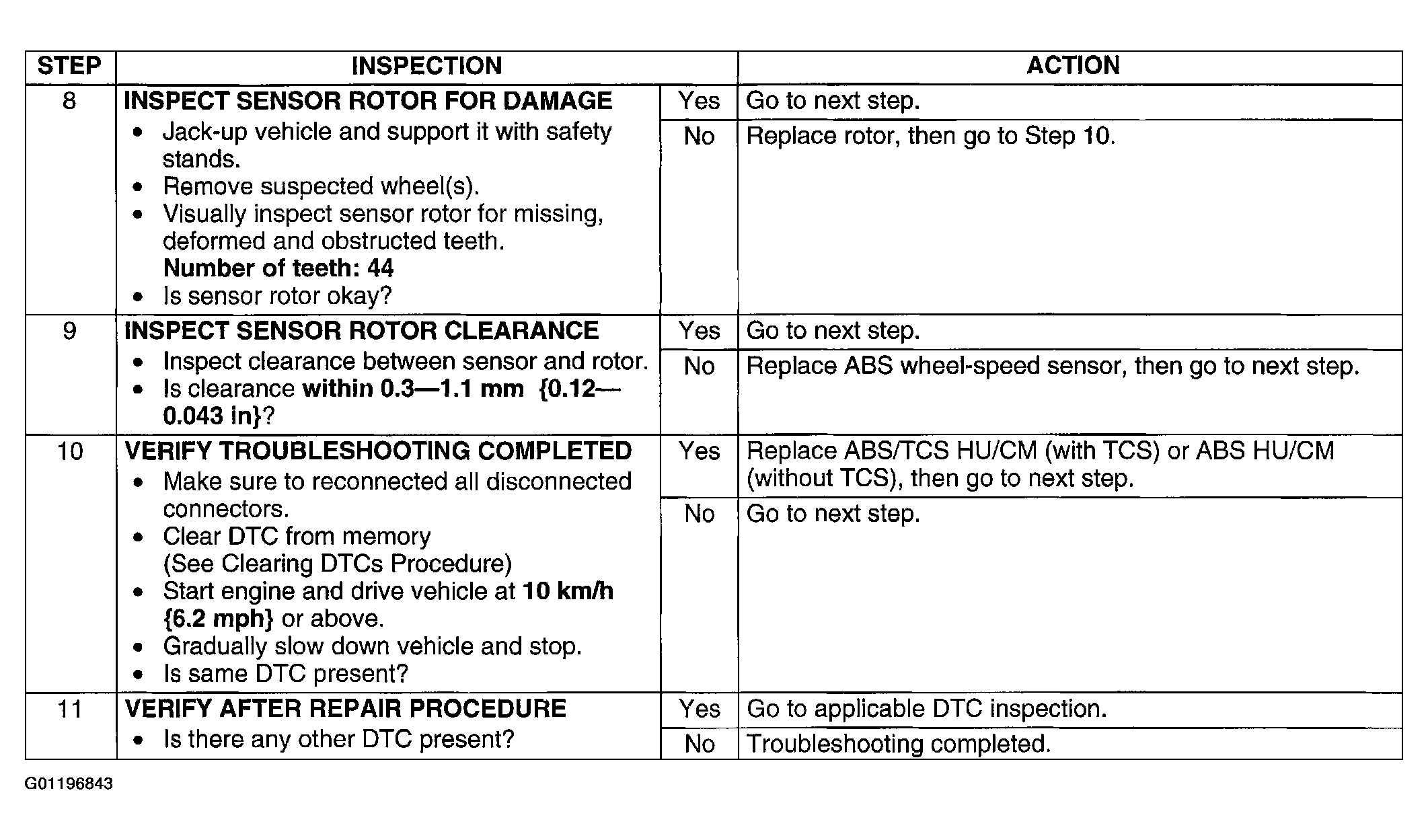

Fig 2: DTC C1148 (41), C1158 (42), C1168 (43), C1178 (44), C1233 (46), C1234 (45), C1235 (47), C1236 (48) Diagnostic Procedure (2 Of 2)
G01196843Courtesy of MAZDA MOTORS CORP.
