Disc & Drum: Overhaul

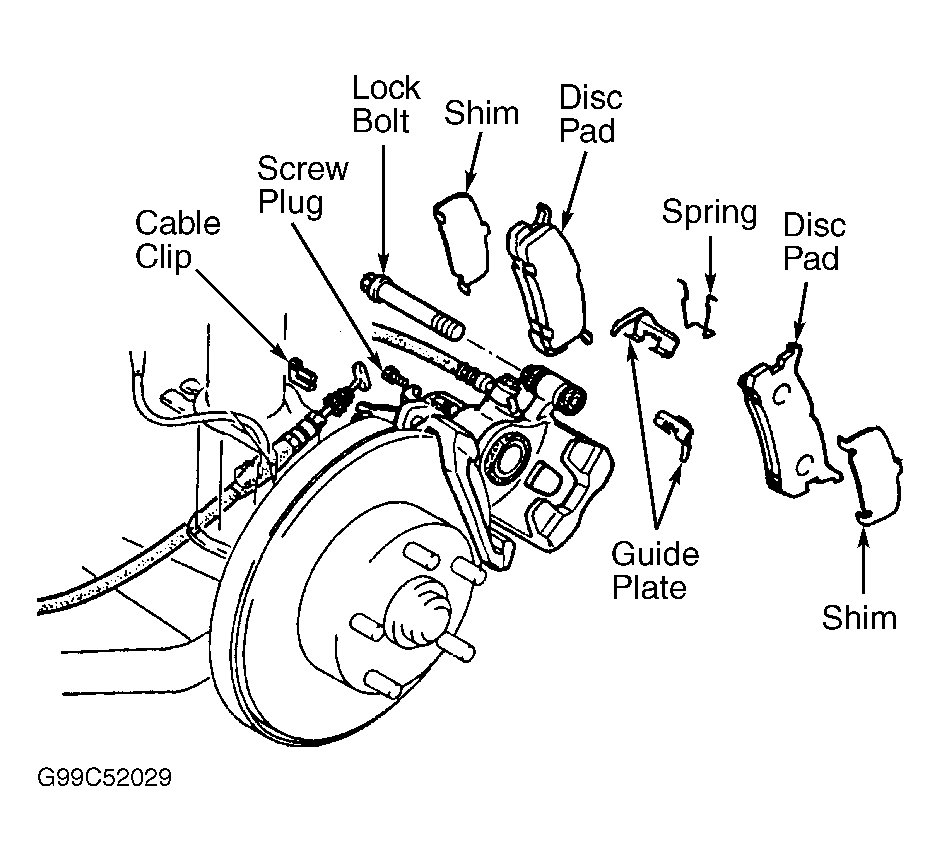

NOTE: Use appropriate illustrations for exploded view of rear caliper assembly and master cylinder. See Figure -Figure . See Fig 1 -Fig 4 . Overhaul information for power brake unit is not available from manufacturer.

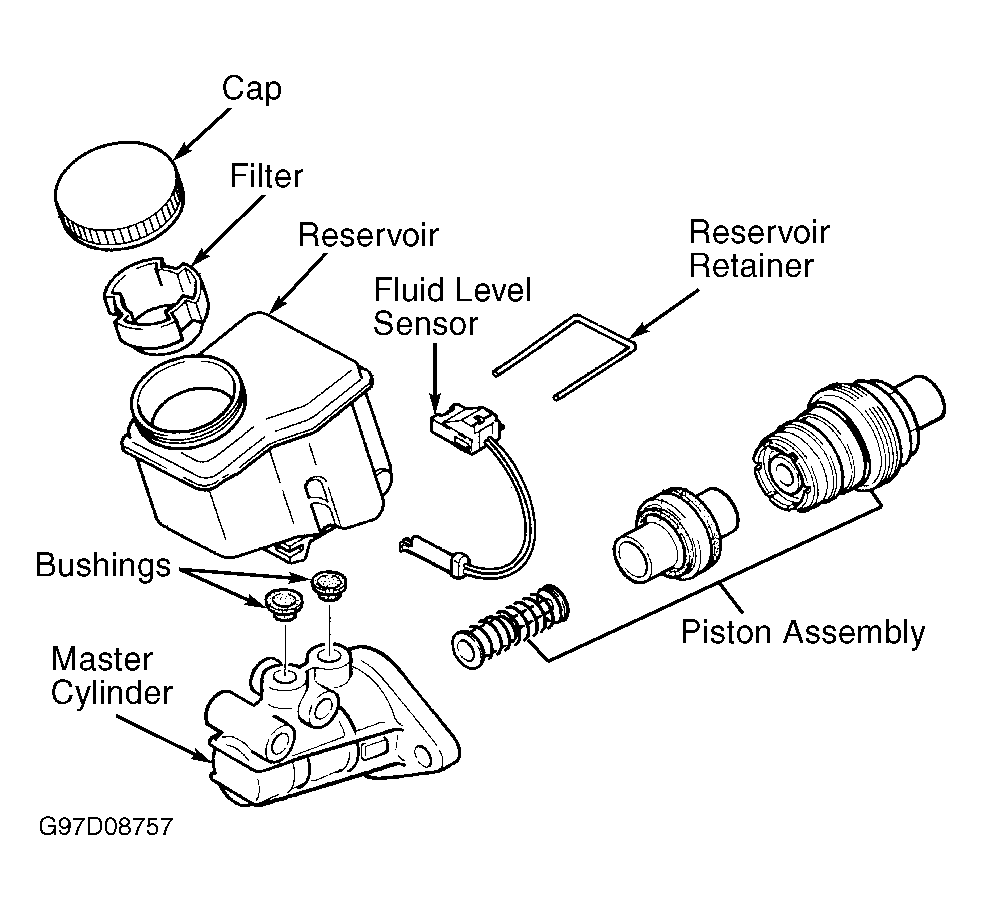

Fig 1: Exploded View Of Master Cylinder (Protege)

Courtesy of MAZDA MOTORS CORP.

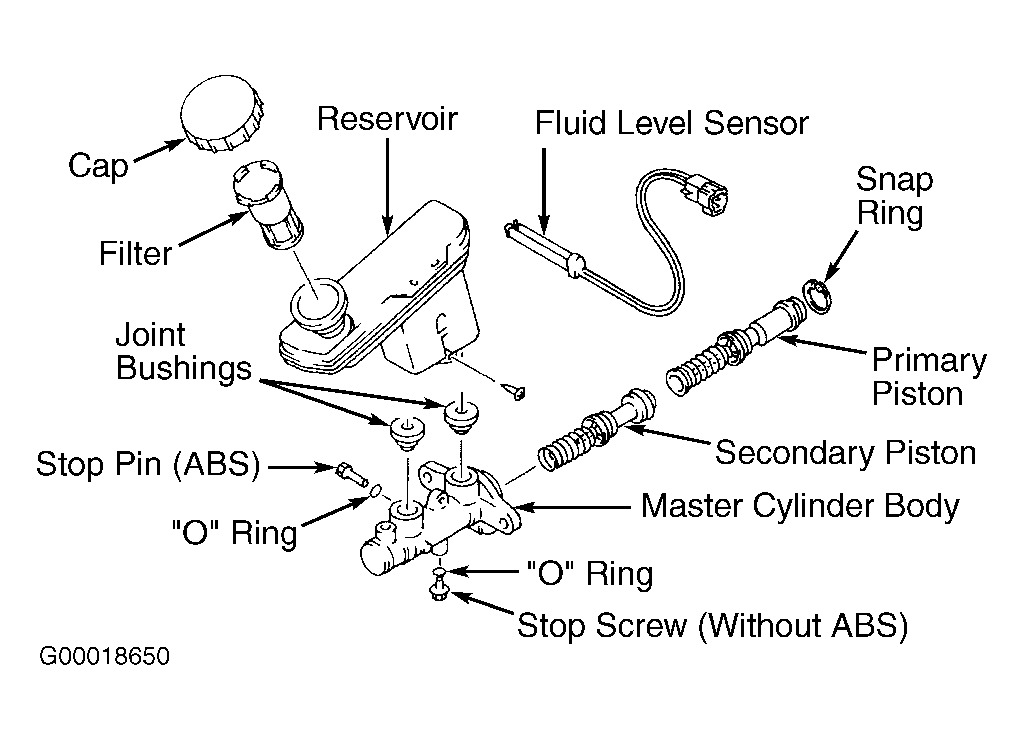

Fig 2: Exploded View Of Master Cylinder (Millenia Shown; Tribute Is Similar)

Courtesy of MAZDA MOTORS CORP.

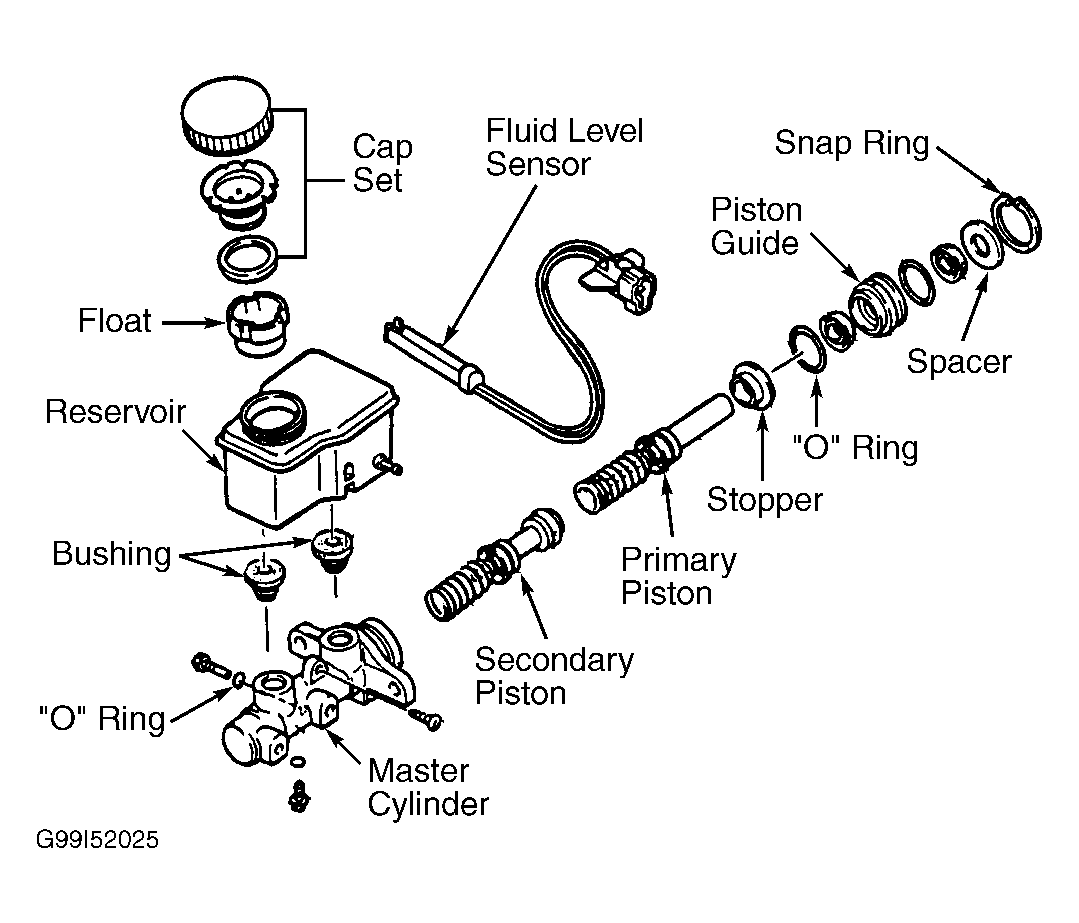

Fig 3: Exploded View Of Master Cylinder (MPV)

Courtesy of MAZDA MOTORS CORP.

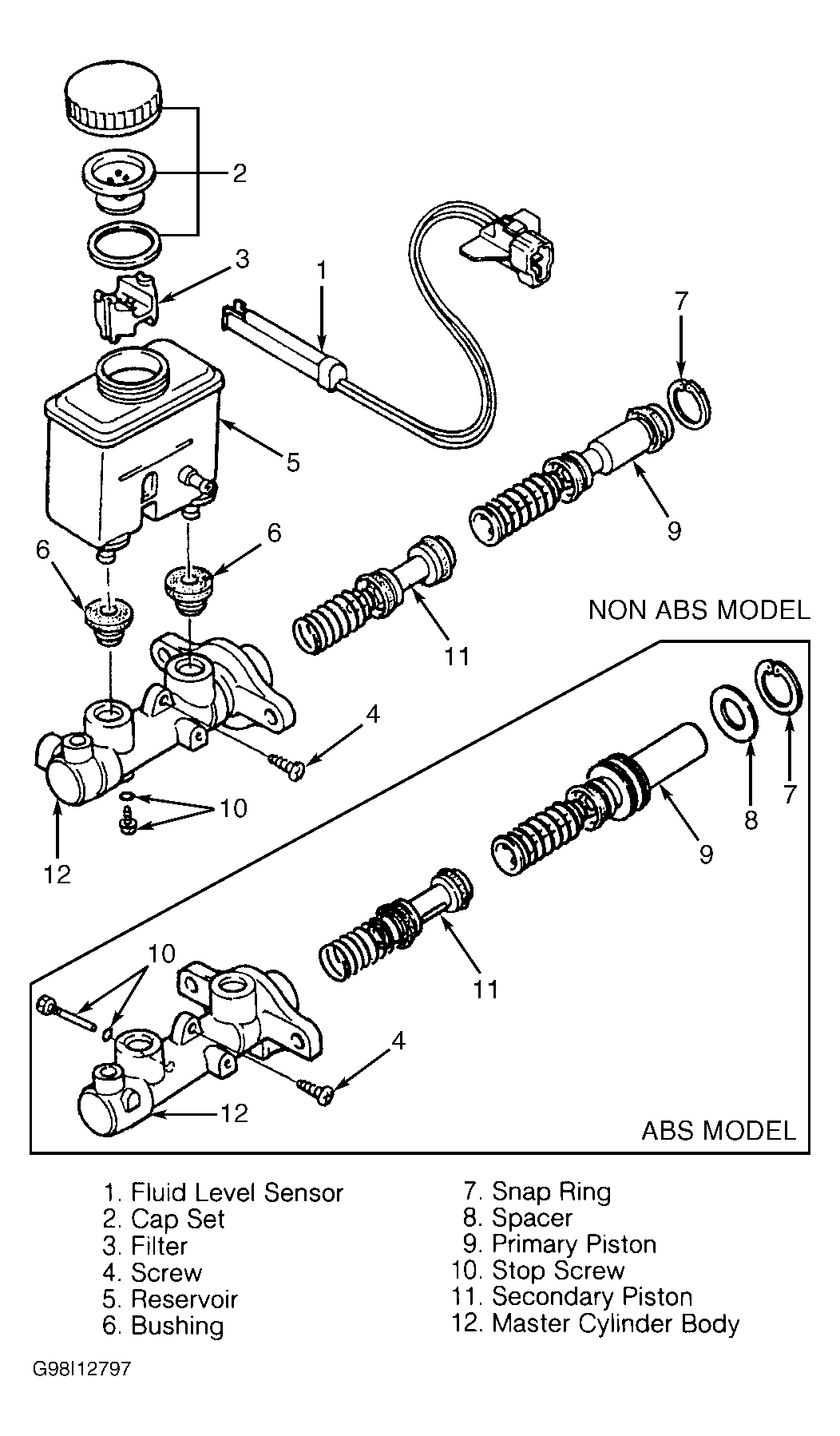

Fig 4: Exploded View Of Master Cylinder (626)

Courtesy of MAZDA MOTORS CORP.
