Brake Pedal Height & Stoplight Switch: Tribute

Tribute has a Brake Pedal Position (BPP) Switch which is self-adjusting during installation. Further adjustments require new switch. No other brake pedal height information is provided by manufacturer.

BRAKE PEDAL HEIGHT SPECIFICATIONS

Application

In. (mm)

Pedal Released

Millenia

⁽¹⁾

MPV

8.27 (210)

Protege

7.28 (185)

626

7.32 (186)

Tribute

⁽²⁾

Pedal Applied ⁽³⁾

Millenia

3.74 (95)

MPV

4.45 (113)

Protege

1.6L Engine

3.46 (88)

2.0L Engine

3.31 (84)

626

2.09 (53)

Tribute

⁽²⁾

⁽¹⁾	See length "L" of Fig 1 .

⁽²⁾	Information unavailable from manufacturer.

⁽³⁾	Minimum height with force of 130-132 Ft. Lbs. (176-179 N.m).

Fig 1: Adjusting Brake Pedal Height (Millenia)

Courtesy of GENERAL MOTORS CORP.

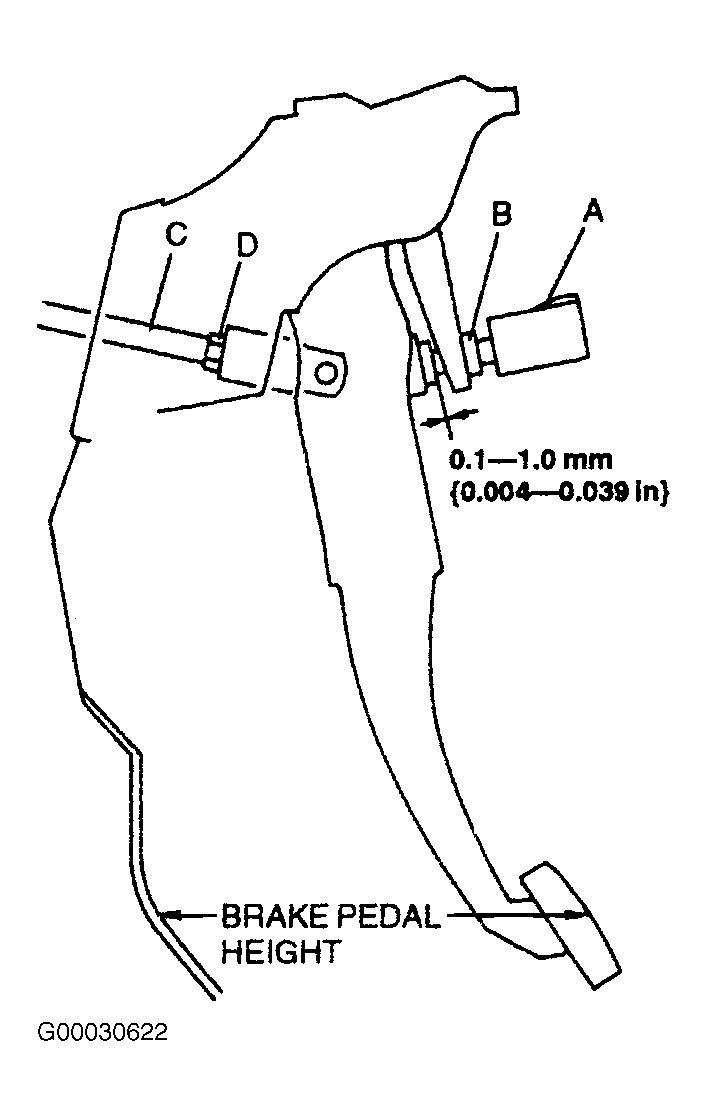

Fig 2: Adjusting Brake Pedal Height (MPV & Protege)

Courtesy of GENERAL MOTORS CORP.
