Automatic Transmission - Hydraulic Diagrams - 4R44E & 4R55E

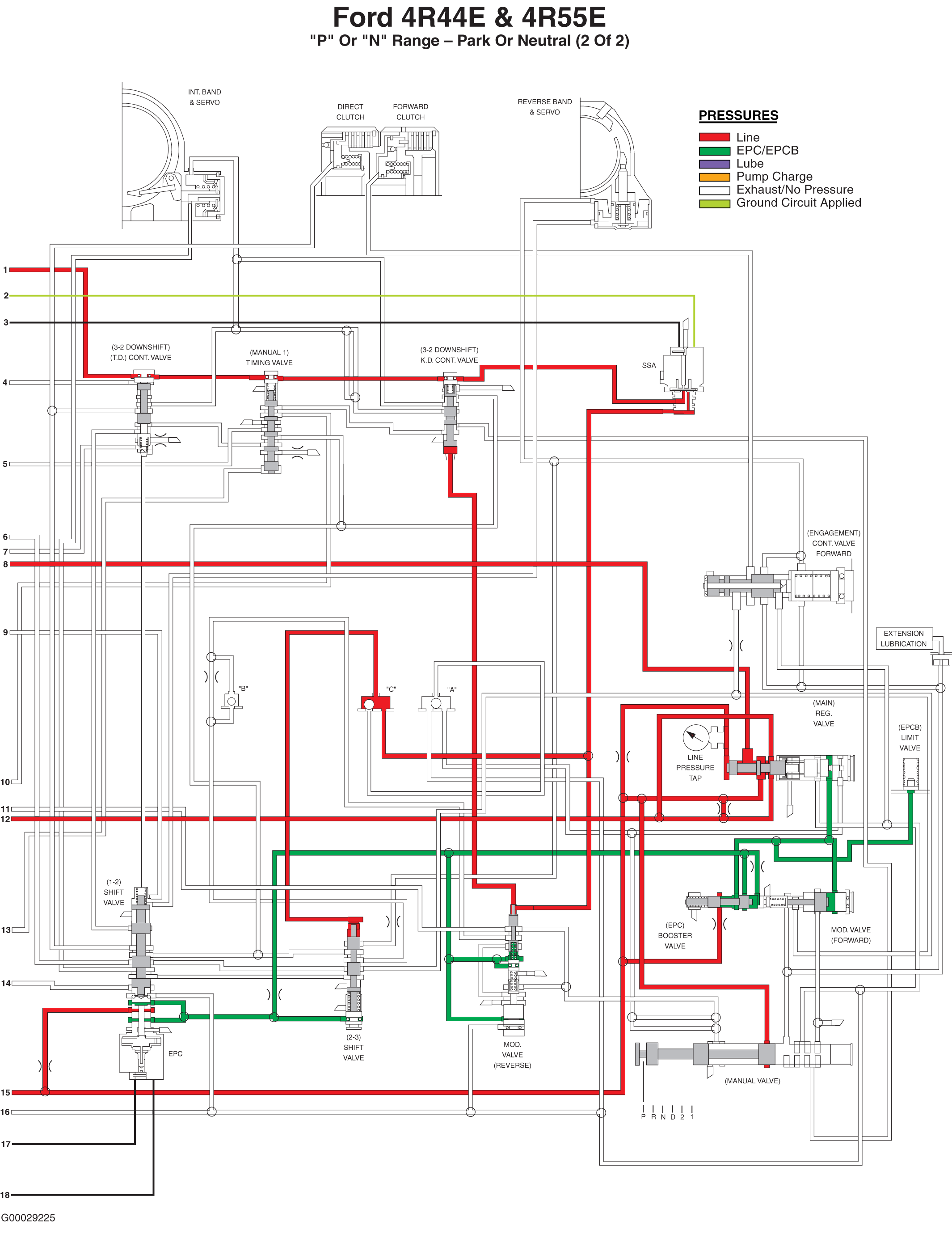

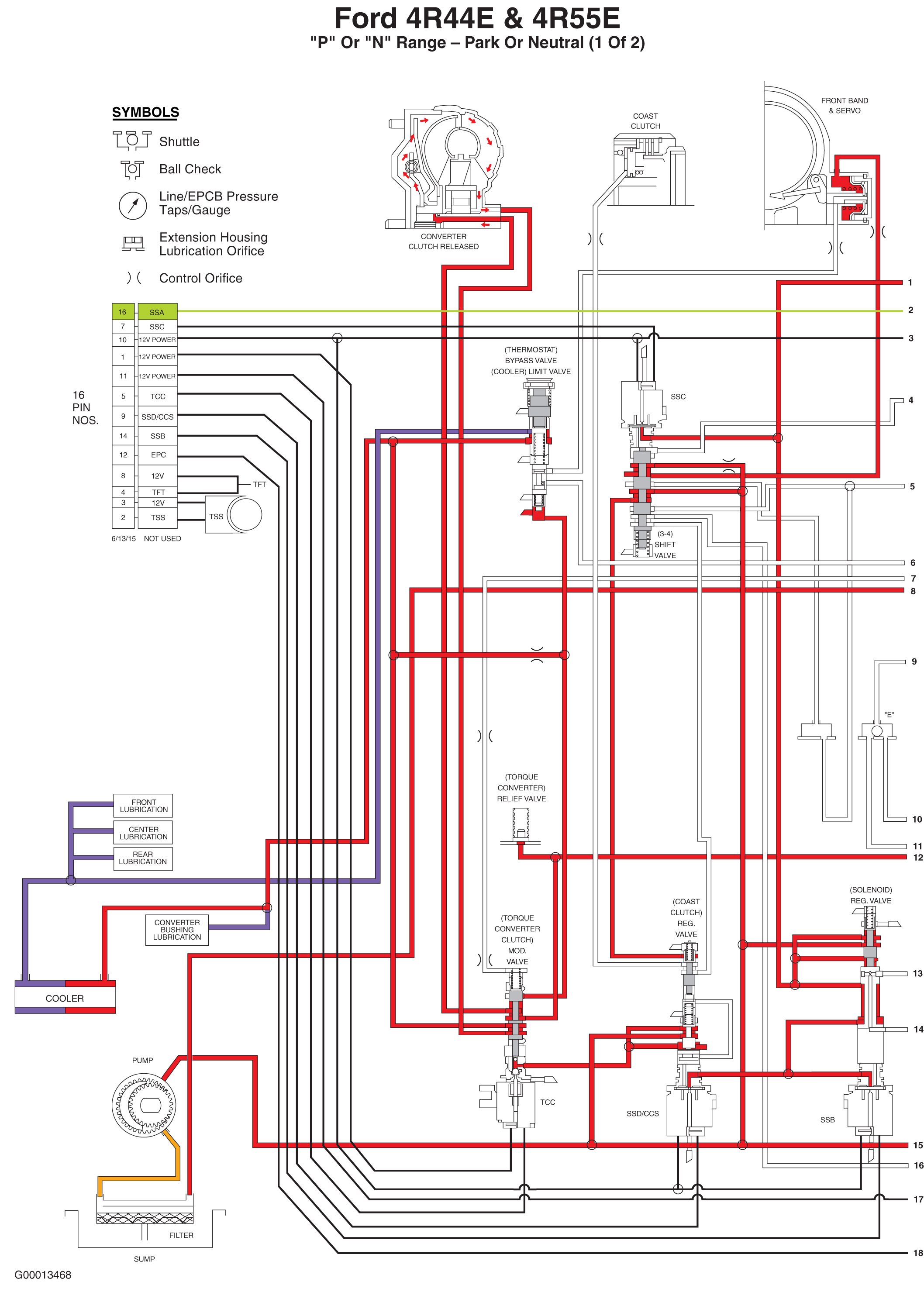

Fig 1: "P" Or "N" Position - Park Or Neutral (1 Of 2)

Fig 2: "P" Or "N" Position - Park Or Neutral (2 Of 2)

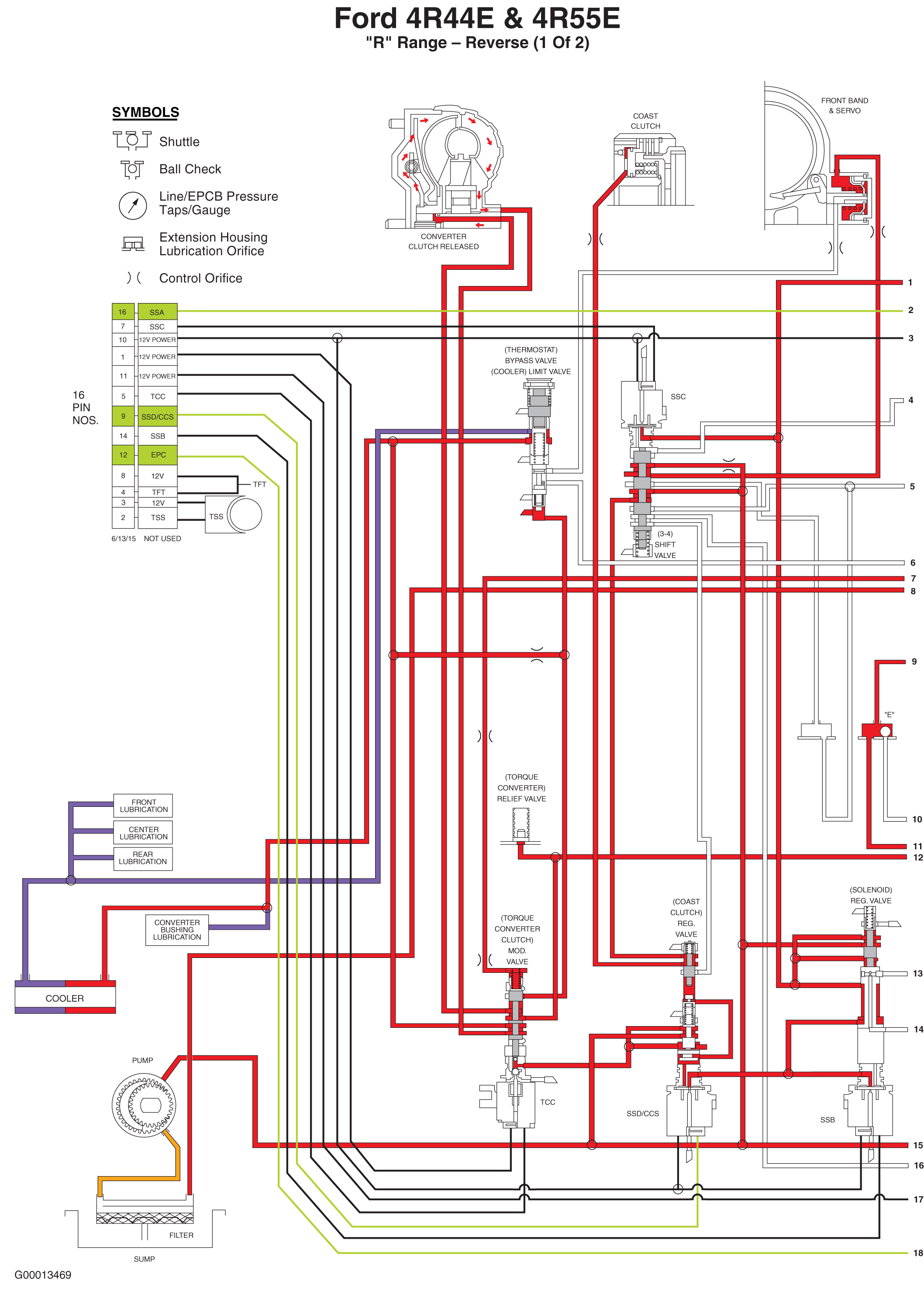

Fig 3: "R" Position - Reverse Gear (1 Of 2)

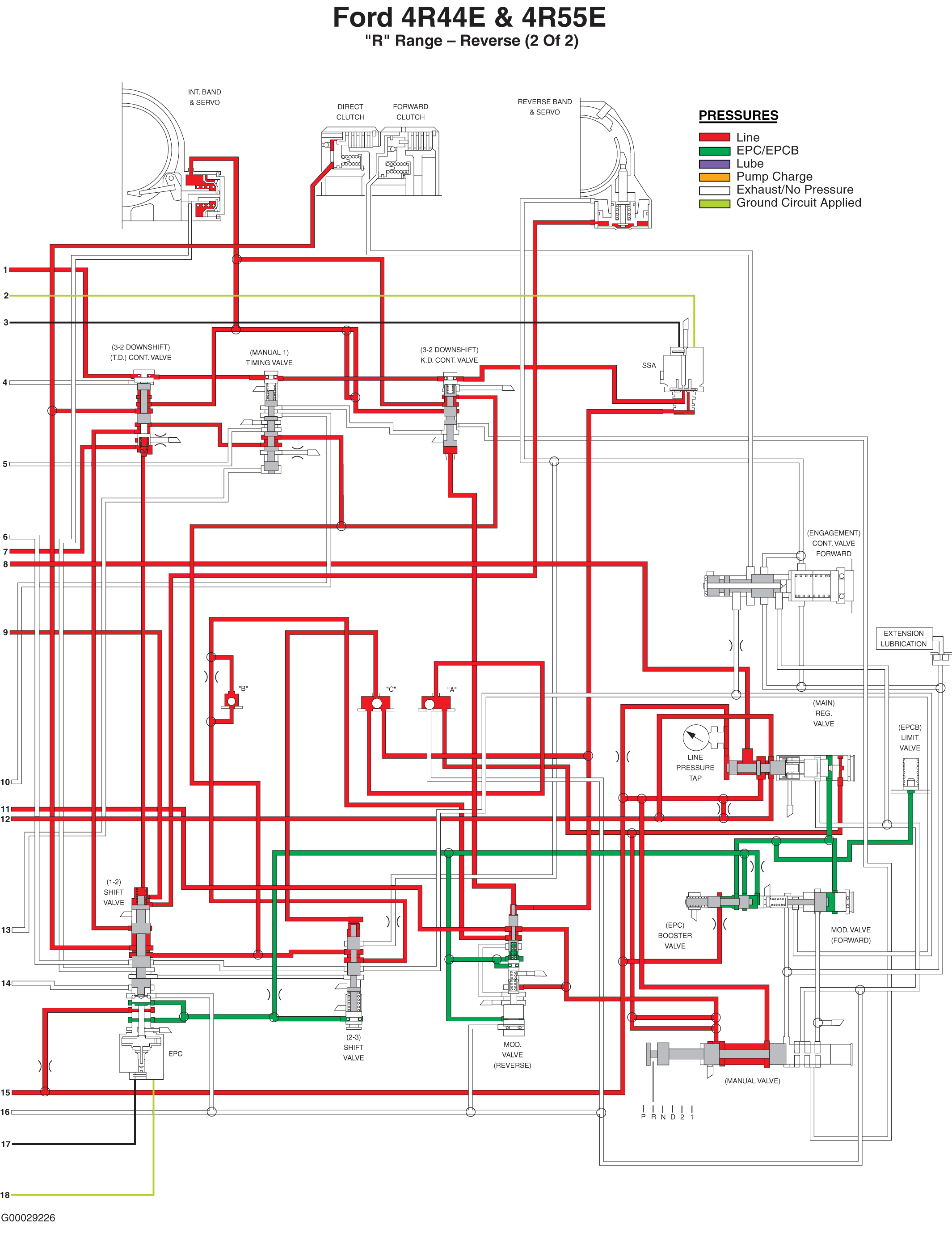

Fig 4: "R" Position - Reverse Gear (2 Of 2)

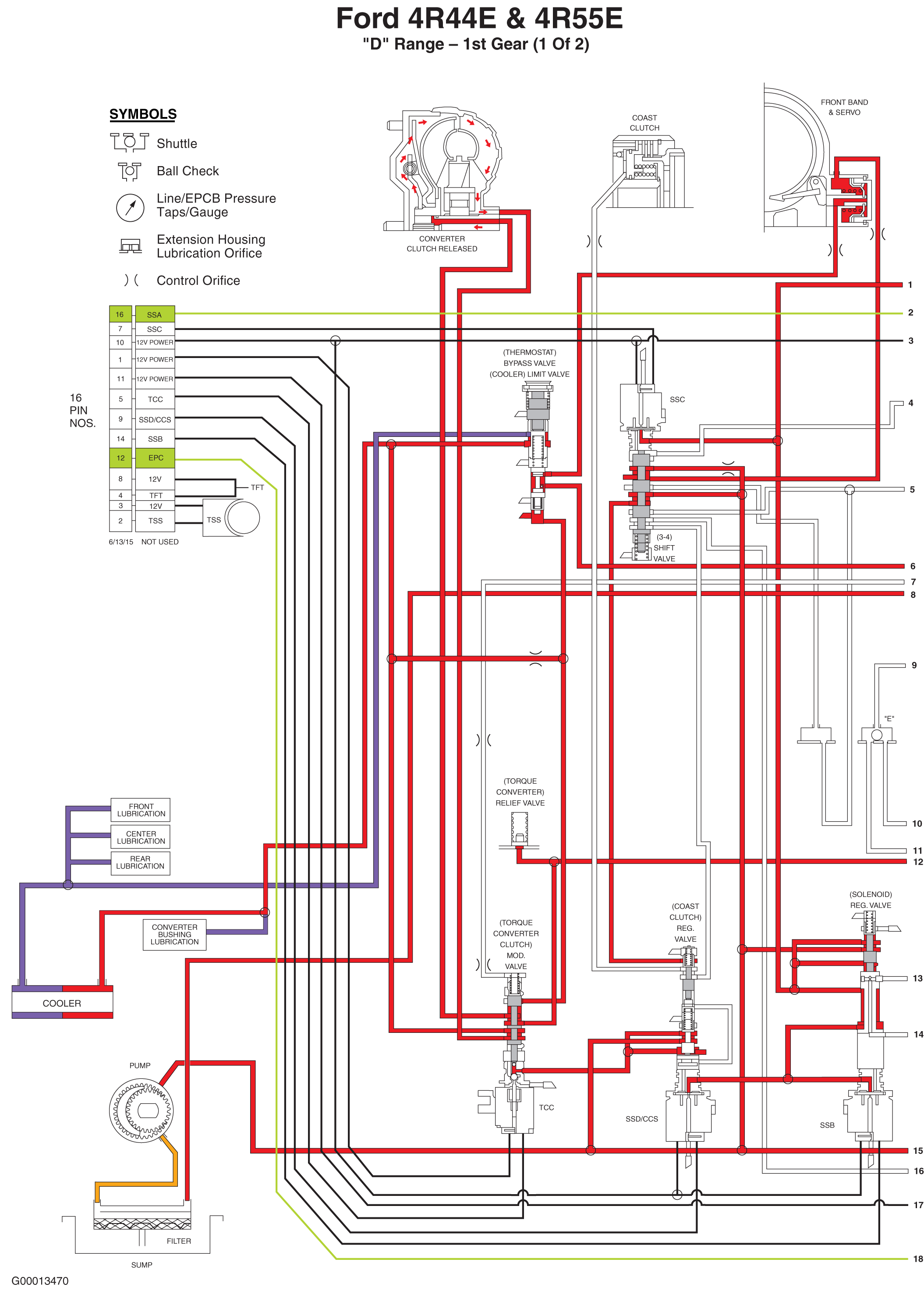

Fig 5: "1" Position - 1st Gear (1 Of 2)

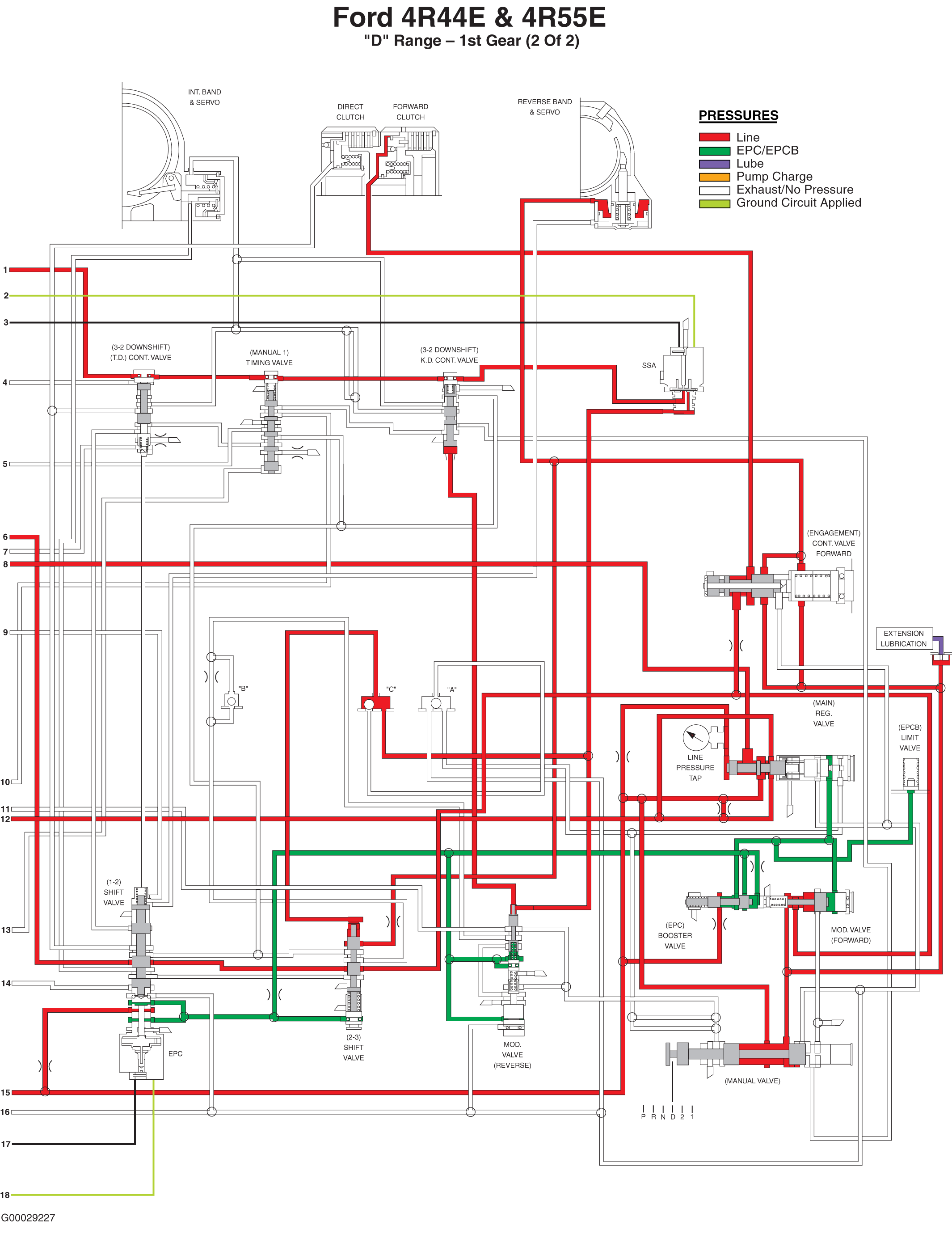

Fig 6: "1" Position - 1st Gear (2 Of 2)

Fig 7: "2" Position - 2nd Gear (1 Of 2)

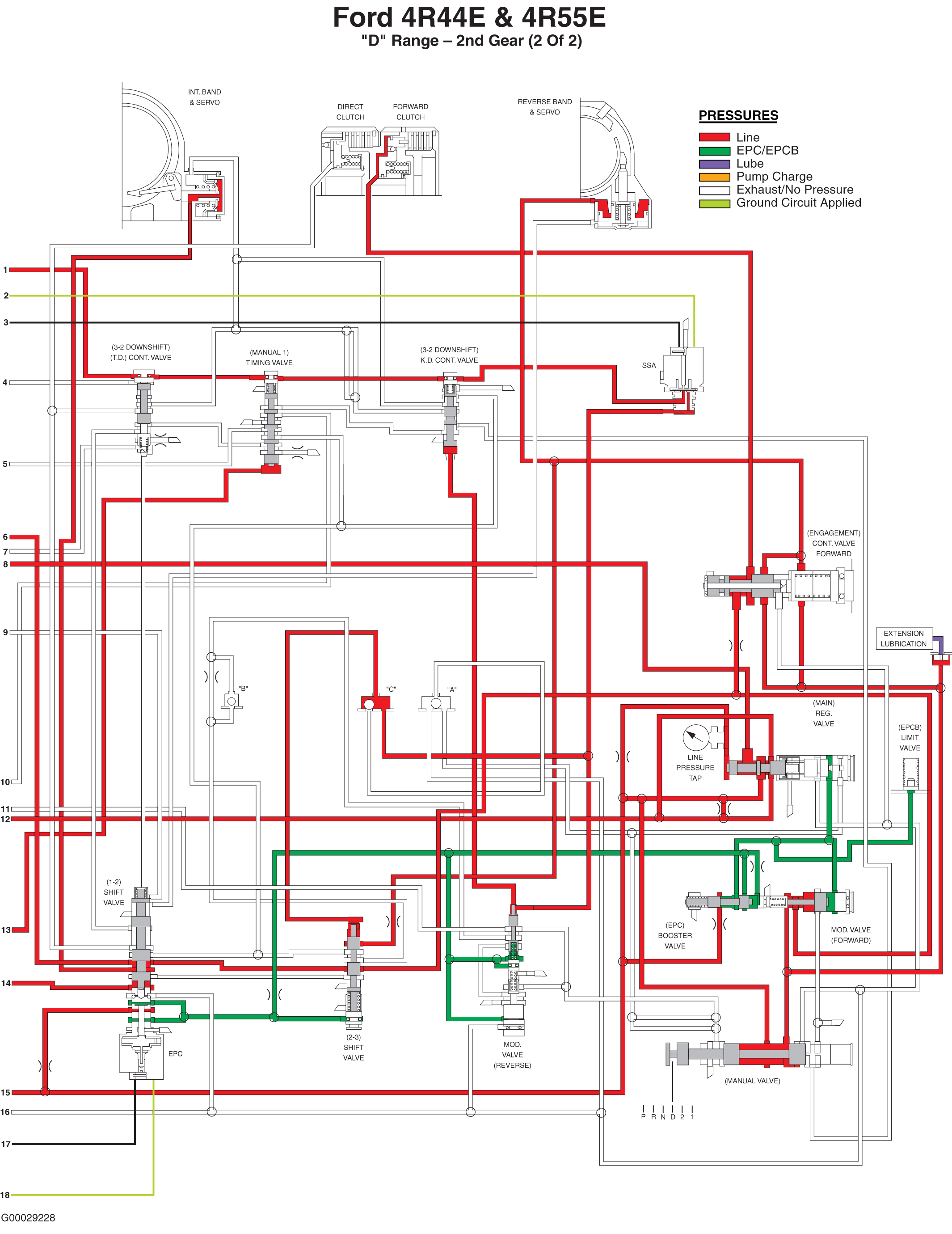

Fig 8: "2" Position - 2nd Gear (2 Of 2)

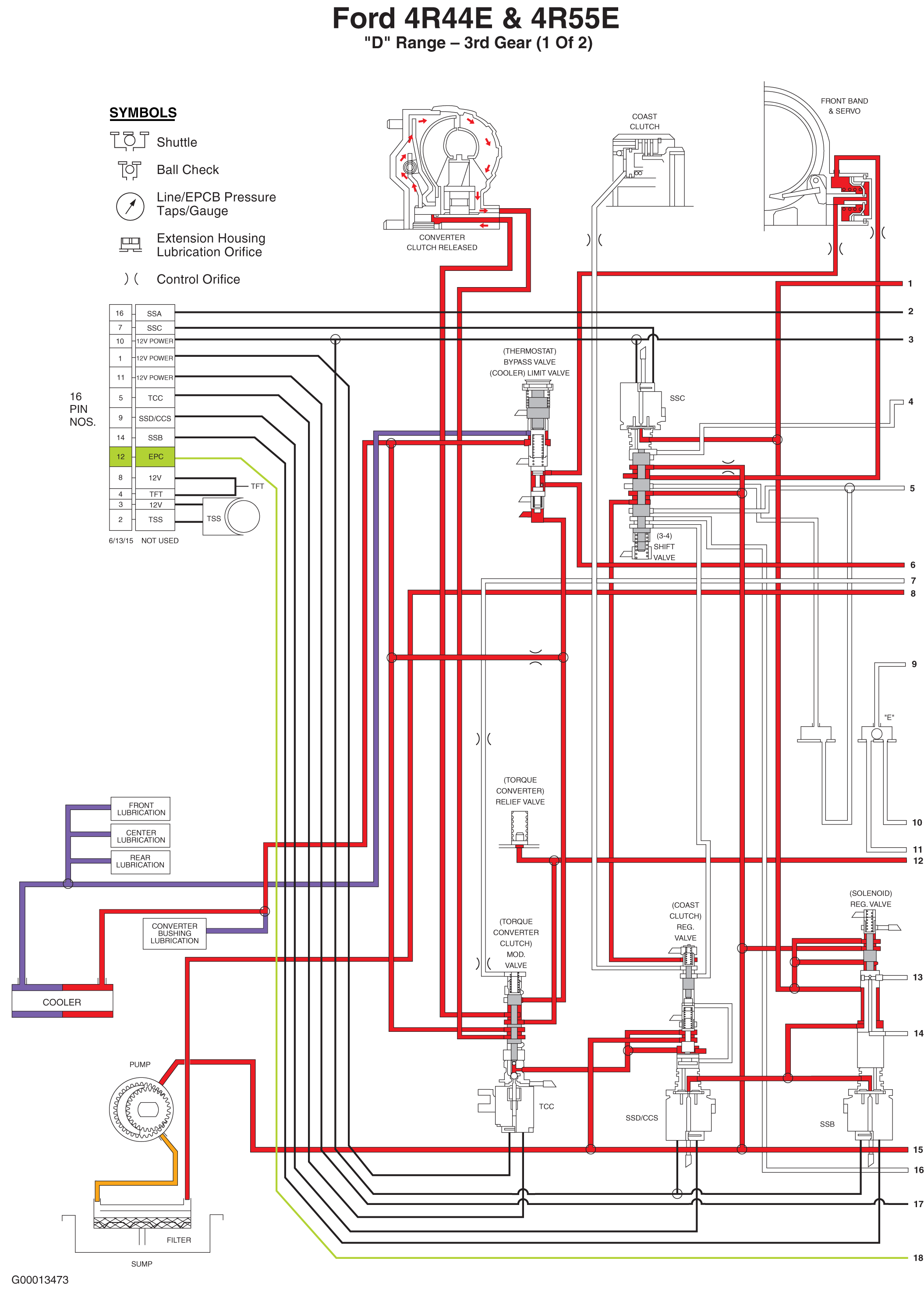

Fig 9: "D" Position - 3rd Gear (1 Of 2)

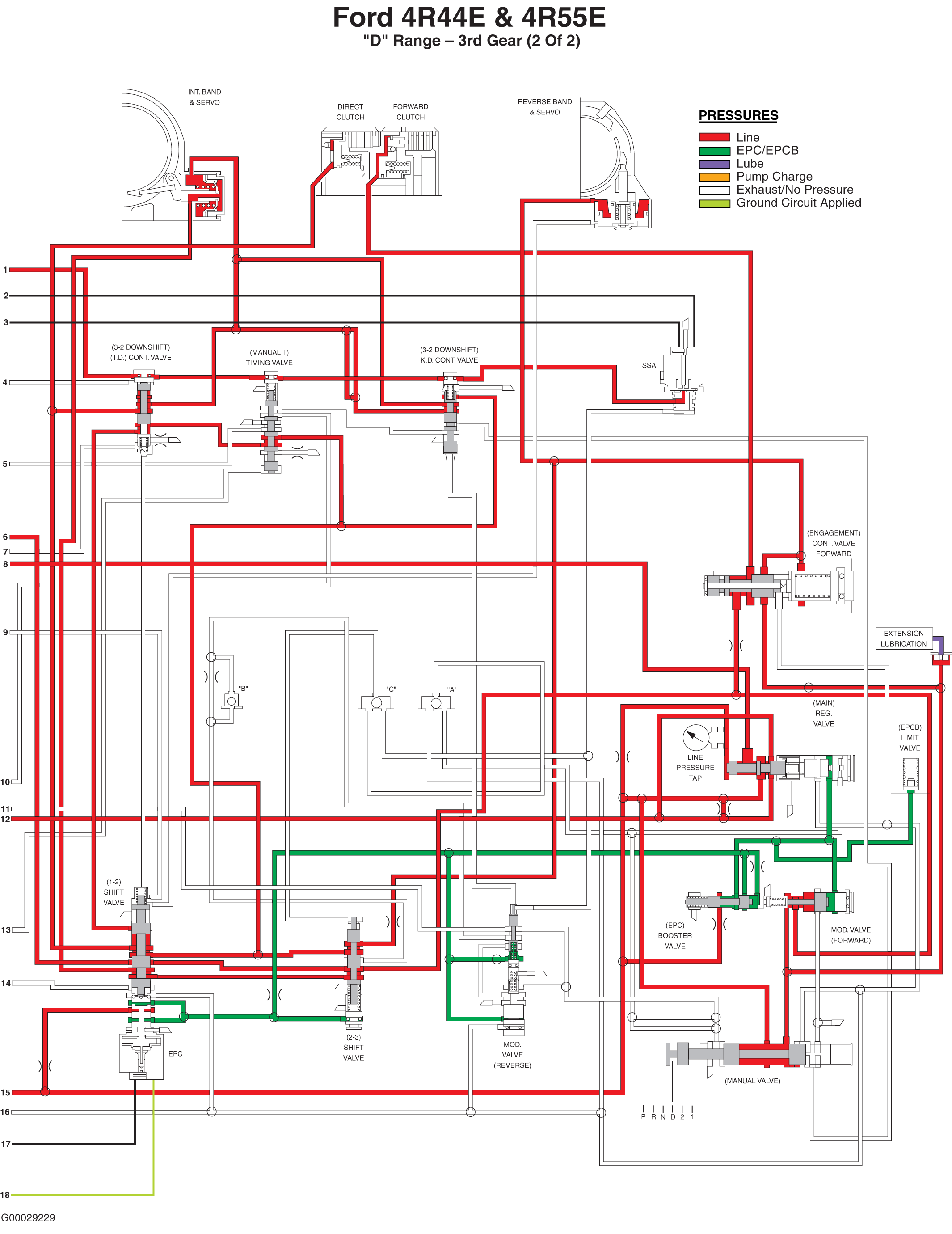

Fig 10: "D" Position - 3rd Gear (2 Of 2)

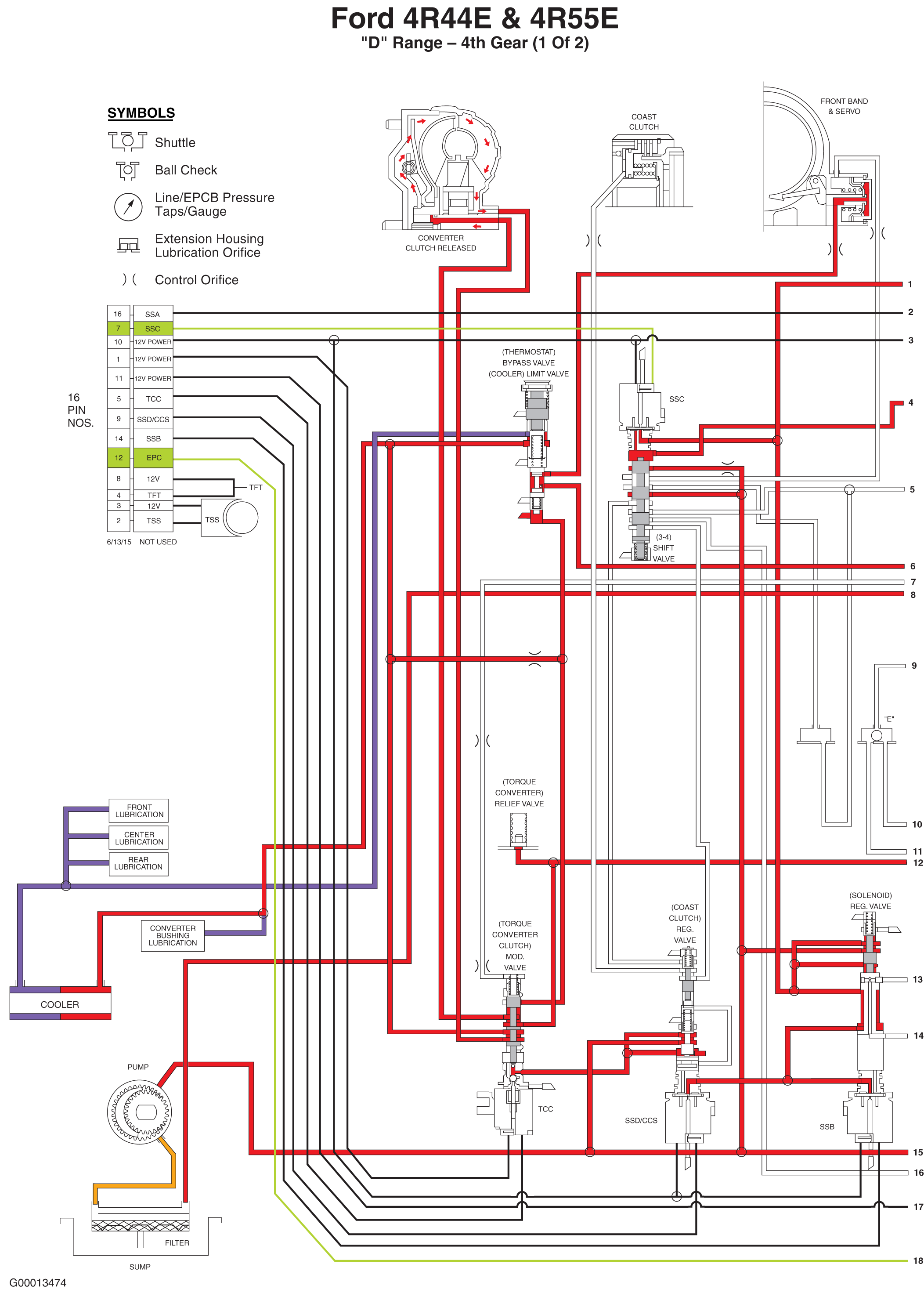

Fig 11: "D" Position - 4th Gear (1 Of 2)

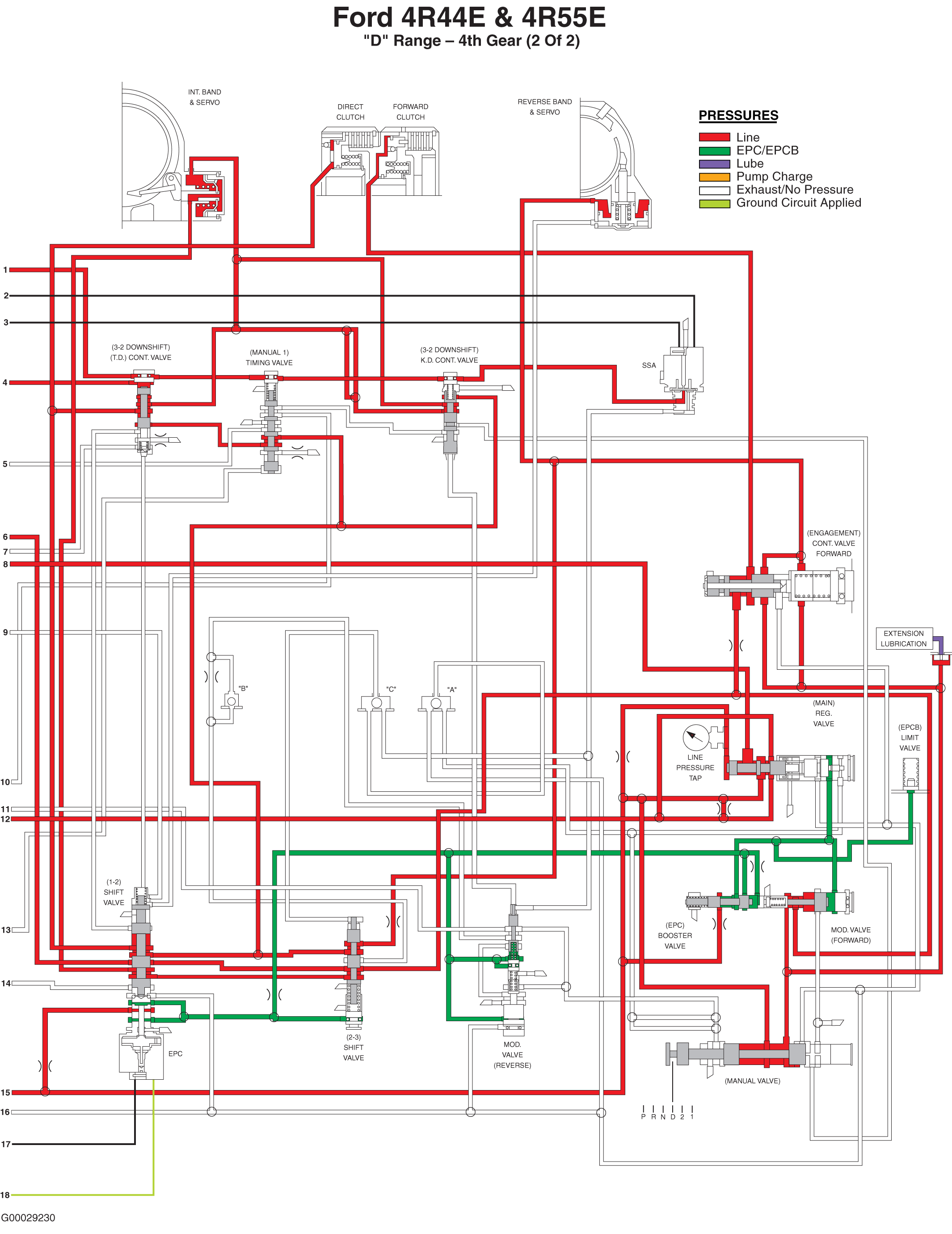

Fig 12: "D" Position - 4th Gear (2 Of 2)

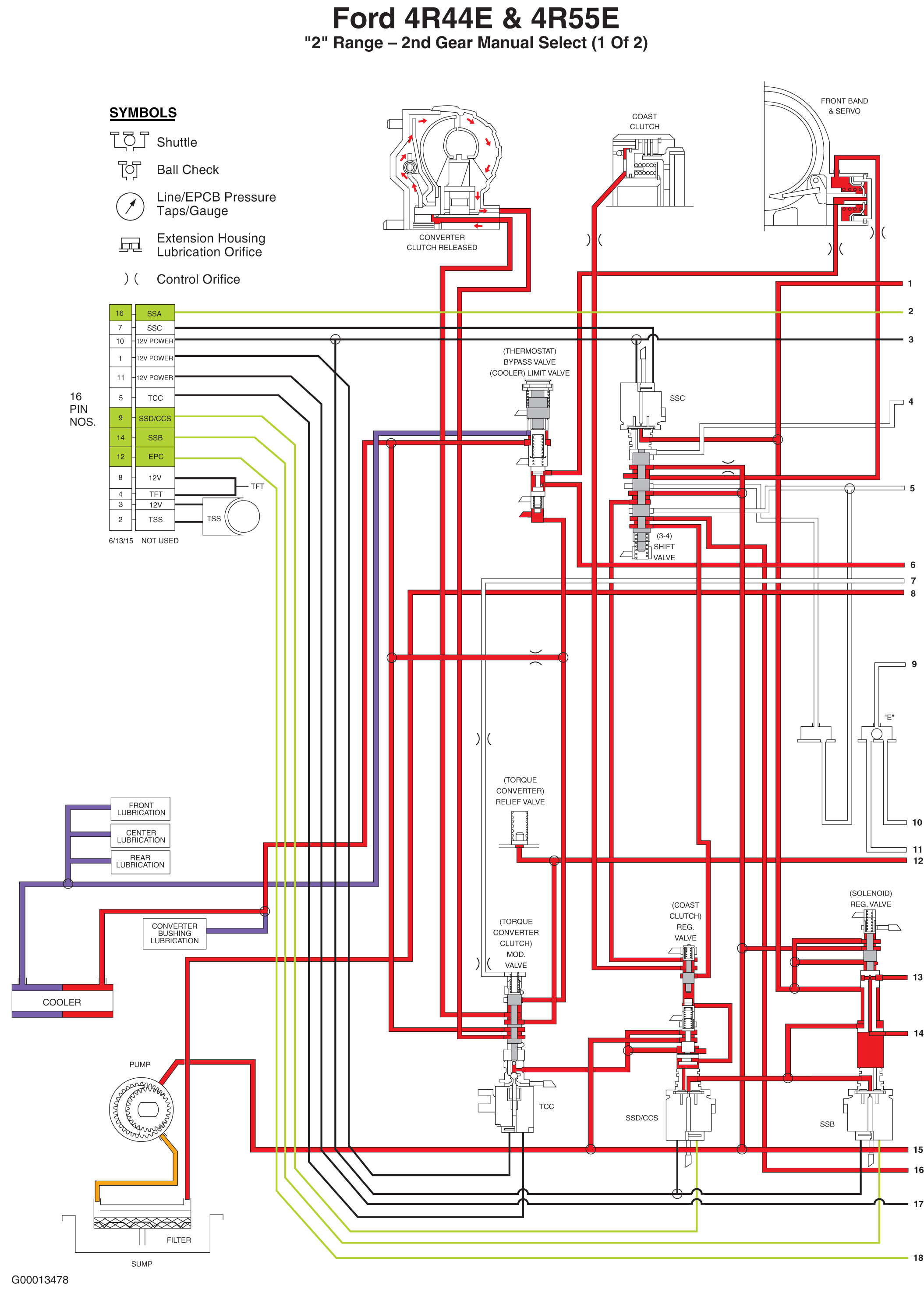

Fig 13: "2" Position - Manual Select (1 Of 2)

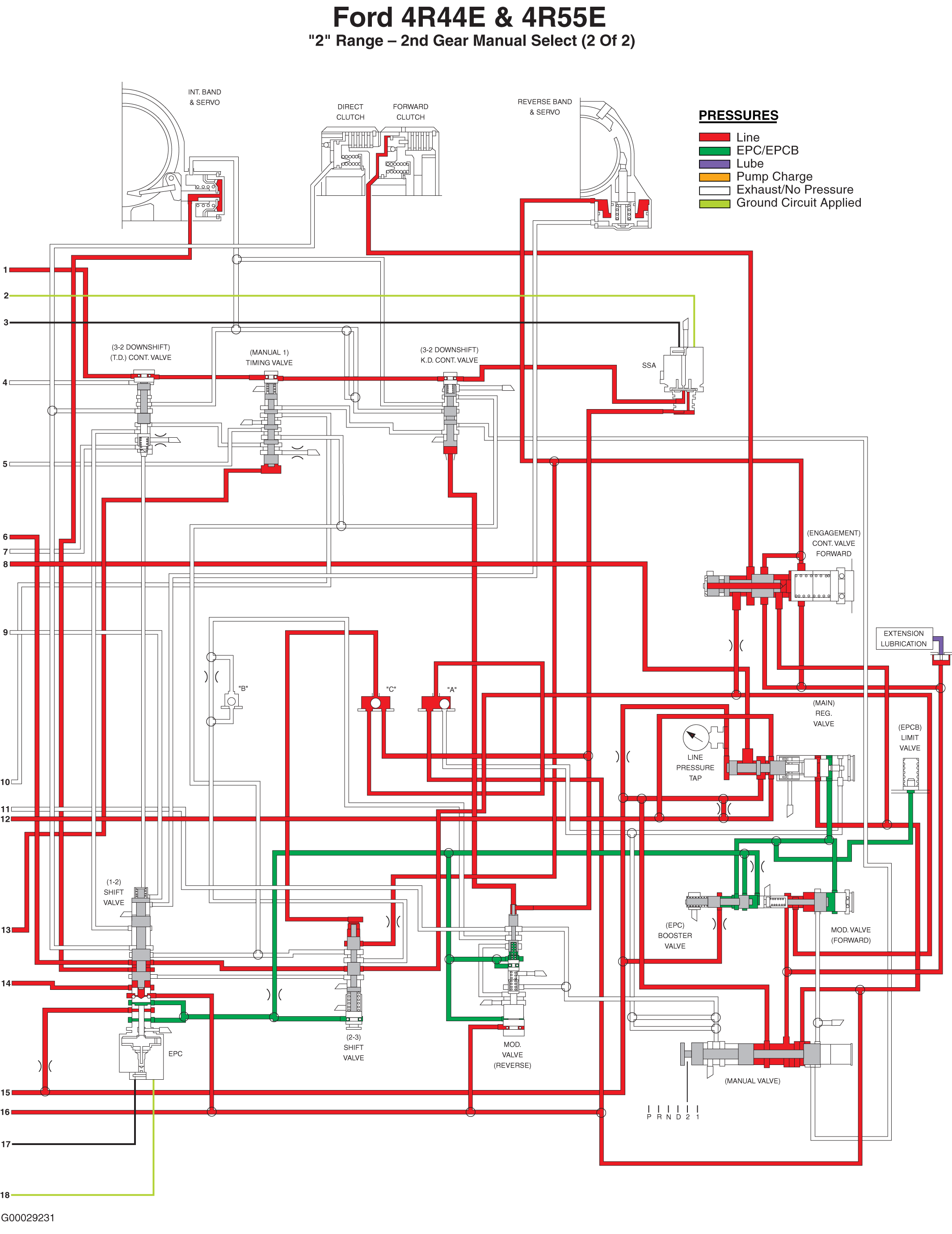

Fig 14: "2" Position - Manual Select (2 Of 2)

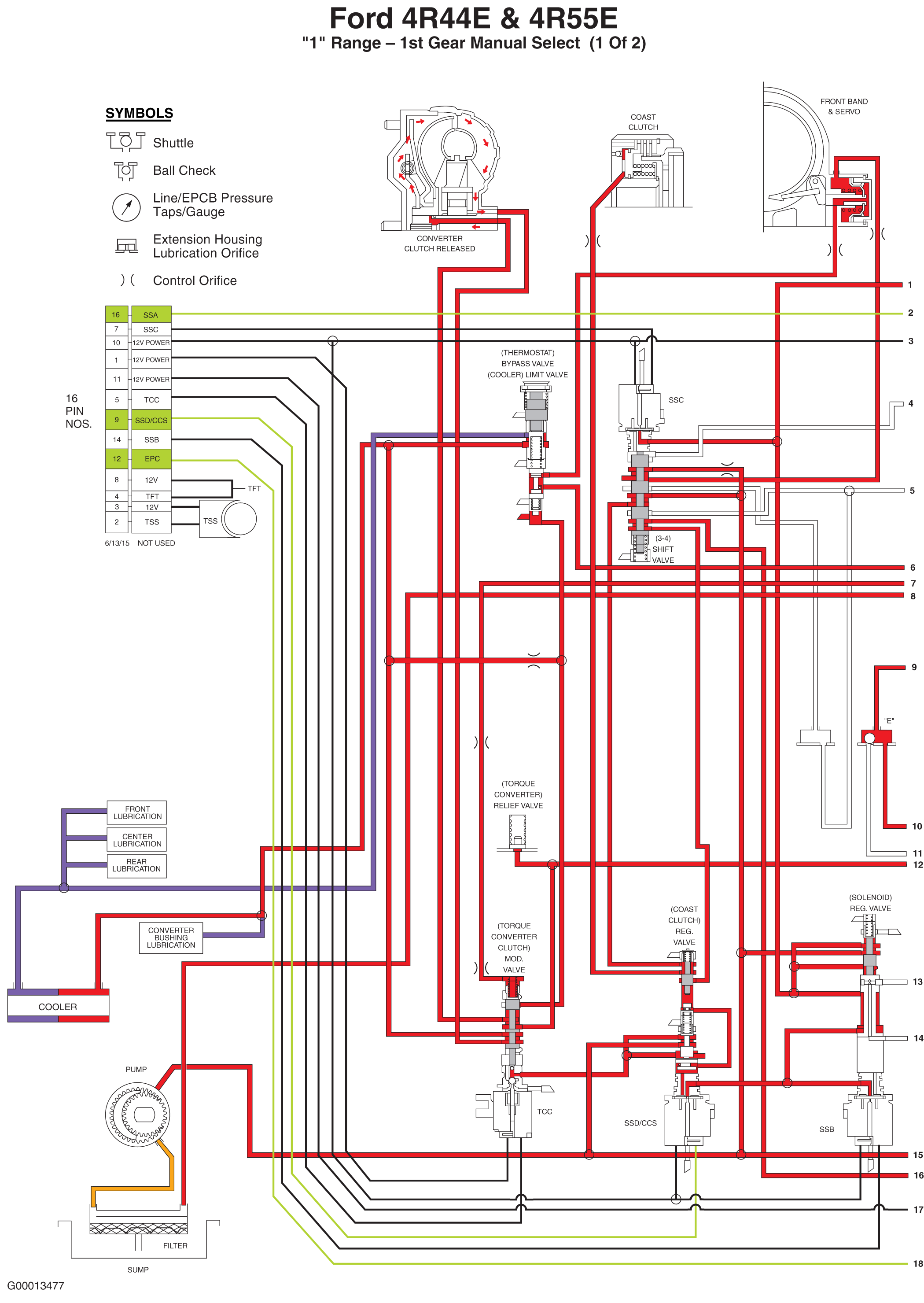

Fig 15: "1" Position - Manual Select (1 Of 2)

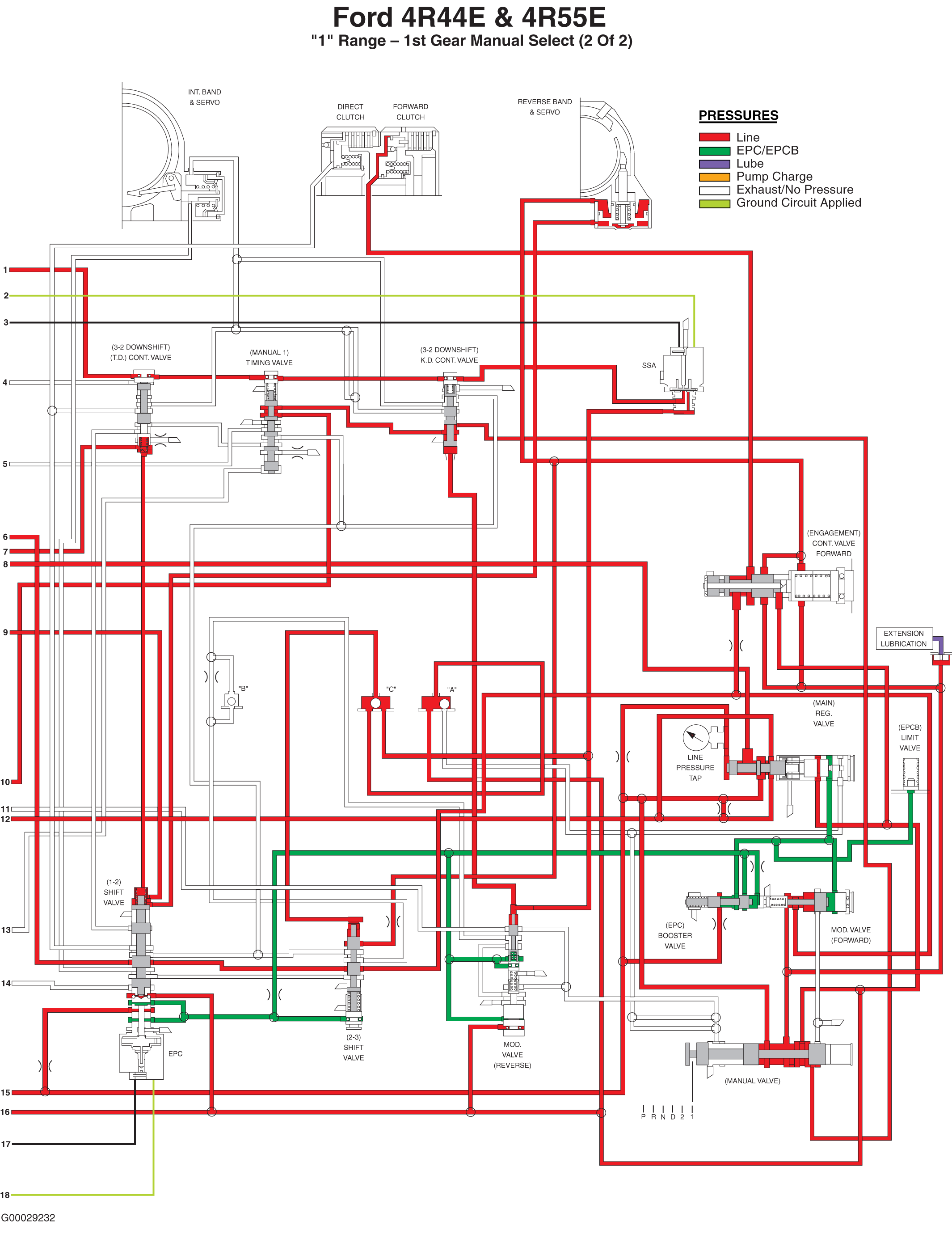

Fig 16: "1" Position - Manual Select (2 Of 2)
