Master Cylinder Push Rod: Millenia

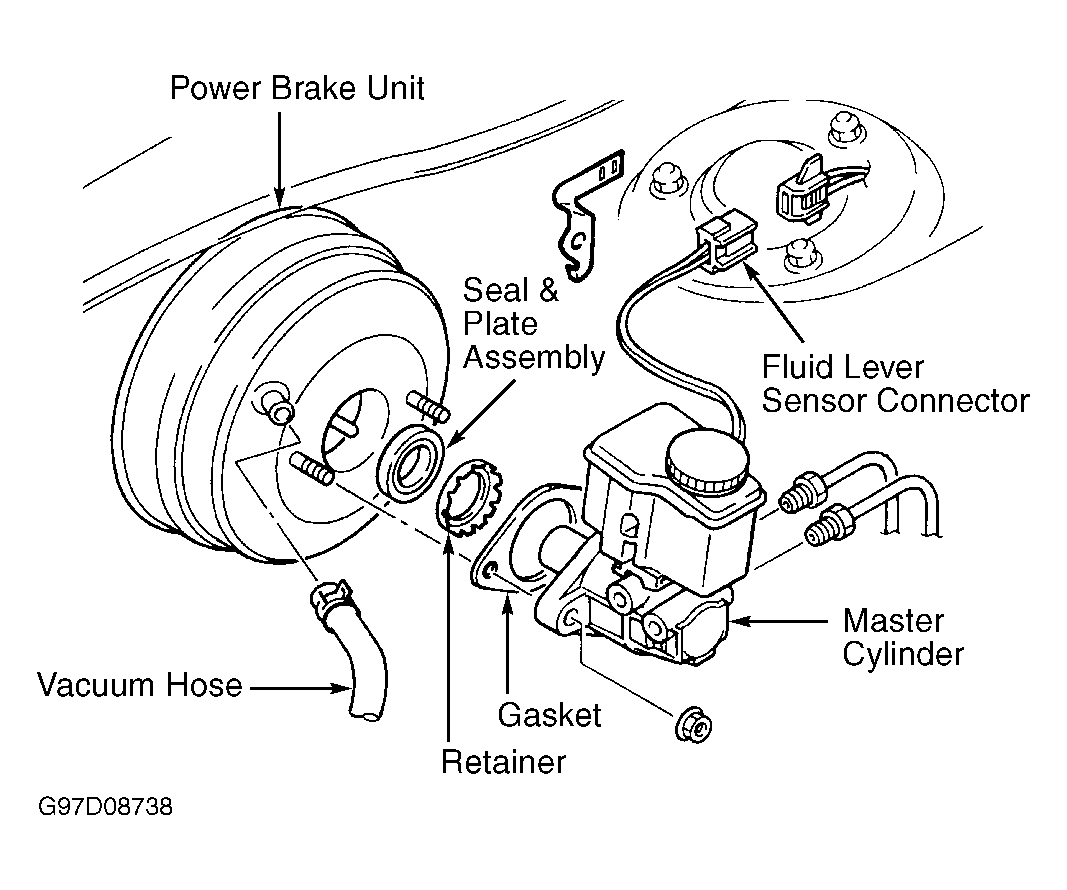

- With master cylinder removed, remove seal and plate assembly from power brake unit. See Fig 1. Install power brake unit gasket. Place Adjustment Gauge (49-E043-001A
) onto power brake unit and tighten mounting nuts to 87-138 INCH lbs. (9.8-15.6 N.m).

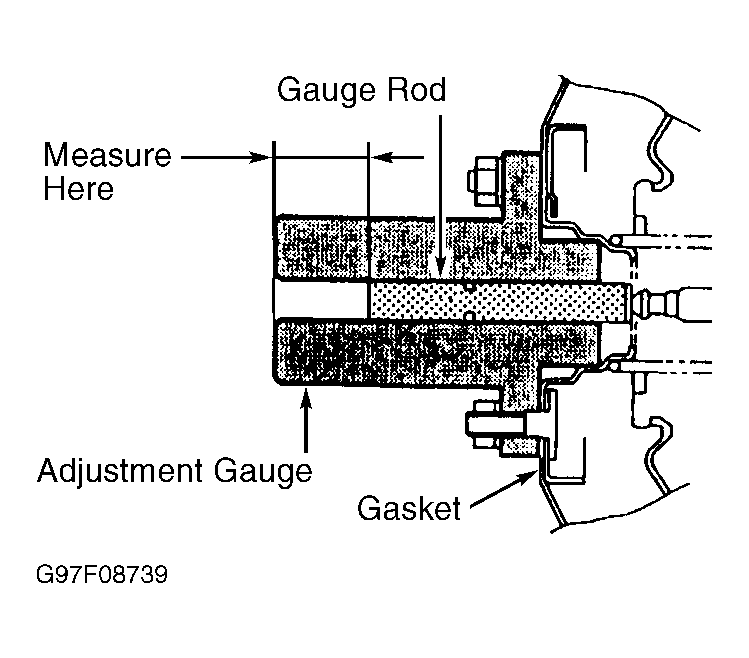

- Apply 19.7 in. Hg to power brake unit. Measure depth of adjustment gauge rod. See Fig 2. Rod depth should be 1.38" (35.1 mm). If rod depth is as specified, no adjustment is necessary. If gauge rod depth is not as specified, using Rod Holder (49-E043-003
) and Socket (49-E043-004
), adjust power brake push rod as necessary to obtain rod depth of 1.38" (35.1 mm).
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
