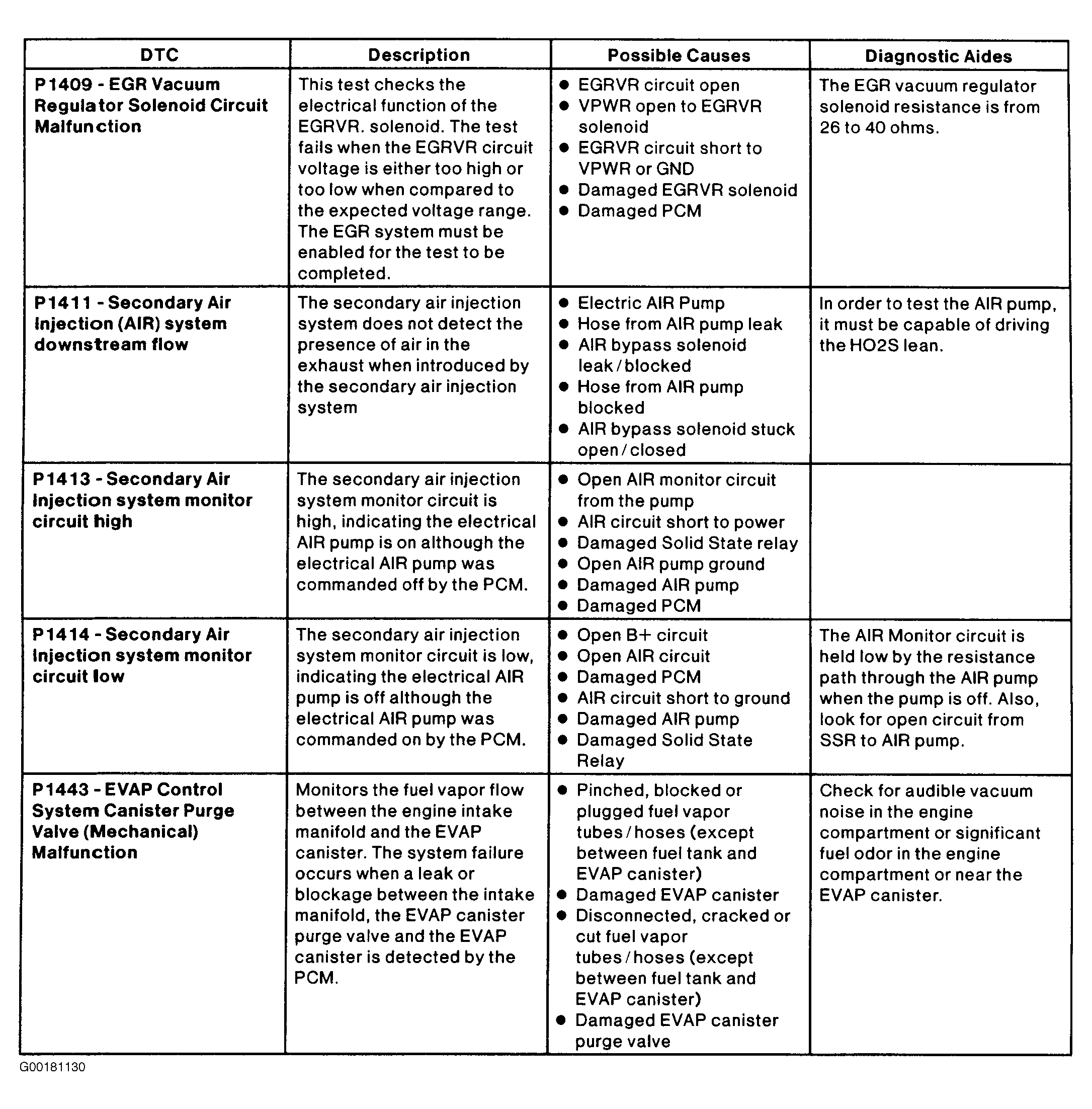

Diagnostic Trouble Code (DTC) Descriptions
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 1999 Mercury Tracer, 1999 Mercury Sable, 1999 Mercury Mystique, 1999 Mercury Mountaineer, and 1999 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to performing any system test, see HOW TO USE SYSTEM TESTS under SYSTEM TESTS. On some models, PCM is capable of storing some body DTCs. If any "B" DTCs are retrieved (example DTC B1213), perform appropriate test. See DIAGNOSTIC TROUBLE CODE (DTC) DEFINITIONS in appropriate MODULE COMMUNICATIONS NETWORK article in ACCESSORIES & EQUIPMENT to determine test to perform. If instructed to replace Powertrain Control Module (PCM) after performing a system test, new PCM must be programmed. See PROGRAMMING PCM .
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
