Removal & Installation (MPV)

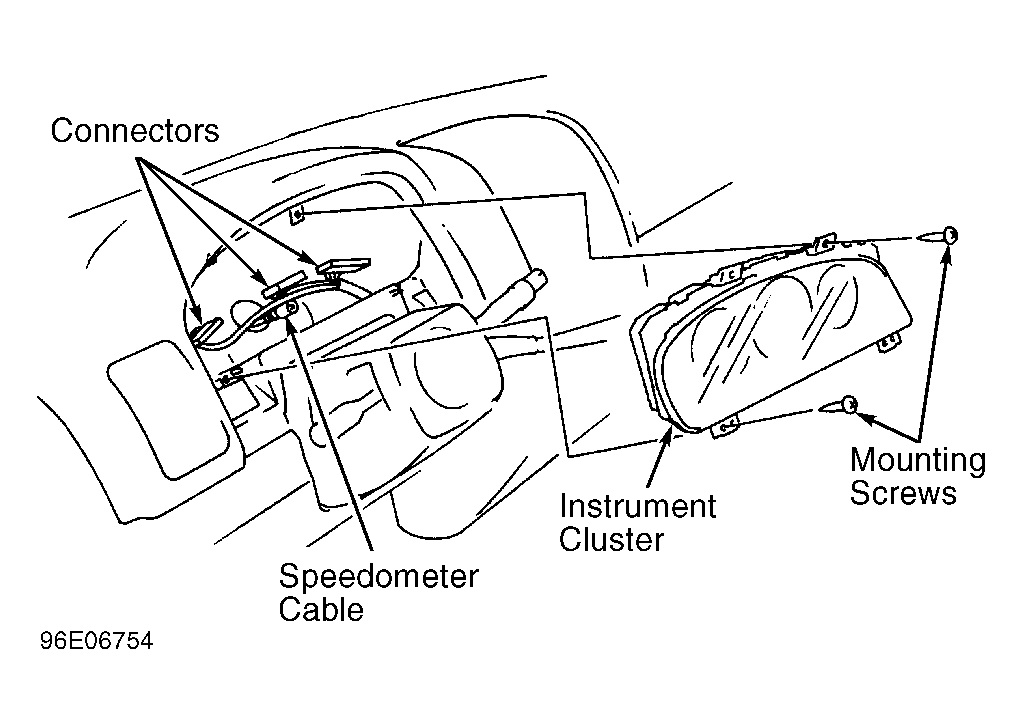

Shift gear selector lever to "L" position. Disconnect negative battery cable. Remove meter hood. Remove instrument cluster mounting screws. See Figure . Disconnect instrument cluster electrical connectors and speedometer cable. Remove instrument cluster. To install, reverse removal procedure.
