Removal & Installation (MPV)

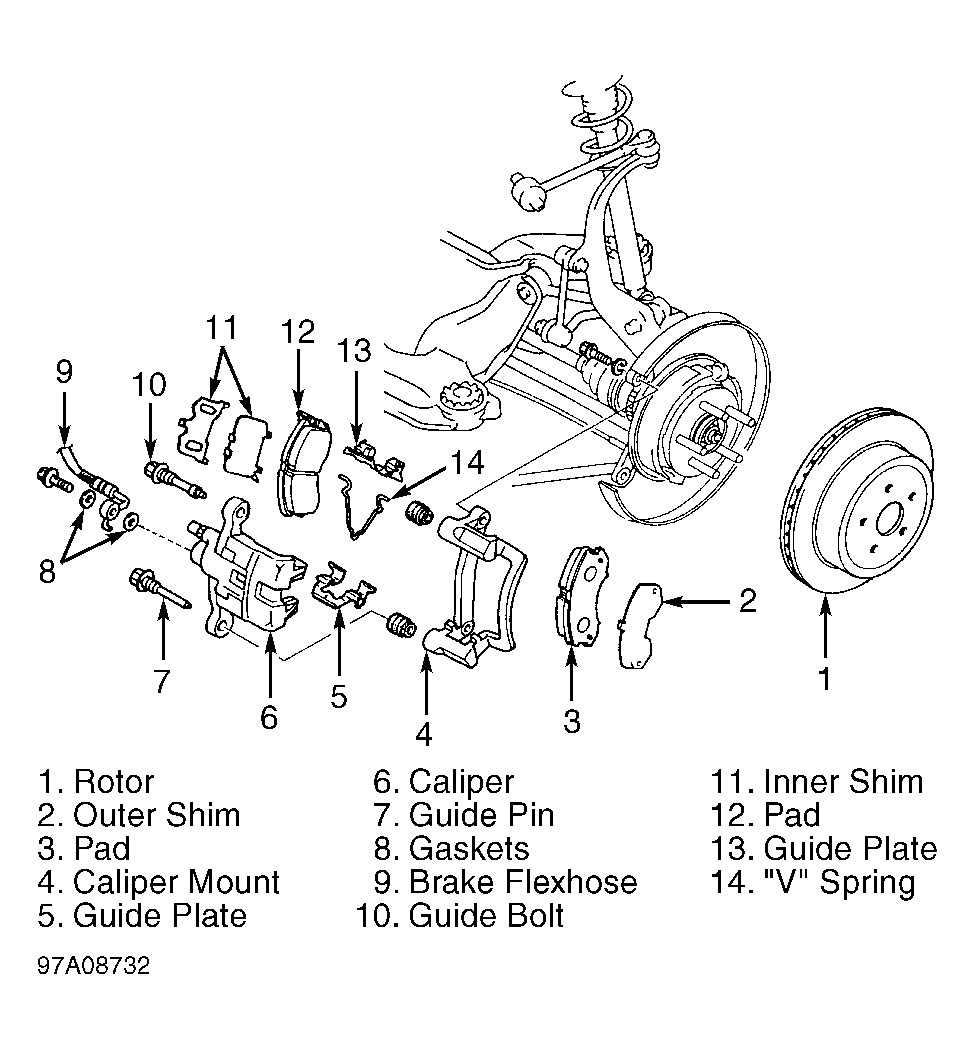

- Raise and support rear of vehicle. Remove rear wheel assemblies. Remove upper guide bolt from caliper. See Fig 1. Rotate caliper downward and support using wire. Remove "V" spring. Remove pads, shims and guide plates. Replace pad if lining thickness is less than 0.04" (1.0 mm).
- To install, reverse removal procedure. Use Disc Brake Expander (49-022 1-600C) and an old pad to push piston fully inward to install disc pads.
