Removal & Installation

Disconnect negative battery cable. Remove meter hood. SeeFig 1 . Remove instrument cluster mounting screws. Disconnect in strument cluster electrical connectors. Remove instrument cluster. To install, reverse removal procedure.

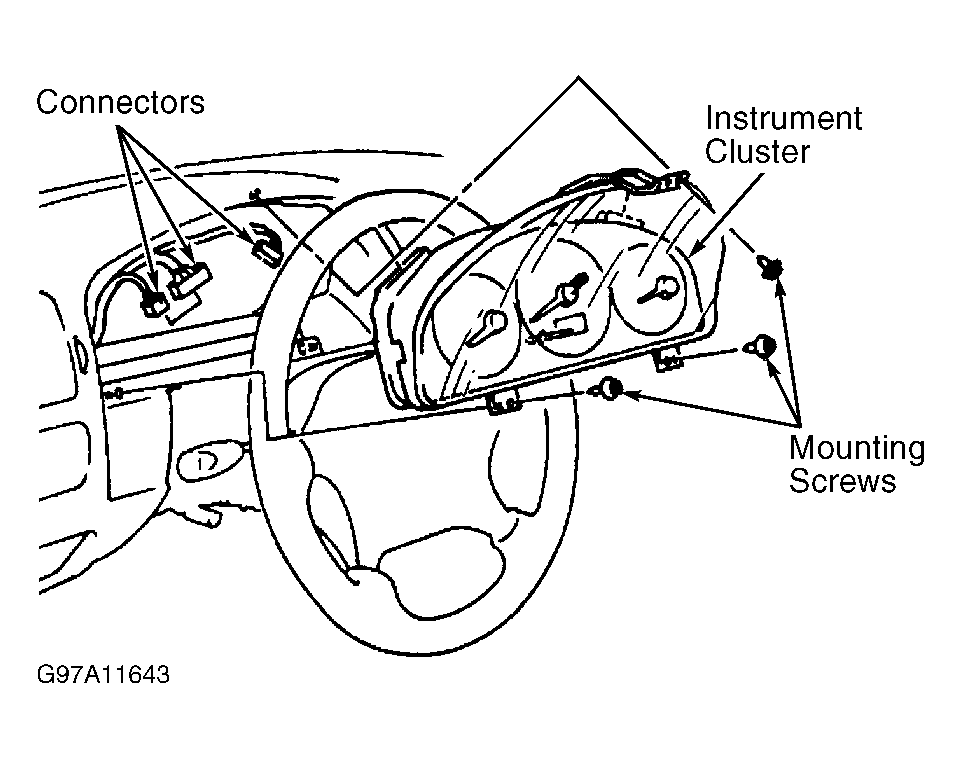

Fig 1: Removing Instrument Cluster
G97A11643Courtesy of MAZDA MOTORS CORP.
Fig 2: Exploded View Of Instrument Cluster
G97D11646Courtesy of MAZDA MOTORS CORP.
