Torque Specifications

TORQUE SPECIFICATIONS

Application	Specification
Steering Wheel Nut	29-36 Ft. Lbs. (39-49 N.m)
Air Bag Module Bolts	70-104 INCH Lbs. (8-12 N.m)

Fig 1: Testing Hazard Switch Continuity

G93I84283

Courtesy of MAZDA MOTORS CORP.

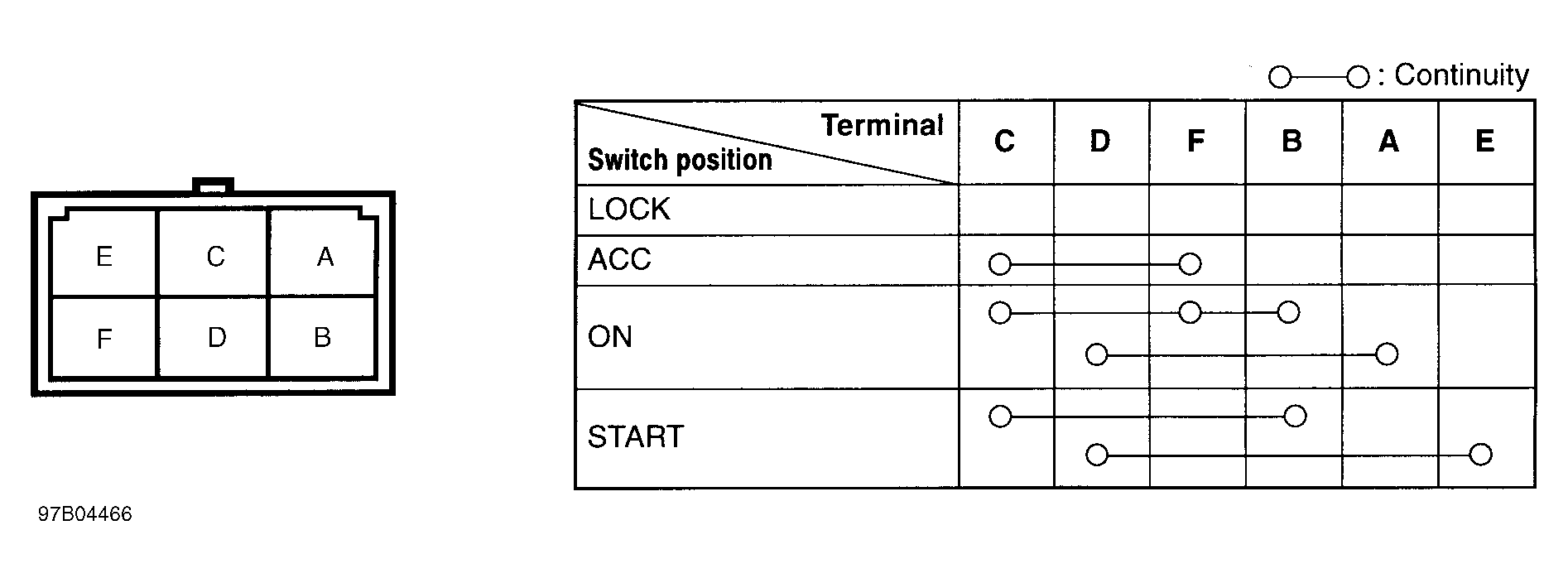

Fig 2: Testing Ignition Switch Continuity

G97B04466

Courtesy of MAZDA MOTORS CORP.

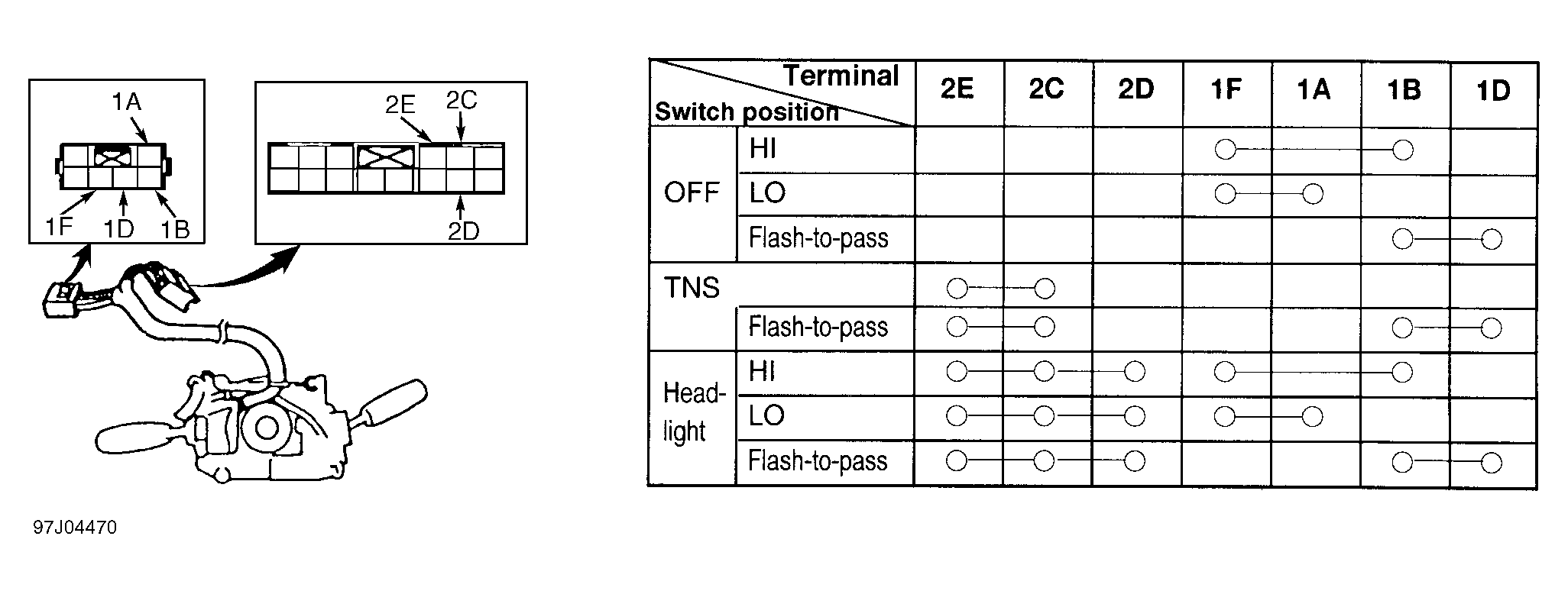

Fig 3: Testing Lights, Dimmer & Flash-To-Pass Switch Continuity

G97J04470

Courtesy of MAZDA MOTORS CORP.

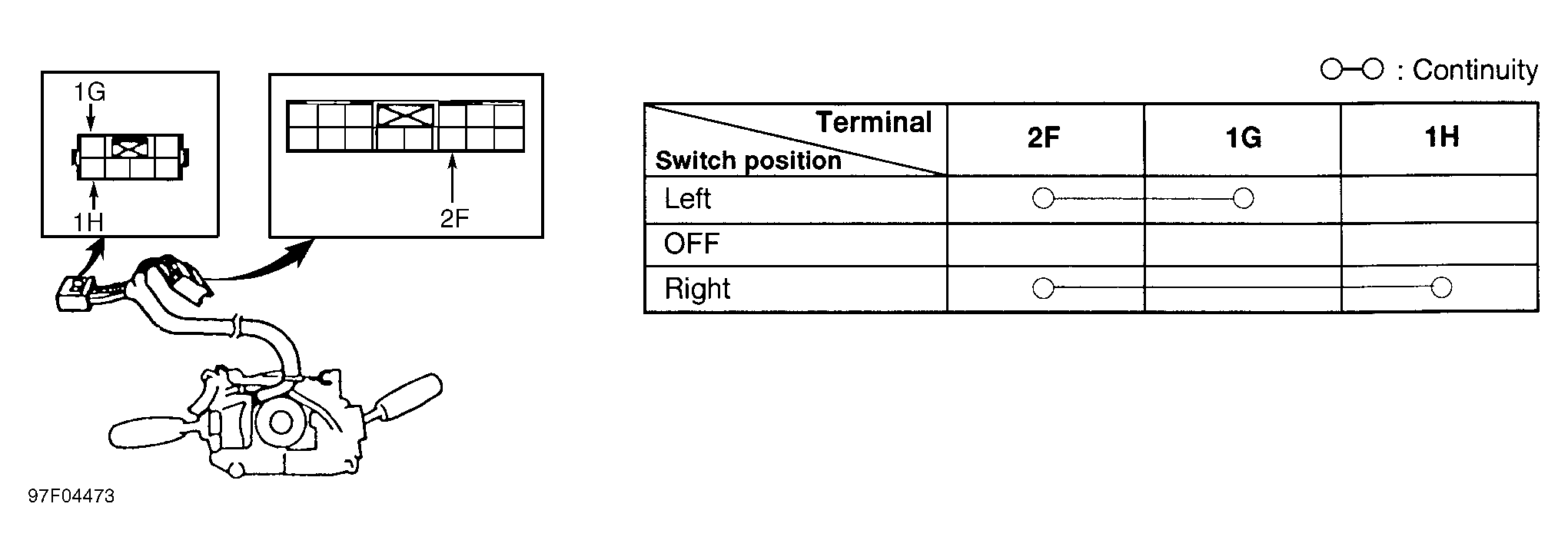

Fig 4: Testing Turn Signal Switch Continuity

G97F04473

Courtesy of MAZDA MOTORS CORP.

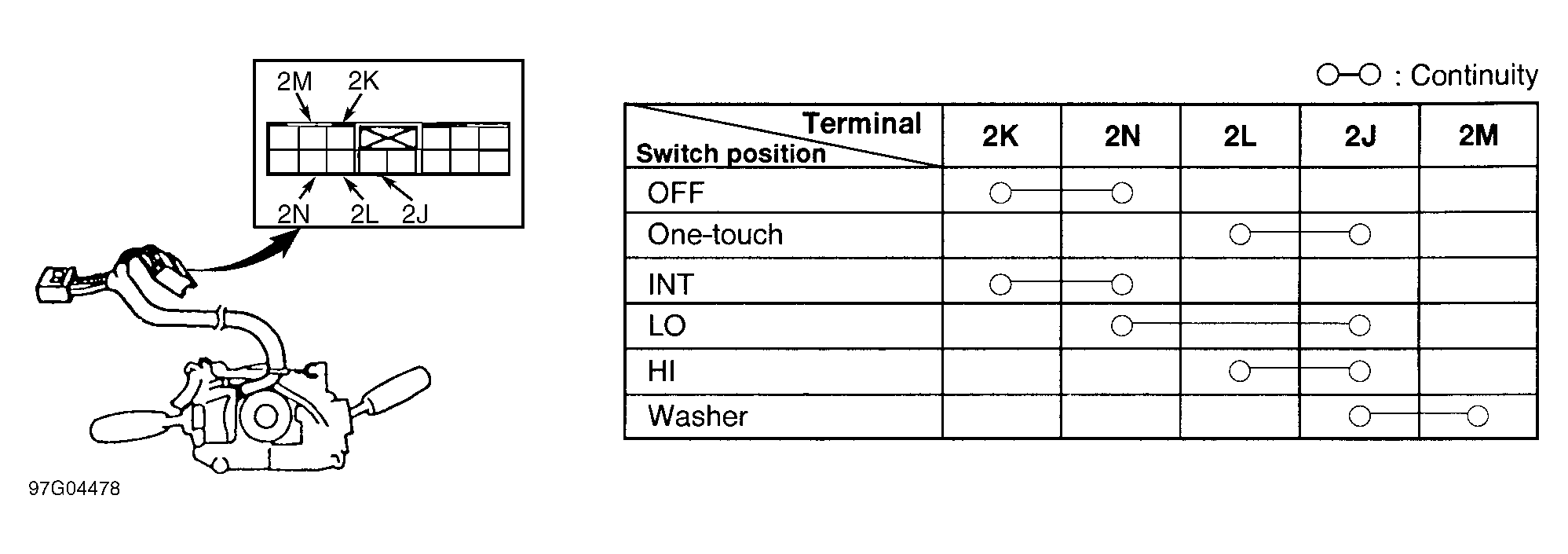

Fig 5: Testing Wiper/Washer Switch Continuity

G97G04478

Courtesy of MAZDA MOTORS CORP.

Fig 6: Removing Combination Switch (Typical)

G97C04481

Courtesy of MAZDA MOTORS CORP.
