Removal & Disassembly (Drum Brake Model)

1. Raise and support vehicle. Remove wheel assembly. Remove ABS wheel speed sensor. Remove hub cap. Remove brake drum. Remove wheel hub component. See Fig 2.
2. Remove ABS sensor rotor. Remove hub bolt and wheel hub. Remove parking brake cable and brake pipe. Remove drum brake component. Remove hub spindle.

Fig 1: Exploded View Of Wheel Hub & Spindle (Disc Brake - 626 Shown; Protege Similar)

Courtesy of MAZDA MOTORS CORP.

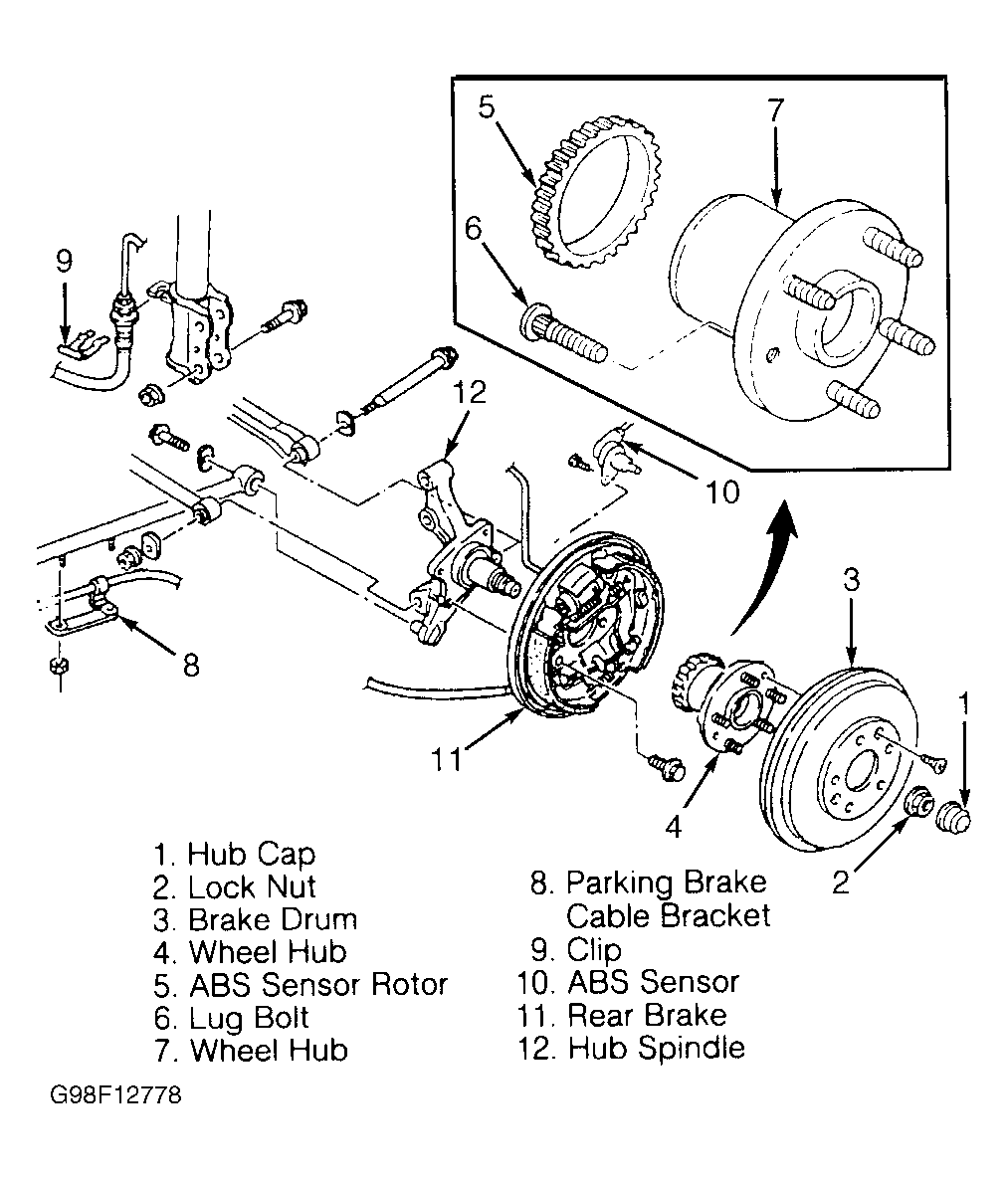

Fig 2: Exploded View Of Wheel Hub & Spindle (Drum Brake - 626 Shown; Protege Similar)

Courtesy of MAZDA MOTORS CORP.
