Passenger-Side Air Bag

  1. Before deploying air bag, inspect operating condition of Deployment Tool (49 H066 002). See INSPECTING DEPLOYMENT TOOL  . Ensure vehicle is outside and away from other vehicles and people. Open doors. Disconnect negative battery cable.
  2. Remove glove box. Disconnect Orange and Blue passenger-side air bag module connectors. See Fig 1 . Connect deployment tool connector "A" to Orange and Blue passenger-side air bag connector. See Figure . Connect Red deployment tool clip to battery positive terminal. Connect Black deployment tool clip to battery negative terminal. Verify deployment tool Red light is on.

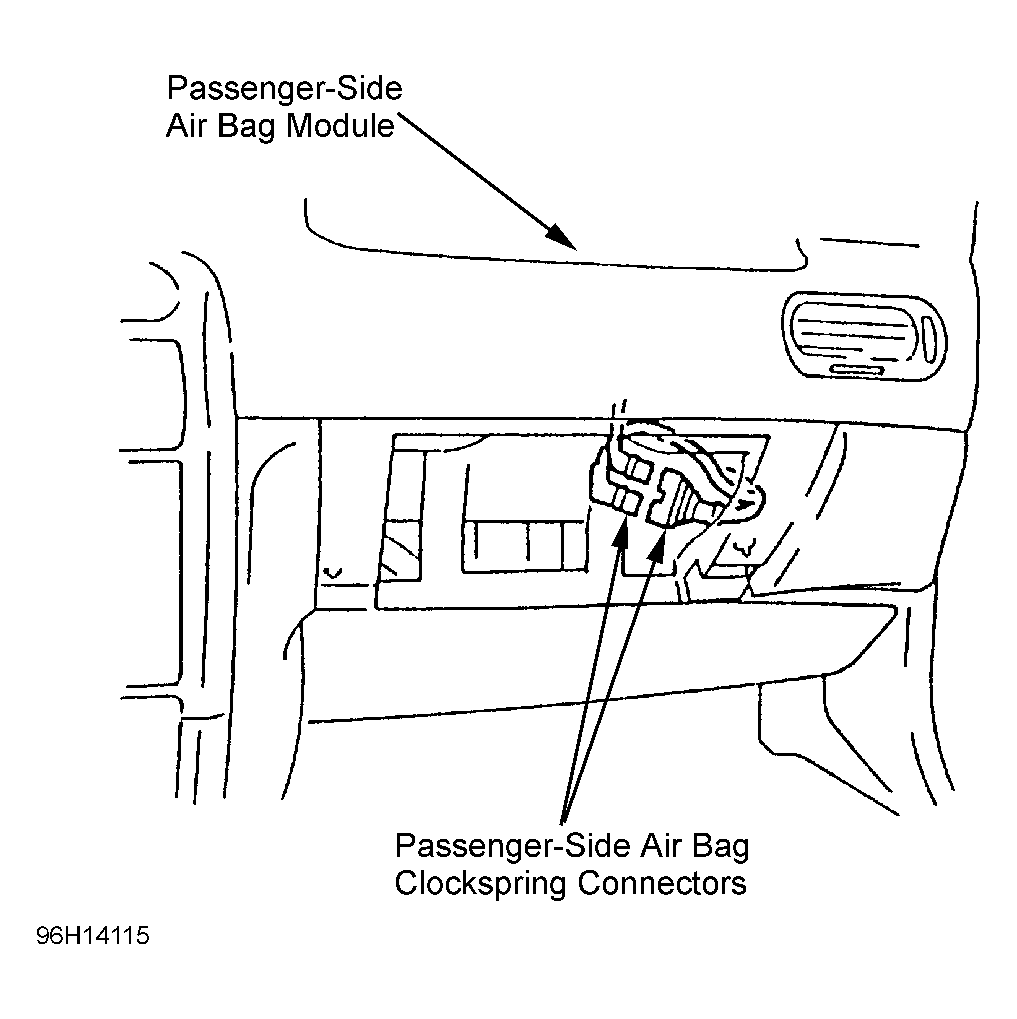

    Fig 1: Locating Passenger-Side Air Bag Connectors
    G96H14115Courtesy of MAZDA MOTORS CORP.

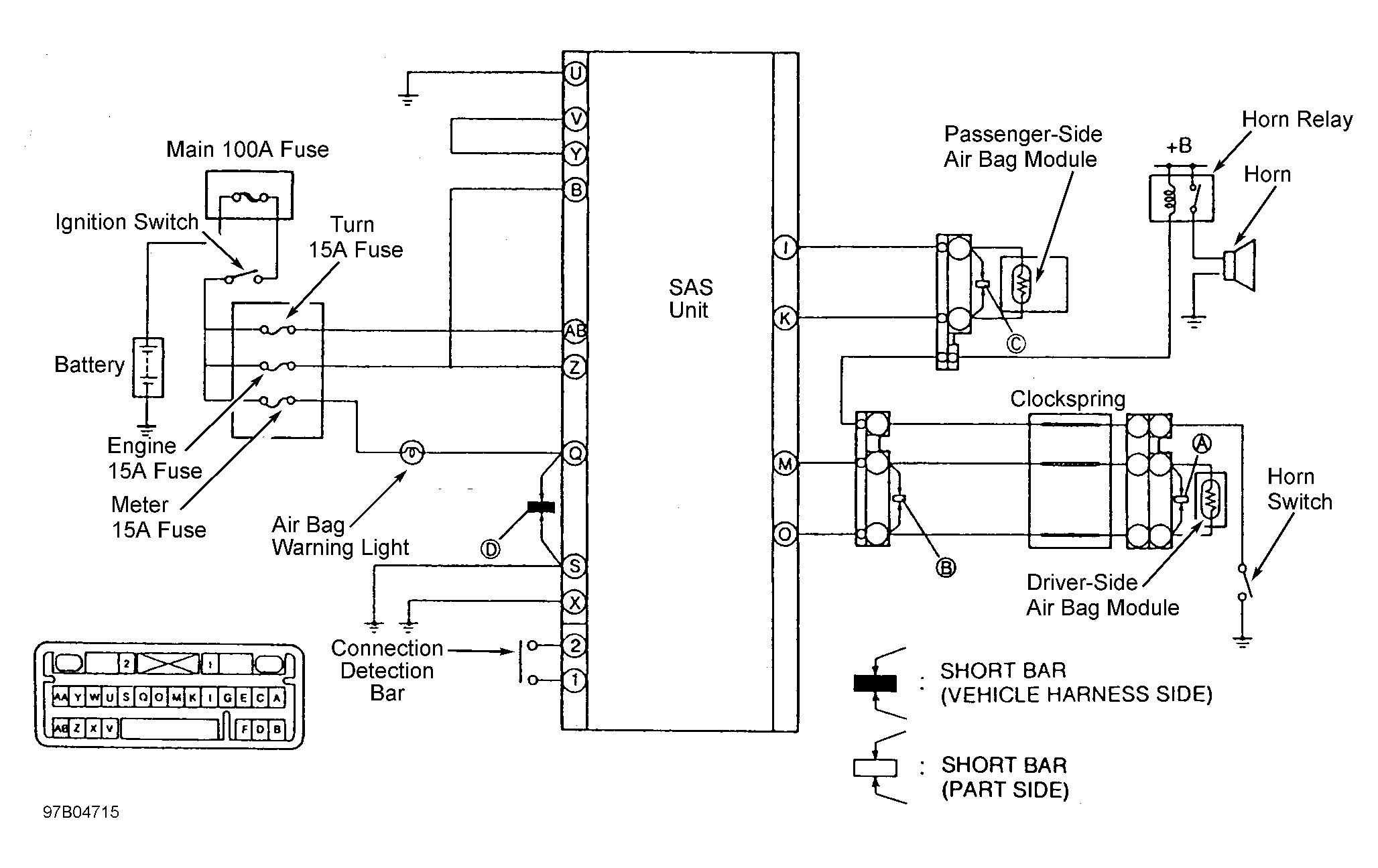

    Fig 2: Identifying SRS Connectors & Short Bars
    G97B04715Courtesy of MAZDA MOTORS CORP.
  3. Ensure all persons are at least 20 feet from vehicle. Press deployment tool activation switch to deploy air bag. Because of heat generated from air bag deployment, wait at least 15 minutes before handling deployed air bag module.
