Discharge Valve & Shaft Seal: Installation

To install components, reverse removal procedure. Tighten compressor through-bolts to 19 ft. lbs. (26 N.m). Tighten discharge valve bolts to 41 INCH lbs. (4.6 N.m). Tighten discharge valve body and body through-bolts to 96 INCH lbs. (10.8 N.m).

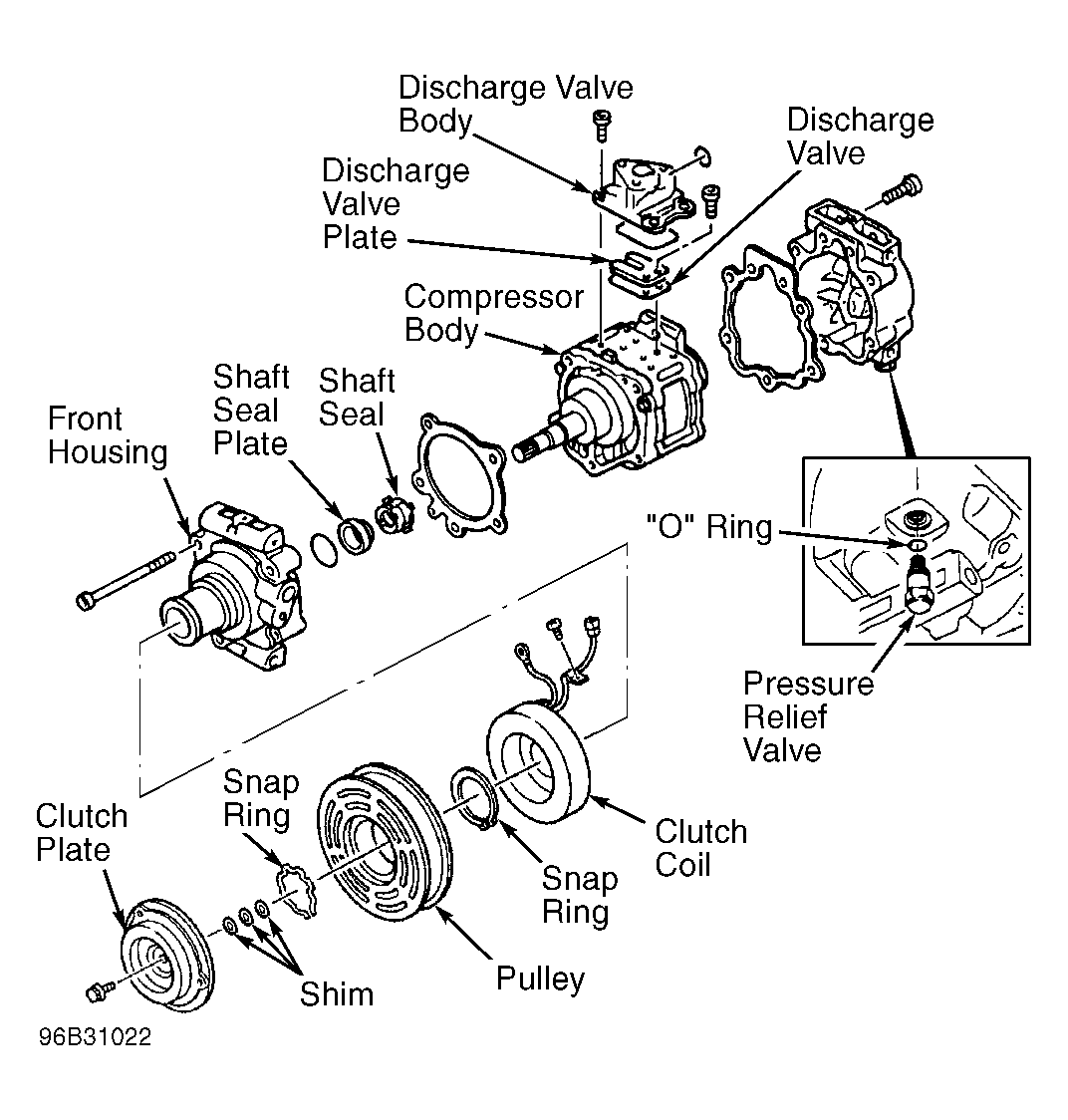

Fig 1: Exploded View Of Compressor (Nippondenso Rotary Vane)
G96B31022Courtesy of MAZDA MOTORS CORP.
